Description

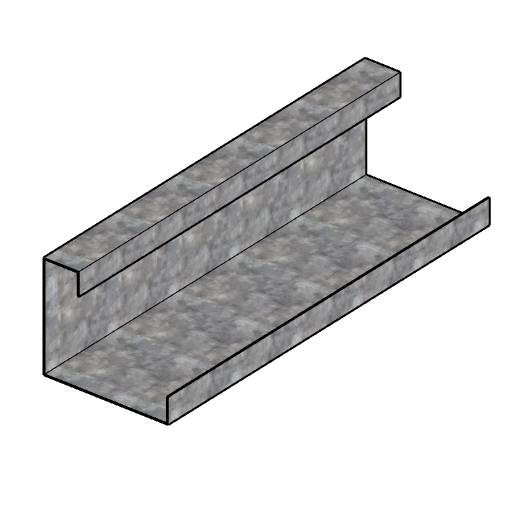

Single, wide flanged profile to support horizontal cladding panels at joint positions, where minimum bearing width would otherwise require a compound solution. The PJR section is designed to fit similar depth Zed and CW sections using inset cleats, to give an effective and flush face to fix the cladding panels.

Maximum length available: 12.0 metres, but logistics need to be taken into account for delivery and on site.

General information
Material

Hot dipped zinc coated steel

Uniclass 2015
Cold-formed galvanized steel sections (Pr_20_76_51_21)Primary
Specification data - Cold-formed galvanized steel sections
Product Reference

PJR140

140 mm deep, 1.8 mm thick.

PJR155

155 mm deep, 1.8 mm thick.

PJR170

170 mm deep, 1.8 mm thick.

PJR185

185 mm deep, 1.8 mm thick.

PJR200

200 mm deep, 1.8 mm thick.

Cleats -
Top

HC1T

PJR140.

HC2T

PJR140.

HC3T

PJR140.

HC4T

PJR140.

HC5T

PJR140.

HC6T

PJR140.

HC8

PJR155.

HC9

PJR170, PJR185 or PJR200.

Bottom

HC1B

PJR140.

HC2B

PJR140.

HC3B

PJR140.

HC4B

PJR140.

HC5B

PJR140.

HC6B

PJR140.

HC8

PJR155.

HC9

PJR170, PJR185 or PJR200.

Standard product features

Material:

- Vertical rails ref. PJR:

Manufactured from galvanized steel S450GD + Z275, with minimum guaranteed yield strength of 450 N/mm².

- Cleats:

Made from grade S390GD+Z275 -N-A-C zinc coated steel.

Product Options

  • PJR's are made to ordered length.
  • 14 mm dia. holes punched at each end to match cleat connection.
