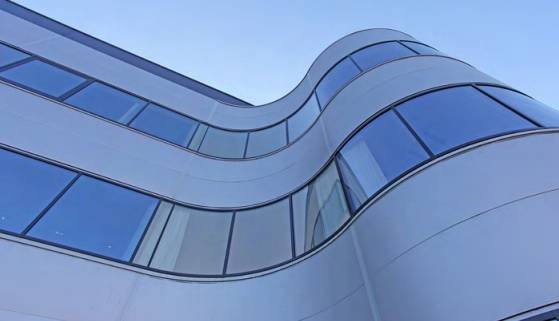

Ostman Brucha FP-P Panel
Application

For use as facade panelling.

Description

Steel facade cladding panels with a polyisocyanurate (PIR) core, available in six external profile types.

Features and benefits:

  • Includes concealed mounting.
  • Polyvinyl chloride (PVC) coating to the interior and exterior panels protects against solar radiation.
  • CE marked.

Applications:

For use as facade panelling.

General information
Material

External facing: 0.6 mm thick, coil-coated, hot-dip galvanized steel sheet, with a coating as specified and a PVC protective film

Internal facing: 0.5 mm thick, coil-coated, hot-dip galvanized steel sheet, with a 25 μm thick polyester coating and a PVC protective film

Core: Polyisocyanurate (PIR)/ polyurethane rigid foam manufactured in a continuously foamed process. Approximately 95% closed cells, securely attached to the steel sheet. No chlorofluorocarbons (CFCs) or halogenated chlorofluorocarbons due to the pentane foam process

Uniclass 2015
Pr_25_71_14_22 Carbon steel insulating sandwich panelsPrimary
CAWS

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

Specification data - Carbon steel insulating sandwich panels
Product Reference

Ostman Brucha FP-P Panel

Profile -
External -
Type

Profile 1

50 mm pitch, 2 mm depth.

Profile 2

Special order, flat panel.

Profile 3

Special order, 122 mm pitch, 2 mm depth.

Profile 4

30 mm pitch, 2 mm depth.

Profile 5

61 mm pitch, 2 mm depth.

Profile 6

Standard, 15 mm pitch, 2 mm depth.

External gauge

Standard, 0.6 mm

Special order

Smaller metal gauge, consult manufacturer for details.

Finish

25 μm thick polyester coating

Standard.

25 μm PVDF coating

50 μm PUR coating

Corten

Stainless steel

Internal -
Type

Profile 1

Standard, 50 mm pitch, 2 mm depth.

Profile 2

Special order, flat panel.

Profile 3

Special order, 122 mm pitch, 2 mm depth.

Gauge

Standard, 0.5 mm

Special order

Smaller metal gauge, consult manufacturer for details.

Size -
Width

900 mm

Special order.

1000 mm

Standard.

Length

Insert requirement, available up to 16 m.

Core thickness

80 mm (FP-P80)

Thermal transmittance/ U-value (to BS EN 14509): 0.288 W/m²K; weight: 13.8 kg/m².

100 mm (FP-P100)

Thermal transmittance/ U-value (to BS EN 14509): 0.225 W/m²K; weight: 14.6 kg/m².

120 mm (FP-P120)

Thermal transmittance/ U-value (to BS EN 14509): 0.186 W/m²K; weight: 15.4 kg/m².

140 mm (FP-P140)

Thermal transmittance/ U-value (to BS EN 14509): 0.159 W/m²K; weight: 16.2 kg/m².

160 mm (FP-P160)

Thermal transmittance/ U-value (to BS EN 14509): 0.138 W/m²K; weight: 17 kg/m².

180 mm (FP-P180)

Thermal transmittance/ U-value (to BS EN 14509): 0.124 W/m²K; weight: 17.8 kg/m².

200 mm (FP-P200)

Thermal transmittance/ U-value (to BS EN 14509): 0.111 W/m²K; weight: 18.6 kg/m².

Colour

Insert requirement from the BASIC colour range, consult manufacturer's literature for information.

Standard product features

Material:

  • External facing: 0.6 mm thick, coil-coated, hot-dip galvanized steel sheet, with a coating as specified and a PVC protective film.
  • Internal facing: 0.5 mm thick, coil-coated, hot-dip galvanized steel sheet, with a 25 μm thick polyester coating and a PVC protective film.
  • Core: Polyisocyanurate (PIR)/ polyurethane rigid foam manufactured in a continuously foamed process. Approximately 95% closed cells, securely attached to the steel sheet. No chlorofluorocarbons (CFCs) or halogenated chlorofluorocarbons due to the pentane foam process.

Panel connection:

Double tongue and groove system in which the labyrinth profile allows the screw head to be countersunk and fully covered by the next panel, providing a covered, concealed mounting. The integrated seals ensure maximum wind proofing. The panels interlink precisely with no thermal bridge. The panel offers outstanding structural characteristics, as well as enabling even greater span widths via the pressure distribution plate.

Technical characteristics:

  • Thermal conductivity (core): 0.019 W/m·K,
  • Density (core): 40 kg/m³.
  • Fire behaviour (to BS EN 13501-1): Euroclass B-s1, d0.
  • Manufacturing tolerances: In accordance with BS EN 14509.
  • Sound insulation: 80 mm thick core: 26 dB; ˃100 mm thick core: 27 dB.
  • Temperature resistance: 90°C.

Third party certifications
  • Cradle to Cradle : Bronze certified
  • FM Global : Approved
  • UL : Classified
