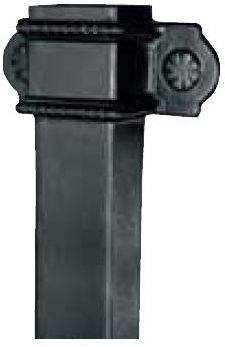

Ornamental Rectangular/ Square GRP Rainwater Pipes
Pipes, fittings and clips are manufactured from glass fibre laminations fully impregnated with Lloyds approved resins. Decorative ears.
Description
Special formulations of laminate provide the desired strength and rigidity. Non standard sizes and sections are available to order.
General information
CAWS | R10/410 GRP pipework |
Specification data
Product Reference | Ornamental Rectangular/ Square GRP Rainwater Pipes |
System colour | Through coloured in blackManufacturer's standard. BS 5252 colourInsert colour. RAL colourInsert colour. |
Pipes | - |
Size | 65 x 65 mm100 x 75 mm125 x 100 mm150 x 100 mmAs drawing |
Length | 900 mm1800 mmAs drawingContractor's choice |
Fittings | - |
Offsets | Not requiredPlinth offset; projectionInsert detail. Side offset; projectionInsert detail. Top offset; projectionInsert detail. As drawing |
Bends | Not requiredBack bendFront bendSide bend, left handSide bend, right handAs drawing |
Branches | Not requiredBack branchFront branchSide branch, left handSide branch, right handAs drawing |
Shoes | Not requiredRequiredAs drawing |
Clips, connectors and sockets | Loose clipLoose socketRectangular to round connectorSquare to round connectorAs drawing |
Hoppers | Not requiredMoulded from existing sampleAs drawingGive details of coats of arms, dates or embellishments as required. |
Product Options | Fittings: - Hoppers: There are 38 standard designs available and these can be further enhanced by adding coats of arms, dates or embellishments. The hoppers are through coloured in black as standard or can be ordered in any colour required. Should none of the standard designs meet the desired criteria then Yeoman can manufacture to individual requirements, or match an existing hopper by moulding from an existing sample. Consult manufacturer for details. |
