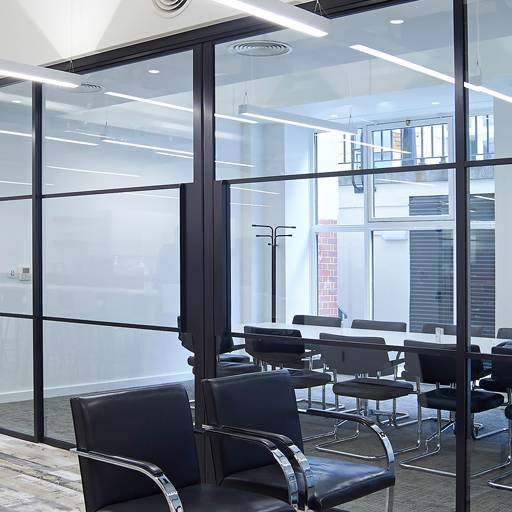

Optima 117 Plus Shoreditch Single Glazed Partition

Description

Single-glazed partition system with minimal head and base channels and discreet glass-to-glass dry joints, which create the illusion of vast areas of unsupported glass. Shoreditch Edition is an enhanced version of the standard Optima 117 Plus system and features slimline aluminium framework. Compatible with Edge Symmetry doors.

General information

Uniclass 2015

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Product range

Partitions

Specification data - Partition panels

Product Reference

Optima 117 Plus Shoreditch Single Glazed Partition

StrengthGrade

-

Duty rating (to BS 5234-2)

Congested office space – 0.74 kN/m line load

Public access space – 0.74 kN/m line load

Public access space – 1.50 kN/m line load

Uncongested office space - 0.36 kN/m line load

Maximum allowable deflection under the line load

L/65 or 50 mm

Whichever is least.

L/120 or 25 mm

Whichever is least.

Partition height

Insert floor to ceiling requirement, available up to 3000 mm.

Finish/ Colour

Anodized

25 microns thickness.

Grained, brightened and protective anodized

Polished, brightened and protective anodized

Powder-coated, RAL

Insert requirement; contact manufacturer for more information.

Powder-coated, RAL 9006 Silver

50 microns, 30% gloss (nominal).

Powder-coated, RAL 9010 White

50 microns, 30% gloss (nominal).

Glazing

-

Type

10 mm toughened glass

32 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

10.8 mm acoustic laminate glass

37 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

10.8 mm laminate glass

35 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

12 mm toughened glass

33 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

12.8 mm acoustic laminate glass

38 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

12.8 mm laminate glass

36 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

16.8 mm acoustic laminate glass

40 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

Manifestation

Insert requirements.

Junctions/ corners

117128-01

Nebula™ dry butt-joint.

117128-02

SA aluminium dry butt-joint.

117128-03

Ghost dry butt-joint.

117128-04

Taped dry butt-joint.

117128-05

90° mitred taped dry corner joint.

117128-06

SA aluminium dry corner joint.

117128-07

Ghost dry corner joint.

117128-08

90° taped dry corner joint.

117129-01

Taped three-way to plain glass.

117129-02

Taped three-way to Nebula joint.

117129-03

Taped three-way to SA Aluminium joint.

117129-04

SA Aluminium three-way joint.

117129-05

Ghost three-way joint.

Partition abutments

-

Head detail

Insert requirements from 'Options' below.

Floor detail

117108-01

50 x 25 mm (d x w) with clip-on bead.

117108-02

25 x 25 mm (d x w) with clip-on bead.

117108-03

12 mm deep back-to-back angles with silicone seal.

117109-01

50 x 36 mm (d x w) with clip-on bead.

117109-02

25 x 36 mm (d x w) with clip-on bead.

117110-01

50 x 40 mm (d x w) with clip-on bead.

117110-02

25 x 40 mm (d x w) with clip-on bead.

117110-03

12 mm deep back-to-back angles with silicone seal.

Wall detail

Insert requirements from 'Options' below.

Doorsets

-

Frame

Integral Microflush D250 aluminium door frame with 50 mm face and leaf set

Integral Microflush D350 aluminium door frame with 50 mm face and leaf set

Leaf

EDGE Symmetry double-glazed leaf on offset pivots/ hinges

41 dB (Rw).

EDGE Symmetry single-glazed leaf on offset pivots/hinges

35 dB (Rw).

Manifestation

Insert requirements.

Locking

Insert requirements; contact manufacturer for information.

Trims

Insert requirements from Shoreditch Edition® Designer’s Guide.

Cable management/ Outlets

-

Tech panels

117122-01

Metal-faced with hinged access door (colour to match rest of system).

117122-02

Timber with hinged access door (insert veneer surface finish).

117122-03

Back-painted glass with hinged access door (insert back-paint colour).

117122-04

Back-painted glass with Nebula™ interface to screen (insert back-paint colour).

Access door locking

Not applicable

Magnetic latch

Secure near-field electronic latch

Sustainability requirements

Not required

BREEAM 'A' rating

SKA Good Practice Measure M09-compliant

Accessories

Insert requirements; contact manufacturer for more information.

Standard product features

Framing:

Aluminium extruded track sections.

Product Options

Glazing:

Glazing is full height, dry jointed and dry glazed.

Partition abutments:

- Head detail:

  • 117102-01 – 90 mm deep (±25 mm deflection – internal).
  • 117102-02 – Door head.
  • 117102-03 – 94 mm deep (±25 mm deflection – external).
  • 117102-04 – Door head.
  • 117103-01 – 135 mm deep (±40 mm deflection – internal).
  • 117103-02 – Door head.
  • 117103-03 – 140 mm deep (±40 mm deflection – external).
  • 117103-04 – Door head.
  • 117104-01 – 90 mm deep (±25 mm deflection – internal) to suit 16.8 mm glass.
  • 117104-02 – Door head.
  • 117104-03 – 135 mm deep (±40 mm deflection – internal) to suit 16.8 mm glass.
  • 117104-04 – Door head.
  • 117105-01 – 50 x 25 mm (d x w) (no deflection).
  • 117105-02 – 25x 25 mm (d x w) (no deflection).
  • 117105-03 – Door head.
  • 117106-01 – 50 x 36 mm (d x w) (no deflection).
  • 117106-02 – 25 x 36 mm (d x w) (no deflection).
  • 117106-03 – Door head.
  • 117107-01 – 50 x 40 mm (d x w) (no deflection).
  • 117107-02 – 25 x 40 mm (d x w) (no deflection).
  • 117107-03 – Door head.

- Wall detail:

  • 117111-01 – 50 x 25 mm (d x w).
  • 117111-02 – 25 x 25 mm (d x w).
  • 117112-01 – 50 x 25 mm (d x w) with clip-on bead.
  • 117112-02 – 25 x 25 mm (d x w) with clip-on bead.
  • 117113-01 – 50 x 36 mm (d x w).
  • 117113-02 – 25 x 36 mm (d x w).
  • 117113-03 – ±25 mm horizontal deflection.
  • 117114-01 – 50 x 36 mm (d x w) with clip-on bead.
  • 117114-02 – 25 x 36 mm (d x w) with clip-on bead.
  • 117115-01 – 50 x 40 mm (d x w).
  • 117115-02 – 25 x 40 mm (d x w).
  • 117115-03 – ±25 mm horizontal deflection.
  • 117116-01 – 50 x 40 mm (d x w) with clip-on bead.
  • 117116-02 – 25 x 40 mm (d x w) with clip-on bead.
  • 117117-01 – Door frame spacer for D350 frame.
  • 117117-02 – Door frame spacer for D250 frame.
  • 117117-03 – Fair end.
  • 117125-01 – Tapeable glazing bar to 100 mm generic drywall.
  • 117125-02 – Tapeable glazing bar to 122 mm generic drywall.
  • 117126-01 - Tapeable glazing bar to 100 mm generic drywall.
  • 117126-02 - Tapeable glazing bar to 122 mm generic drywall.
