Description

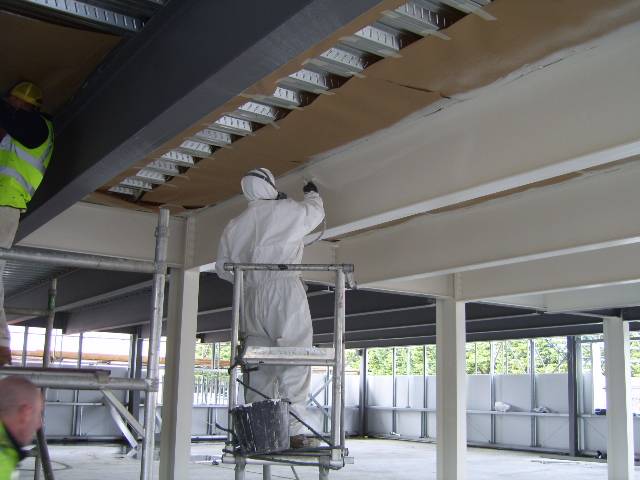

Nu-Flame Structural Steel And Cast Iron System is designed to provide up to 120 minutes fire resistance.

The system comprises:

Nu-Flame High-Build Metal Primer:

  • A high-build quick drying corrosion resistant metal primer, suitable for shop or site painting and compatible with Nu-Flame and most other intumescent paint systems, epoxy and conventional systems.

Nu-Flame S Basecoat:

  • A thin film, solvent-based decorative intumescent paint system providing fire resistance of up to 2 hours with a two coat application.

OR

Nu-Flame W Basecoat:

  • A thin film, water-based decorative intumescent paint system providing fire resistance of up to 2 hours with a two coat application.

Nu-Flame Steel Top Coat:

  • A hard, single coat, high-build, flame retardant anti-corrosion coating, resistant to physical damage, chemicals and weathering. In severe exposure or environmental locations apply a coat of semi-gloss followed by a coat of full gloss top coat. The product is based on a high durability resin, antimony oxide flame retardant agents, high opacity and corrosion resistant pigments.

General information
Specification data - Intumescent protective coatings
Product Reference

Nu-Flame Structural Steel And Cast Iron System

Undercoats

Nu-Flame S

Nu-Flame W

Standard product features

Colour:

  • Nu-Flame High-Build Metal Primer: Grey, red or white.
  • Nu-Flame S Basecoat: White.
  • Nu-Flame W Base Coat: White.

Coverage:

  • Nu-Flame High-Build Metal Primer: 6 m²/L. Dry film thickness - 75 micrometres.
  • Nu-Flame S Basecoat: This is dependent upon the type of steel being coated and fire rating required.
  • Nu-Flame W Basecoat: This is dependent upon the type of steel being coated and fire rating required.
  • Nu-Flame Steel Top Coat: 7 m²/L. Recommended dry film thickness 70 micrometres.
  • Recommended wet film thickness 150 micrometres.

Drying time:

  • Nu-Flame High-Build Metal Primer: Recoatable after 2 hours.
  • Nu-Flame S Basecoat: Recoatable after 4–10 hours.
  • Nu-Flame W Base Coat: Recoatable after 4–10 hours.

Product Options

Colour:

Nu-Flame Steel Top Coat: Gloss and semi-gloss BS 4800 and RAL shades.
