Neeva

Neeva

Zentia Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

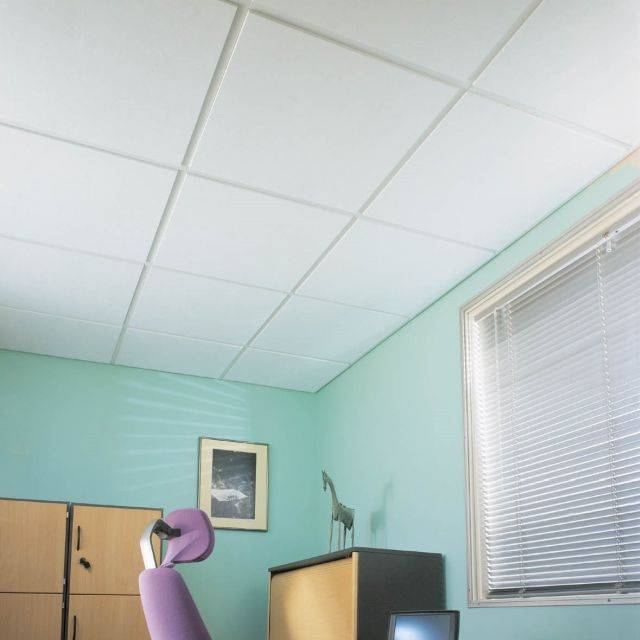

Lay-in mineral ceiling tile.

Jump to:
+44 (0)800 371849 www.zentia.com

Application

  • Open spaces.
  • Call centres.
  • Libraries.

Description

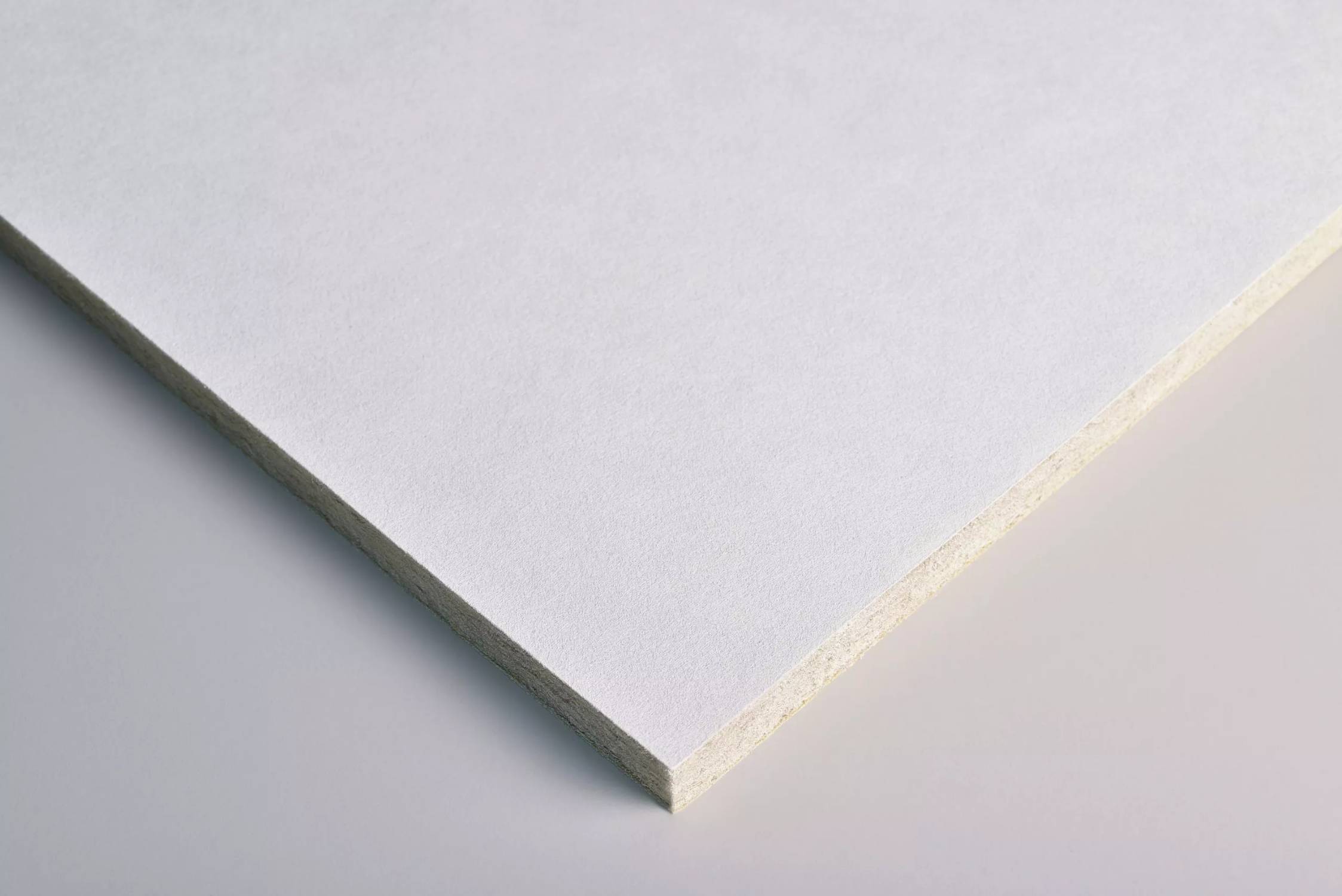

Lay-in mineral ceiling tile with smooth laminated finish combines Class A sound absorption and aesthetics.

Features and benefits:

  • Rock wool fibre core.
  • Smooth, acoustically transparent glass-fibre face scrim.
  • Acoustic back fleece
  • Choice of size.
  • Choice of thickness.
  • Suitable for environments up to 95% relative humidity.
  • 15-year guarantee.
  • 30-year system guarantee.

Load capacity:

  • Varies with layout, grid type, tile selected and hanger spacing. Consult manufacturer's technical sales department for details.
  • Fittings exceeding the load capacity or with dynamic characteristics (such as air diffusers) will need independent suspension.

Grids:

Compatible grids, to be specified separately; consult manufacturer for details.

  • Prelude 24 TLS: Exposed 24 mm grid.
  • Prelude 24 XL²: Exposed 24 mm grid.

Applications:

  • Open spaces.
  • Call centres.
  • Libraries.

General information

Uniclass 2015

Pr_35_93_13_53 Mineral fibre infill unitsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/105 Suspended ceiling system

K40/115 Unit/ modular suspended ceiling system

Specification data - Mineral fibre infill units

Product Reference

Neeva

Arrangement

Insert requirements. Consult manufacturer for BIM/ CAD details.

Edge detail

Board

Tegular

MicroLook

Module size (w x l x t, nominal)

600 x 600 x 15 mm

Weight: 1.2 kg/m².

1200 x 1200 x 18 mm

Weight: 1.3 kg/m².

Standard product features

Technical characteristics:

  • Thermal conductivity: 0.033 W/m·K.
  • Reaction to fire: Euroclass A2-s1, d0.
  • Recycled content (maximum): 20%.
  • Edge profile: Board: Lay-in square edge for Prelude 24 mm grids.
  • Acoustic absorption (weighted sound absorption coefficient): αw = 1.00.
  • Acoustic attenuation (weighted suspended ceiling normalized level difference) Dnfw = 24 dB.

Acoustic absorption:

Weighted sound absorption coefficient (alpha w). Rating for random incidence sound absorption determined in accordance with EN ISO 11654. Measured values obtained in accordance with EN ISO 20354 are converted into octave bands, plotted on a graph and compared to a standard reference curve until a 'best fit' is obtained. The derived αw will vary between 0.00 and 1.00.

Acoustic attenuation:

Dnfw rating derived from laboratory measurement of room-to-room airborne sound insulation of suspended ceiling with plenum above. Rating determined in accordance with EN ISO 717-1 from measurements made in accordance with EN150 10848-2 over the third-octave band frequency range 100–3150 Hz.

Product Options

Edge detail:

Board: Lay-in square edge for 24 mm grid.

Third party certifications

  • CE marking: Notified Body accredited
