Application

  • Sheeting and cladding.
  • Facades and rainscreens.
  • General construction.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

Description

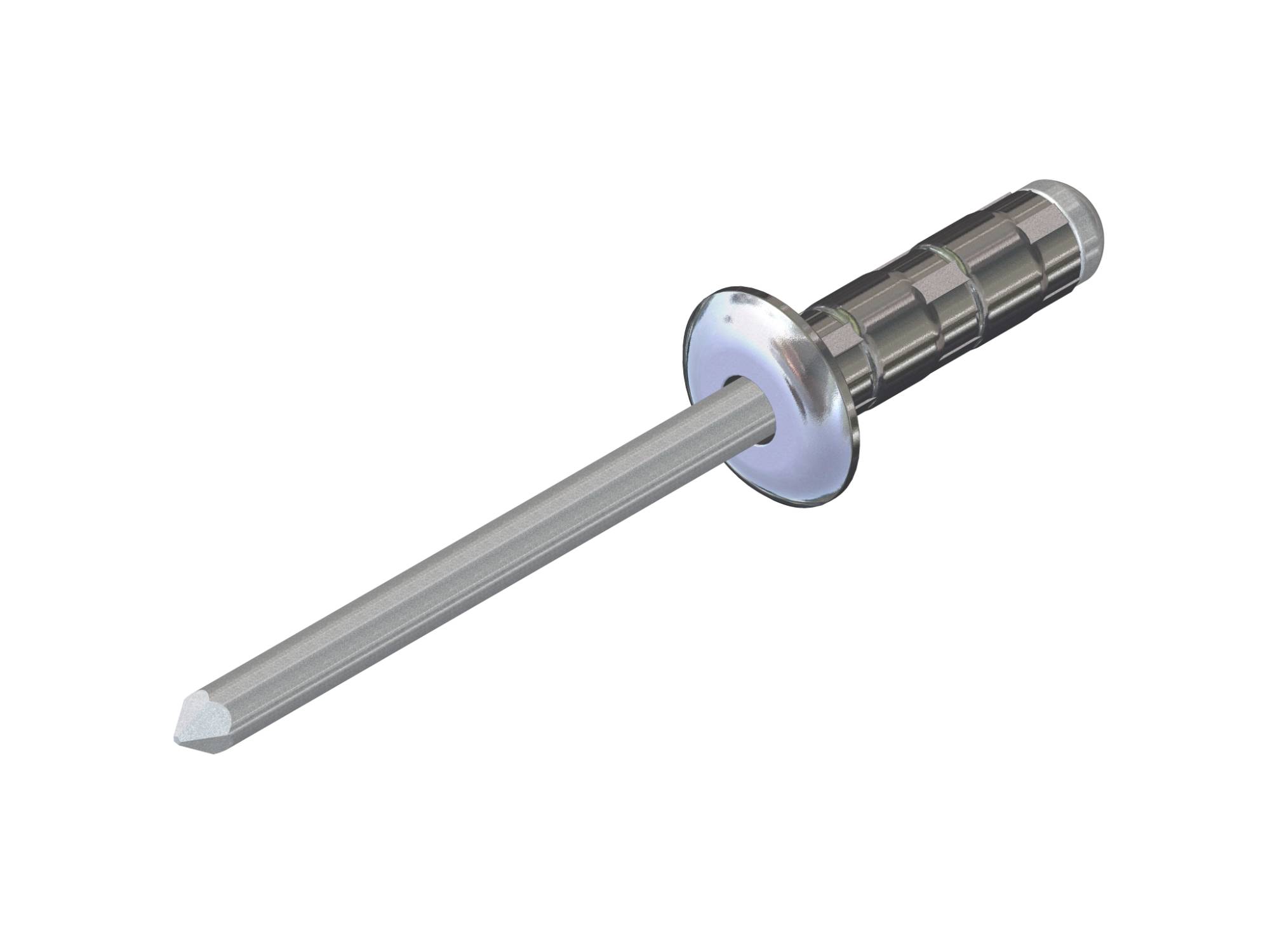

Multirange aluminium rivets.

Features and benefits:

  • Allows one rivet to fasten various thicknesses.
  • Manufactured from high grade aluminium.
  • Available in a wide range of RAL and BS colours.
  • Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.

Applications:

  • Sheeting and cladding.
  • Facades and rainscreens.
  • General construction.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

General information

Material

Aluminium

Uniclass 2015

Pr_20_29_71_77 Semi-tubular rivetsPrimary

CAWS

H31/10 Metal

H31/110 Metal

H31/120 Metal

H32/110 GRP

H32/120 Plastics

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/130 Metal vertical tiling

H67/3 Metal roof tiling

H67/5 Metal roof tiling with counterbattens

H67/8 Metal vertical tiling

Specification data - Semi-tubular rivets

Product Reference

Aluminium Rivets, R-AC-3.2 x 8

8 x 3.2 mm (l x diameter). 0.5–5 mm maximum grip range.

Aluminium Rivets, R-AC-3.2 x 11

11 x 3.2 mm (l x diameter). 4–8 mm maximum grip range.

Aluminium Rivets, R-AC-4 x 10

10 x 4 mm (l x diameter). 1–6.5 mm maximum grip range.

Aluminium Rivets, R-AC-4 x 16

16 x 4 mm (l x diameter). 6–9.5 mm maximum grip range.

Aluminium Rivets, R-AC-4.8 x 10

10 x 4.8 mm (l x diameter). 1.5–6.5 mm maximum grip range.

Aluminium Rivets, R-AC-4.8 x 15

15 x 4.8 mm (l x diameter). 4.5–11 mm maximum grip range.

Aluminium Rivets, R-AC-4.8 x 17

17 x 4.8 mm (l x diameter). 6.5–13 mm maximum grip range.

Aluminium Rivets, R-AC-4.8 x 25

25 x 4.8 mm (l x diameter). 12.5–20 mm maximum grip range.

Colour

Consult manufacturer and insert RAL or BS colour requirement.

Standard product features

Material:

Aluminium.

Drill size:

  • R-AC-3.2x8 and R-AC-3.2x11: 3.3 mm.
  • R-AC-4.0x10 and R-AC-4.0x16: 4.1 mm.
  • R-AC-4.8x10, R-AC-4.8x15, R-AC-4.8x17 and R-AC-4.8x25: 4.9 mm.

Head diameter:

  • R-AC-3.2x8 and R-AC-3.2x11: 6.5 mm.
  • R-AC-4.0x10 and R-AC-4.0x16: 8 mm.
  • R-AC-4.8x10, R-AC-4.8x15, R-AC-4.8x17 and R-AC-4.8x25: 9.5 mm.

Mandrel diameter:

  • R-AC-3.2x8 and R-AC-3.2x11: 1.8 mm.
  • R-AC-4.0x10 and R-AC-4.0x16: 2.2 mm.
  • R-AC-4.8x10, R-AC-4.8x15, R-AC-4.8x17 and R-AC-4.8x25: 2.8 mm.
