MultiRail® Abseil Rail
Application

For abseil use on facades (cleaning, painting, maintenance, etc.).

Description

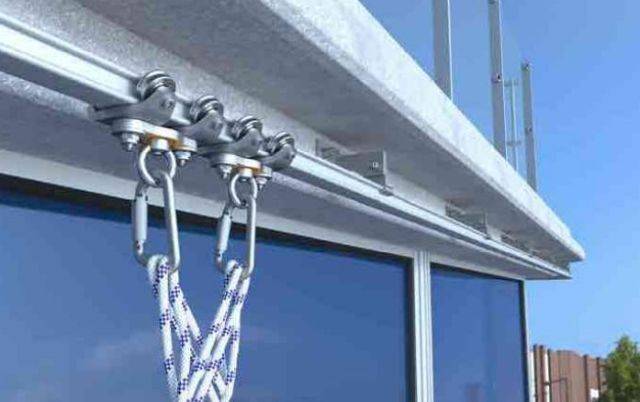

Stainless steel abseil rail system for up to two users working in suspension. Connection is via two wheeled overhead mobile anchor points (shuttles), one for suspension and one for fall protection on the same rail.

The system can be combined with the Miller® Ropax technical full-body harness including an industrial climber's seat that allows comfortable suspension work. Conforms to BS EN 795 Type D and PD CEN/TS 16415.

Components:

  • Anchor rails.
  • Connectors.
  • Runners.
  • Stops.
  • Brackets.

Applications:

For abseil use on facades (cleaning, painting, maintenance, etc.).

General information
Uniclass 2015
Ss_80_30_25_90 Travelling ladder access systemsPrimary
CAWS

N25/10 Personal fall protection equipment

N25/210 Personal fall protection equipment

Specification data - Travelling ladder access systems
Product Reference

MultiRail® Abseil Rail

Design

As drawing

Insert reference, consult manufacturer for information.

Accessories

Insert requirements, consult manufacturer for information.

Standard product features

Rail:

  • Material: Stainless steel, pickled.
  • Profile (w x h): 45 x 35 mm.
  • Length: Available in 3000 mm and 6000 mm lengths.
  • Weight: 2.7 kg/m.

Wheeled trolley:

  • Swivelable eyelet, can be used with rail end-stop and horizontal bend.
  • Material: Stainless steel, grade 1.4401 (316).
  • Weight: 1.9 kg.
  • Breaking strength: >25 kN.
  • Operating temperature: -50 to +90°C.

Maximum span between brackets:

6000 mm.
