Description

Commercial unvented water heaters with no requirement for a cold water cistern. The range comes in a mix of different capacities and electrical power ratings, as well as horizontal and vertical designs all with high kW ratings for a faster recovery time.

Designed, engineered and manufactured in the UK. Fully Energy related Products (ErP) compliant, CE marked, Kiwa and Nemco approved.

Multipoint 10 and 15 L:

  • For multiple outlets.
  • Available in 10 L and 15 L capacities.
  • Choice of 3 kW and 4.5 kW ratings.
  • Replaceable long-life alloy sheathed element.
  • Externally adjustable thermostat from 10–70°C which is lockable in hot or mid-range position.
  • Chlorofluorocarbons (CFC) and hydro-chlorofluorocarbons (HCFC) free (zero ozone depletion potential (ODP)) flame-retardant expanded polystyrene.
  • Element 'on' indicator.
  • No sacrificial anode to inspect or replace.
  • Suitable for use with any standard tap or mixer.
  • Five-year inner container warranty.

Multipoint Eco 30, 50, 80 and 100 L:

  • For light commercial applications.
  • Available in 30, 50, 80 and 100 L capacities.
  • 3 kW element rating.
  • Available as a horizontal or a vertical unit.
  • Smart thermostatic control.
  • Legionella control system.
  • Digital interface.
  • 15-year inner container guarantee, two-years on other components.

General information
Color

White

Shape

369 x 371 x 712 mm

Uniclass 2015
Electric storage water heaters (Pr_60_60_96_28)Primary
Specification data - Electric storage water heaters
Product Reference

Multipoint 10, 3 kW output

10 L capacity, 572 x 267 x 252 mm (h x w x d).

Multipoint 10, 4.5 kW output

10 L capacity, 572 x 267 x 252 mm (h x w x d).

Multipoint 15, 3 kW output

15 L capacity, 728 x 267 x 252 mm (h x w x d).

Multipoint 15, 4.5 kW output

15 L capacity, 728 x 267 x 252 mm (h x w x d).

Multipoint Eco 30 H

Horizontal, 3 kW output, 30 L capacity, 371 x 712 x 357 mm (h x w x d).

Multipoint Eco 30 V

Vertical, 3 kW output, 30 L capacity, 722 x 712 x 357 mm (h x w x d).

Multipoint Eco 50 H

Horizontal, 3 kW output, 50 L capacity, 371 x 997 x 357 mm (h x w x d).

Multipoint Eco 50 V

Vertical, 3 kW output, 50 L capacity, 1007 x 371 x 357 mm (h x w x d).

Multipoint Eco 80 H

Horizontal, 3 kW output, 80 L capacity, 454 x 1038 x 456 mm (h x w x d).

Multipoint Eco 80 V

Vertical, 3 kW output, 80 L capacity, 1066 x 454 x 456 mm (h x w x d).

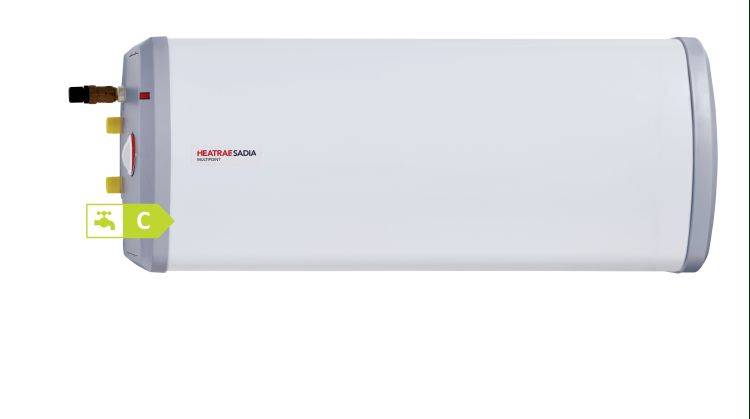

Multipoint Eco 100 H

Horizontal, 3 kW output, 100 L capacity, 454 x 1207 x 456 mm (h x w x d).

Multipoint Eco 100 V

Vertical, 3 kW output, 100 L capacity, 1234 x 454 x 456 mm (h x w x d).

Accessories

None

Pack U1 Combined pressure reducing valve and strainer

Pack U2 Expansion vessel & check valve

For Multipoint 10 and 15 only.

Pack U3 TMV2

Pack U7 TMV3

Standard product features

Weight (empty/ full):

  • Multipoint 10: 6.9/ 16.9 kg.
  • Multipoint 15: 8.8/ 23.8 kg.
  • Multipoint Eco 30: 14/ 44 kg.
  • Multipoint Eco 50: 21/ 71 kg.
  • Multipoint Eco 80: 26/ 106 kg.
  • Multipoint Eco 100: 30/ 130 kg.

Energy related Products (ErP) rating:

  • Multipoint 10, 15 and Eco 30: A.
  • Multipoint Eco 50, 80 and 100: B.

Technical characteristics:

Dependent on model, consult manufacturer's literature for information.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 2 2.0
IFC
- 1 1.3
Download now from NBS National BIM Library
Third party certifications
  • Kiwa : Approved
  • Nemko : Approved
