Description

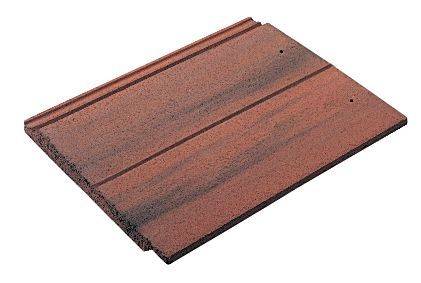

Interlocking concrete slate effect tile with a dummy bond line down the centre, creating the impression of two small units and suggesting the appearance of a small format slate when laid. It can be laid at pitches as low as 17.5° in both new build and re-roofing projects.

Batten size:

  • 38 x 25 mm for up to 450 mm support spacing.
  • 50 x 25 mm for up to 600 mm support spacing.

Tile head-lap:

  • Minimum: 17.5–22.4°: 100 mm; ≥22.5°: 75 mm.
  • Maximum: 125 mm.

Features:

  • Small tile roof appearance, but with speed and ease of larger format installation.
  • Economical to buy and install.
  • Available in five attractive colours.

General information
Features

Small tile roof appearance, but with speed and ease of larger format installation

Economical to buy and install

Available in five attractive colours

Material

Concrete

Size

418 x 334 mm

Uniclass 2015
Concrete interlocking tiles (Pr_25_93_72_17)Primary
Specification data - Concrete interlocking tiles
Product Reference

Mockbond Mini Stonewold Slate - 4271

Colour

Breckland brown (52)

Charcoal grey (77)

Farmhouse red (39)

Slate grey (30)

Terracotta (34)

Standard product features

Size:

418 x 334 mm.

Material:

Concrete.

Pitch:

  • Minimum: 100 mm headlap: 17.5°; 75 mm headlap: 22.5°.
  • Maximum: 90°.

Gauge:

  • Minimum: 293 mm.
  • Maximum: <22.5°: 318 mm; ≥22.5°: 343 mm.

Linear cover:

294 mm.

Covering capacity:

9.9 tiles/m².

Weight (at maximum gauge):

50 kg/m².
