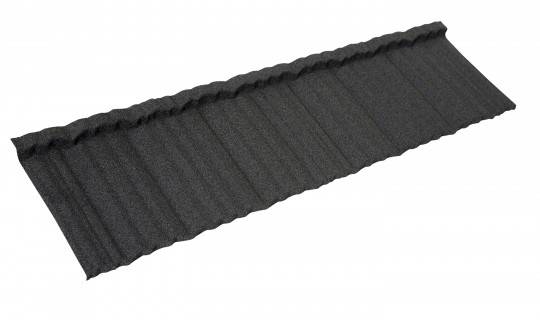

Mistral
Description

Preformed aggregate-coated steel tile sheets for use on conventional steel or timber roof structures with a minimum pitch of 12°.

The Metrotile Slate II profile is a product which offers incredible value and superior performance to traditional slate roof products in every way.

The deep lines pressed into each Aluzinc-coated steel profile results in increased shadow definition, resulting in a tile that looks virtually indistinguishable from traditional slate, while simultaneously offering unmatched vandal and weather resistance.

Formed from high quality Drawing Grade 3 steel, it makes a perfect choice for a wide variety of roofing projects.

General information

Size

1330 x 415 mm

Uniclass 2015

Pr_25_93_72_52 Metal tilesPrimary

CAWS

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/130 Metal vertical tiling

H67/3 Metal roof tiling

H67/5 Metal roof tiling with counterbattens

H67/8 Metal vertical tiling

Specification data - Metal tiles

Product Reference

Mistral

Colour

Brindle

Bronze

Charcoal

Greenstone

Red

Terracotta

Photovoltaics

Not required

Required

Accessories

Barrel cap/ vee ridge

to cover 370 mm.

Ridge/ hip cap

to cover 1150 mm.

Side flashing

to cover 1150 mm.

Standard barge cover

to cover 1150 mm.

Standard product features

Size:

1330 x 415 mm.

Minimum pitch:

12°.

Maximum pitch:

90°.

Side lap:

60 mm.

Steel gauge:

0.450 mm.

Weight:

6.2 kg/m².
