Metrotile Photovoltaics

Application

  • Individual homes.
  • Large social housing projects.
  • Schools.
  • Commercial buildings.
  • Industrial buildings.

Description

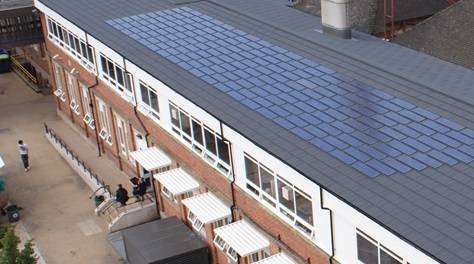

Enables the rooftop to harness energy from natural light. Compatible with all Metrotile Slate and Bond profiles, available both incorporated into tiles or for retro-fitting onto the rooftop.

One tile equals one installed photovoltaic panel. The tiles interlock and are screwed, not nailed, for easy removal should a cell be damaged. There are no special flashings or mounting systems and no other waterproofing or sealing materials are required.

Features and benefits:

  • Easy to install.
  • Save money on home energy bills with the opportunity for making money back from feed-in tariffs.
  • Reduces carbon footprint.
  • Can be installed to a low pitch, so are less obtrusive, helping to avoid planning restrictions.

Applications:

  • Individual homes.
  • Large social housing projects.
  • Schools.
  • Commercial buildings.
  • Industrial buildings.

Quality assurance:

Metrotile Photovoltaics have been tested in compliance with European and International Standards, including draft Dutch Building Standard, EU ‘prescript’ pre standards and has been tested for wind uplift, code F-02-BRE 36-6 and water ingress tests according to procedures in CEN standard PrEN 15601:2006 by the British Research Establishment, UK. The laminates are manufactured in an ISO 9001:2002 certified factory and produced in a TUV IEC 61212 and Safety class 2 approved process.

General information

Finish

Tile: Mineral filled acrylic coating followed by stone granules and a clear acrylic glaze coat; Module: Non-reflective glass laminate

Material

Tile: Pressed from epoxy or acrylic coated high grade Aluzinc® coated steel; Module: Polycrystalline silicon

Shape

Rectangular

Size

1330 x 420 x 0.45 mm

1330 x 420 x 0.90 mm

Uniclass 2015

Pr_25_93_72_52 Metal tilesPrimary

CAWS

H67/110 Metal roof tiling

null Metal roof tiling with counterbattens

H67/130 Metal vertical tiling

null Metal roof tiling

H67/5 Metal roof tiling

H67/8 Metal vertical tiling

V90/312 Photovoltaic system

V90/312 Photovoltaic system

Specification data - Metal tiles

Product Reference

Photovoltaics

Steel gauge

0.450 mm

0.900 mm

Standard product features

Size:

1330 x 410 x 60 mm.

Minimum pitch:

10°.

Maximum pitch:

90°.

Weight:

6.9 kg

Typical electrical characteristics:

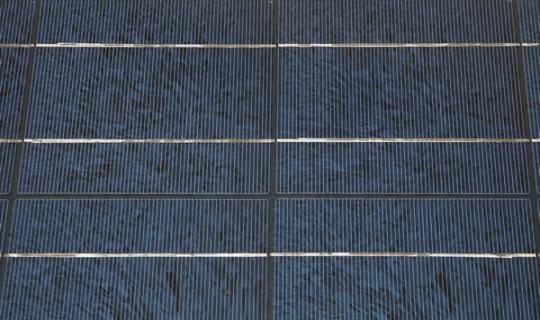

  • Cell specifications: 14 series connected 156 mm poly-crystalinesilicon cells.
  • Maximum power nominal (Pmax): 50 W voltage at Pmax (Vmp): 7.0V.
  • Current at Pmax (Imp): 7.2 A.
  • Short circuit current (Isc): 8.0 A.
  • Open-circuit voltage (Voc): 8.4 V.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2015

2

1.3
Download now from NBS National BIM Library

Literature

Lightweight Roofing Systems

Lightweight Roofing Systems
