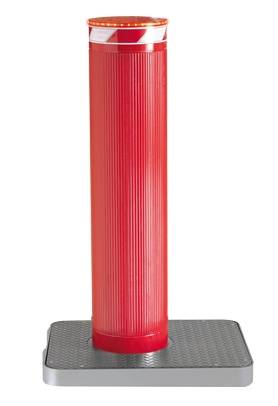

Macs M50 K12 PAS68 Crash Rated Automatic Security Bollard

Application

The M50 275/1200 bollards are recommended for use in any security sensitive sites where hostile vehicle mitigation is required, including company driveways, industrial driveways, research centres, embassies, police facilities, military bases.

Description

The Macs M50 275/1200 automatic bollard has been manufactured and tested to ensure a high level of perimeter defence.

The bollard is available with a number of optional accessories which allow customization according to project needs. When incorporated with the manufacturer's specially designed PLC based monitoring and control system, the bollard offers complete control over any vehicle restriction system.

Features and benefits:

  • HVM (hostile vehicle mitigation) security bollard, with integrated hydraulic pump for ease of installation, increased reliability and intensive use.
  • Sleek design and pleasing aesthetics. Suitable for a wide variety of HVM applications.
  • High duty cycle, ensuring lasting performance and intensive use.
  • Certified to PAS68:2013 V/7500(n3)/80 and ASTM F2656-07 M50 (K12).
  • Manual emergency lowering.
  • Hydraulic pump built-in to the bollard.

Applications:

The M50 275/1200 bollards are recommended for use in any security sensitive sites where hostile vehicle mitigation is required, including company driveways, industrial driveways, research centres, embassies, police facilities, military bases.

General information

Uniclass 2015

Pr_20_76_08_84 Stainless steel rising bollardsPrimary

CAWS

Q50/194 Retracting bollards

Specification data - Stainless steel rising bollards

Product Reference

Macs M50 K12 PAS68 Crash Rated Automatic Security Bollard

Material/ Finish

Brushed stainless steel 1.4301 (304) grade

Brushed stainless steel 1.4401 (316) grade

Painted stainless steel 1.4301 (304) grade

Painted stainless steel 1.4401 (316) grade

Powder coated Anthracite

RAL painted (S355JR) steel

Consult manufacturer for details and insert requirement.

Ribs on the cylinder surface

Steel only.

Rising speed

220 mm/ second

300 mm/ second with E.F.O. System

Accessories

None

Audio sounder

Bollard reflecting adhesive strip - white (no-logo)

Buzzer acoustic signal

Control unit

Covering in stainless steel, 1.4401 (316) grade for moving cylinder

Flashing light- 1 led point

Head without logo

Heating resistance for Pilomat bollards - transformer and thermostat one resistance for each bollard

Inductive card reader

Inductive detector for loops

Inductive loops

LED strip around bollard head

Lock selector

Pit In Aluzinc - counterframe and brackets one pit for each bollard

Radio receiver

Radio transmitter two-channel

Rebars for pit

Reflective adhesive strip – height 55 mm

Timer programmer

Traffic light with two lights (green-red)

Standard product features

Height:

1200 mm.

Diameter:

271 mm.

Thickness:

24 mm.

Technical characteristics:

  • Lowering Speed: 220 mm/ second.
  • Connection cable to control unit: Standard 10 m (80 m or with heating resistance: 50 m (maximum).
  • Protection class: IP67.
  • Type of Use: Intensive – Life average: 3,000,000 movements. (2000 movements per day).
  • Impact Resistance (Without Deformation): 700,000 J.
  • Breakout resistance: 2,000,000 J.
  • Operating temperature: -40 to +70°C.

Third party certifications

  • PAS68:2013 V/7500(n3)/80
  • ASTM F2656-07 M50 (K12)
