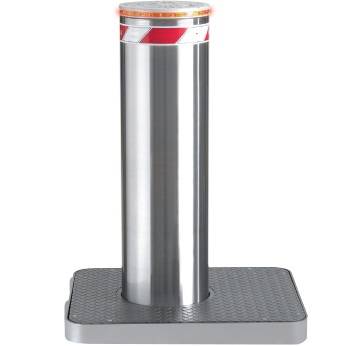

Macs K4 275/900 HVM Rising Bollard

Application

The Macs K4 275/900A security bollards are designed to ensure a high level of anti-terrorist perimeter defence, including on company driveways, industrial driveways, research centres, embassies, police facilities, military bases.

Description

Automatic security bollard.

K4 275/900A security bollards, designed to ensure a high level of anti-terrorist perimeter defence, certified to both PAS 68 and IWA 14. The result of 40 years experience in the security field and in excess of 20 years in the specific design and manufacture of high security automatic bollards, the 275/K4 900A PAS 68 is recommended for use in any security sensitive application where hostile vehicle mitigation is required.

When incorporated with the manufacturer's specially designed PLC based monitoring and control system, the bollard offers complete control over any vehicle restriction system.

Features and benefits:

  • Crash rated security bollard, with integrated hydraulic pump for ease of installation, increased reliability and intensive use.
  • Sleek design and pleasing aesthetics.
  • High duty cycle, ensuring lasting performance and intensive use.
  • Manual emergency lowering.
  • Hydraulic pump built-in to bollard.
  • Certified to IWA 14-1:2013 V/7200(N3)/48/90:1.0 and PAS68:2013 V/7500(N3)/48/90:1.0/2.5.

Applications:

The Macs K4 275/900A security bollards are designed to ensure a high level of anti-terrorist perimeter defence, including on company driveways, industrial driveways, research centres, embassies, police facilities, military bases.

General information

Features

PAS68 and IWA 14-1 rated bollard for HVM applications

Finish

Powder coated, stainless steel

Material

Stainless steel

Shape

Cylinder

Size

273 x 900 mm

Uniclass 2015

Pr_20_76_08_84 Stainless steel rising bollardsPrimary

CAWS

Q50/194 Retracting bollards

Specification data - Stainless steel rising bollards

Product Reference

Macs K4 PAS68 and IWA 14 Crash Rated Automatic Security Bollard

Material/ Finish

Brushed stainless steel 1.4301 (304) grade

Brushed stainless steel 1.4401 (316) grade

Painted stainless steel 1.4301 (304) grade

Painted stainless steel 1.4401 (316) grade

Powder coated Anthracite

RAL painted (S355JR) steel

Consult manufacturer for details and insert requirement.

Ribs on the cylinder surface

Steel only.

Accessories

None

Audio sounder

Bollard reflecting adhesive strip - white (no-logo)

Buzzer acoustic signal

Control unit

Covering in stainless steel, 1.4401 (316) grade for moving cylinder

Flashing light- 1 led point

Head without logo

Heating resistance for Pilomat bollards - transformer and thermostat one resistance for each bollard

Inductive card reader

Inductive detector for loops

Inductive loops

LED strip around bollard head

Lock selector

Pit In Aluzinc - counterframe and brackets one pit for each bollard

Radio receiver

Radio transmitter two-channel

Rebars for pit

Reflective adhesive strip – height 55 mm

Timer programmer

Traffic light with two lights (green-red)

Standard product features

Height:

900 mm.

Diameter:

273 mm.

Thickness:

10 mm.

Technical characteristics:

  • Rising speed: 100 mm/ second.
  • Lowering Speed: 260 mm/ second.
  • Connection cable to control unit: Standard 10 m (80 m or with heating resistance: 50 m (maximum).
  • Protection class: IP67.
  • Type of Use: Intensive – Life average: 3,000,000 movements. (2000 movements per day).
  • Impact Resistance (Without Deformation): 250,000 J.
  • Breakout resistance: 750,000 J.
  • Operating temperature: -40 to +70°C.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library

Third party certifications

  • IWA 14-1:2013 V/7200(N3)/48/90:1.0
  • PAS68:2013 V/7500(N3)/48/90:1.0/2.5
