LOFT54 Double Glazed Panel Partition System (True)

LOFT54 Double Glazed Panel Partition System (True)

Planet

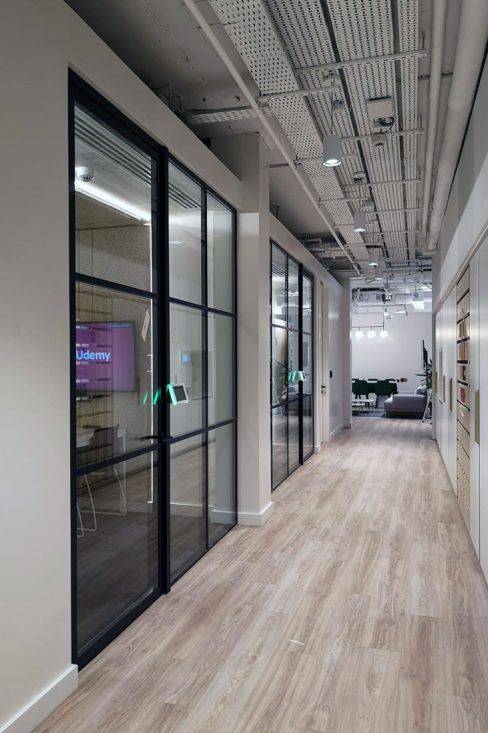

Double glazed partition system with a 54 mm wide frame with extruded LOFT transoms and/ or mullions.

Jump to:
+44 (0)1444 247933 www.planetpartitioning.co.uk

Application

All sectors: Commercial; Education; Healthcare; MOD; Airport & rail; Industrial; Hospitality; Residential & public.

Consult manufacturer for further details.

Description

Double glazed partition system with a 54 mm wide frame with extruded LOFT transoms and/ or mullions.


Features and benefits:

  • The 54 mm-thick framework of the LOFT54 is the ideal foundation for industrial style banded glazing.
  • Delivers impressive acoustic performance in a range of styling options and installation methods.
  • The system can achieve a notable acoustic performance of up to 46 dB Rw uncompromised by its slender framework.
  • Available with IsoTec or IsoPro door leafs.
  • Also available as a bonded partition system (bonded LOFT transoms and/or mullions), or single-glazed in either bonded or 'true' formats. All to be specified separately.


Please note that acoustic, fire rated and structural certification and support for Planet products and systems is available on a project-specific basis. Please contact the specification team directly for further information.

General information

Finish

PPC

Polyester powder-coated.

Polished

Linished

Anodized

Etched and anodized.

Color

Other

Polyester powder-coated or anodized.

Silver

Etched and anodized.

Material

Aluminium

6063 T6.

Glass

Shape

To suit project requirements; consult manufacturer for further details.

-

Size

To suit project requirements; consult manufacturer for further details.

-

WarrantyDescription

Dealt with on a project specific basis as part of the O&M process; consult manufacturer for details.

-

Uniclass 2015

Pr_25_71_57_60 Partition panelsPrimary
Ss_25_12_65_65 Panel partition systems

CAWS

K30/130 Relocatable partition system

K30/10 Relocatable partition system

Specification data - Partition panels Enhanced data

Third party accreditation

ISO 9001-UKAS (Quality); ISO 14001-UKAS (Environmental); Constructionline-Gold; Acclaim (SIPP); Achilles (Building confidence, SIPP); EPD - material accreditation & compliance; FIS Member; Considerate Construction; FORS Bronze; Build Profile.

EPD - material accreditation & compliance: Consult manufacturer for details (glass, PPC, aluminium, timber, ironmongery, waste, adhesive and more).

Unit size

-

Thickness

54 mm.

Partition height (nominal)

Insert requirements. For partitions over 3000 mm high, consult with manufacturer.


-

Width (nominal)

Insert requirements. For partitions over 1200 mm wide, consult with manufacturer.


-

Deflection allowance (maximum)

-

Head

No deflection; 27 mm deep x 54 mm wide channel.

No deflection; 50 mm deep x 54 mm wide channel.

±15 mm deflection; 80 mm deep x 74 mm wide channel.

±25 mm deflection; 90 mm deep x 74 mm wide channel.

Floor

Consult with manufacturer for system weight.



-

Verticals

27 mm deep x 54 mm wide channel.

Panel partition type

Framed glass - double offset glazed - with extruded LOFT transoms and/or mullion profiles.

Framing, junctions, corners

Mullions, transoms and corners: Extruded LOFT trims.

27 mm deep x 54 mm wide base channel.

50 mm deep x 54 mm wide base channel.

27 mm deep x 54 mm wide abutment channel.

50 mm deep x 54 mm wide abutment channel.

Solid panels

-

Type

Not required.

Back painted glass.

Steel faced boards.

Veneered panels.

Magnetic white board film.

Finish and colour

Not applicable.

To match frame.

Polyester powder-coated, RAL.

Insert colour requirement.

Polished and chemically brightened.

Linished and chemically brightened.

Etched and anodized.

Insert requirement.

Joint treatment

-

Type

Mullion, transom: 27 mm deep x 54 mm wide extruded profile; Corners: 54 x 54 mm corner box with abutment tracks.

Finish and colour

Polyester powder-coated, RAL.

Insert colour requirement.

Polished and chemically brightened.

Linished and chemically brightened.

Etched and anodized.

Insert requirement.

Glazed panels

-

Type

Consult manufacturer to ensure compliance with test/ assessment data.

Double glazed, 12–15 mm annealed laminate.

Double glazed, 12–15 mm annealed acoustic laminate.

Double glazed, 12–15 mm toughened - heat soaked.

Double glazed, 12–15 mm LCD switchable.

Double glazed, 12–15 mm patterned, fluted.

Double glazed, 12–15 mm low iron.

All glass types available; consult manufacturer and insert requirements.

Integral blinds

n/a.

Not suitable for this system.

Additional features

None.

Double glazed/ boarded tech panel to incorporate room booking systems, access control and other electronics.

Door arrangement

-

Type

IsoTec micro framed leaf in door frame, single leaf, single action.

IsoTec micro framed leaf in door frame, unequal leaves, single action.

IsoTec micro framed leaf in door frame, double leaves, single action.

IsoPro framed leaf in door frame, single leaf, single action.

IsoPro framed leaf in door frame, unequal leaves, single action.

IsoPro framed leaf in door frame, double leaves, single action.

Door frames

Planet A188 aluminium door frame, with single leaf set.

Planet A188 aluminium door frame, with unequal leaf doors.

Planet A188 aluminium door frame, with double doors.

Door leafs

-

Type

Planet IsoTec 12 mm door leaf – non-acoustic.

Suitable for use in:

  • Planet aluminium door frame, with single leaf set.
  • Planet aluminium door frame, with double leaf doorset.


Planet IsoTec 12 mm door leaf – 34 dB Rw.

Suitable for use in Planet aluminium door frame, with single leaf set only.

Planet IsoPro, single glazed metal framed door leaf – 34 dB Rw.

Suitable for use in Planet aluminium door frame, with single leaf set only.

Planet IsoPro, double glazed metal framed door leaf – 34 dB Rw.

Suitable for use in Planet aluminium door frame, with single leaf set only.

Planet IsoPro, single glazed metal framed door leaf – 36 dB Rw.

Suitable for use in Planet aluminium door frame, with single leaf set only.

Planet IsoPro, double glazed metal framed door leaf – 39 dB Rw.

Suitable for use in Planet aluminium door frame, with single leaf set only.

Planet IsoPro, double glazed metal framed door leaf – 42 dB Rw.

Suitable for use in Planet aluminium door frame, with single leaf set only.

Timber 44 mm leaf on hinges – 29 dB on to carpet.

Suitable for use in Planet aluminium door frame, with single leaf set only.

Timber 44 mm leaf on hinges – 32 dB on to carpet.

Suitable for use in Planet aluminium door frame, with single leaf set only.

Timber 54 mm rebated leaf on hinges – 33 dB on to carpet.

Suitable for use in Planet aluminium door frame, with single leaf set only.

Timber 54 mm rebated leaf on hinges – 38 dB on to solid floor.

Suitable for use in Planet aluminium door frame, with single leaf set only.

Timber 54 mm rebated leaf on hinges – 40 dB on to aluminium threshold.

Suitable for use in Planet aluminium door frame, with single leaf set only.

Planet IsoPro, double glazed metal framed door leaf (non-rebated) – 31 dB Rw.

Suitable for use in:

  • Planet aluminium door frame, with unequal leaf doorset.
  • Planet aluminium door frame, with double leaf doorset.


Planet IsoPro, double glazed metal framed door leaf (rebated) – 33 dB.

Suitable for use in Planet aluminium door frame, with unequal leaf doorset only.

Planet IsoPro, double glazed metal framed door leaf (rebated) – 35 dB.

Suitable for use in Planet aluminium door frame, with unequal leaf doorset only.

Planet IsoPro, double glazed metal framed door leaf (rebated) – 36 dB.

Suitable for use in Planet aluminium door frame, with unequal leaf doorset only.

Planet IsoPro, single glazed metal framed door leaf (non-rebated) – non-acoustic.

Suitable for use in Planet aluminium door frame, with double leaf doorset only.

Timber 44 mm leaf on hinges – non-acoustic.

Suitable for use in Planet aluminium door frame, with double leaf doorset only.

Timber 54 mm rebated leaf on hinges – non-acoustic.

Suitable for use in Planet aluminium door frame, with double leaf doorset only.

Timber 54 mm rebated leaf on hinges - 35 dB on to carpet.

Vision panels

Not required.

Required.

Available with timber door leaves only; consult manufacturer for details and insert requirements.

Ceiling

-

Type

Consult manufacturer for interface detail and insert requirements.

-

Method of support

Consult manufacturer for support detail and insert requirements.


-

Perimeters, skirtings, sills

27 mm deep x 20 mm wide aluminium channel.

50 mm deep x 20 mm wide aluminium channel.

Trims

Mullion, transom: 27 mm deep x 54 mm wide extruded profile.

Hardware

See appropriate door specification for applicable ironmongery options and insert requirements.

-

Seals

Clear perimeter compression seals.

Black perimeter compression seals.

Cable management and outlets

Not required.

As Glazed panels - Additional features.

Double glazed/ boarded Tech Panel to incorporate room booking systems, access control and other electronics.

Other features

Consult manufacturer and insert requirements or leave blank.

-

Product Reference

LOFT54 Double Glazed Panel Partition System (True)

Manifestation

To architects choice and in accordance with the requirements of Approved Document K.



Allowance of 2 nr rows 50 mm dots or square (minimum) Opal Frost.

Insert requirements.


Artwork and custom manifestation to client design.

Insert requirements.


StrengthGrade

Consult with the manufacturer to ensure the system complies with current regulations BS 5234:1992 non load-bearing screens not protecting a change in adjacent floor level of >380 mm.


For glass load resistance criteria;

  • BS 5234 not applied to “all glass partition screens”.
  • Nominal line load criteria of “short-term impact load” utilised.
  • 0.36 kN/m applied as linear load at 1100 mm above FFL.
  • Glass deflection limited to L/65 or 25 mm, whichever is less under load.
  • Maximum deflection and stress in accordance with the glass performance requirements of EN 572/ EN 12150/ EN 12543/ EN 14179 (where heat soaked).


Building regulations Part N (BS 6262 & BS EN 12600) + InsStucEng publication “structural use of glass in buildings” insert as required:

  • 0.36 kN/m (default load).
  • 0.74 kN/m.
  • 1.5 kN/m.


BS 6180:2011 barriers in and about buildings for Atria or protected change in adjacent floor level of >380 mm.

Horizontal uniformly distributed line load 1100 mm above FFL (glass deflection limited to L/65 or 25 mm, whichever is less relative to glass fixings).

Structural glass based on line-load and attendant UDL + point load, insert as required:

  • 0.74 kN/m.
  • 1.5 kN/m.
  • 3.0 kN/m.


-

Acoustic performance

To comply to EN ISO 10140-2 and ISO 717-1: Acoustics vary according to framework/glazing options subject to further design development.


39 dB Rw.

40 dB Rw.

41 dB Rw.

42 dB Rw.

43 dB Rw.

Show more

Partition

Framed glass - double glazed - with extruded LOFT transoms and/ or mullions.

Fasteners

To manufacturer's specification, type, length and frequency to suit substrates.

Joint treatment

27 mm deep x 54 mm wide extruded LOFT mullion and/ or transom.

Finish/ Colour

Polyester powder-coated, RAL.

Insert colour requirement.


Polished and chemically brightened.

Linished and chemically brightened.

Etched and anodized.

Insert requirement.


System accessories

Tech panels, access control - consult with manufacturer for details.


-

Samples required

Consult with manufacturer.


-

Environmental information

Contains Red List materials

No

No substance on the “Candidate List of Substances of Very High Concern for authorisation” derived under REACH is present either above the limits for registration with the European Chemicals Agency or in excess of 1 weight–% of the product.

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Aluminium and glass.

Recycled content

17–28% for glass.

70% for aluminium.

-

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2
Download now from NBS National BIM Library

Literature

LOFT54 - Images & Information

LOFT54 - Images & Information

Planet Partitioning Product Guide

Planet Partitioning Product Guide

Case studies

Fora, Reading

Fora, Reading

Similar products from Planet

Fire-Eco Ei30 Double Glazed Partition System

Fire-Eco Ei30 Double Glazed Partition System

Fire-Eco Ei30 Single Glazed Partition System

Fire-Eco Ei30 Single Glazed Partition System

Fire-Eco Ei60 Double Glazed Partition System

Fire-Eco Ei60 Double Glazed Partition System

Fire-Eco Ei60 Single Glazed Partition System

Fire-Eco Ei60 Single Glazed Partition System

FireClear100 Double  Glazed Partition System

FireClear100 Double Glazed Partition System

FireClear20  Single Glazed Partition System

FireClear20 Single Glazed Partition System

FireClear54 Double Glazed Partition System

FireClear54 Double Glazed Partition System

FirePro E120 Single Glazed Partition System and Ei 60 Doorset

FirePro E120 Single Glazed Partition System and Ei 60 Doorset

FirePro E30 Double Glazed Partition System and Doorset

FirePro E30 Double Glazed Partition System and Doorset

FirePro E30 Single Glazed Partition System and Doorset

FirePro E30 Single Glazed Partition System and Doorset
