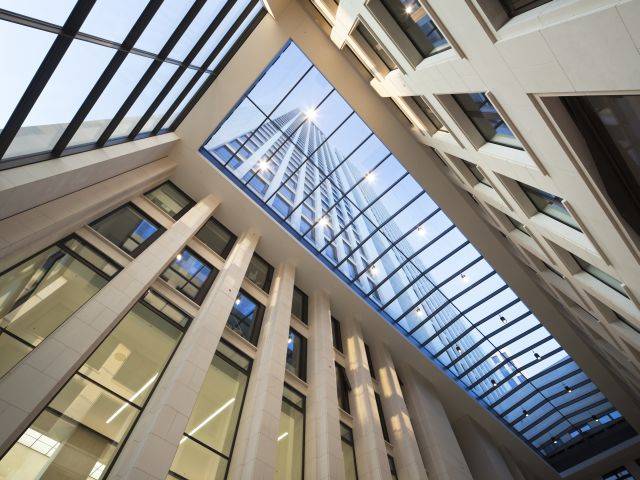

LamiGlass® Colour - Lami Bronze 3628
Application

  • Curtain walling and window systems.
  • Low level glazed areas at risk of human impact.
  • Overhead glazing.
  • Balustrading.
  • Glazed floors.
  • Floor to ceiling glazing.
  • Doors and furniture.
  • Partitions.

Description

Guardian laminated safety glass colour is a combination of two or more panes of glass with one or more coloured polyvinyl butyral (PVB) layers. This can be adapted to many aspects of modern window design, such as solar control, noise reduction, privacy, thermal insulation and energy conservation, whilst ensuring safety and security in a wide variety of situations. LamiGlass Colour can also be used to help characterise interior design through a variety of applications.

Further processing:

  • Cut to size.
  • Drilling.
  • Notching.
  • Edgeworking.
  • CNC shaping.
  • Leaded or decorated.
  • Manufactured into suitable single, double or triple glass insulating units.

Benefits:

  • Designed to break safely under impact to reduce the risk of serious injury.
  • Offers additional protection against vandalism, burglary and explosions.
  • Can be incorporated in units in combination with many other products in the Guardian range to achieve high performance (ClimaGuard® and Sun-Guard®).
  • Protects against UV radiation, which will protect materials prone to fading.
  • Can reduce the levels of noise with considerably greater efficiency than ordinary glass of the same thickness.
  • Coloured interlayers ensure colour consistency irrespective of glass thickness.
  • Offers impact resistance up to class 1(B) 1 when tested in accordance with EN 12600.
  • Range of coloured interlayers available.

Applications:

  • Curtain walling and window systems.
  • Low level glazed areas at risk of human impact.
  • Overhead glazing.
  • Balustrading.
  • Glazed floors.
  • Floor to ceiling glazing.
  • Doors and furniture.
  • Partitions.

Standards:

Guardian Europe has ISO 9001 accreditation for the manufacture of float glass at all of its European based float glass plants. Guardian LamiGlass complies with the requirements of EN 14449: 2005 ‘Glass in Building: Laminated Glass and Laminated Safety Glass’. Guardian also has ISO 14001 Environmental Management System standard.

General information
Features

Break safe characteristics, resists attack, UV protection

Uniclass 2015
Pr_25_71_33_02 Annealed glass sheetsPrimary
CAWS

H10/10 Patent glazing

H10/115 Patent glazing

H11/110 Curtain walling

H13/115 Structural glass assembly

L40/210 Putty-fronted single-glazing

L40/230 Bead-fixed single-glazing

L40/250 Bead-fixed single-glazing

L40/260 Bead-fixed single-glazing

L40/310 Bead-fixed single-glazing

L40/330 Bead-fixed single-glazing

L40/350 Bead-fixed single-glazing

L40/370 Bead-fixed insulating glass units

L40/371 Bead-fixed insulating glass units

L40/372 Bead-fixed insulating glass units

L40/380 Bead-fixed insulating glass units

L40/381 Bead-fixed insulating glass units

L40/40 Putty-fronted single-glazing

L40/410 Single-glazing into grooves

L40/430 Single-glazing into grooves

L40/450 Single-glazing into grooves

L40/470 Zipper gasket glazing

L40/490 Single-sided gasket glazing

L40/50 Bead-fixed single-glazing

L40/530 Internal tape glazing

L40/55 Bead-fixed insulating glass units

L40/57 Bead-fixed insulating glass units

L40/58 Bead-fixed insulating glass units

L40/90 Internal tape glazing

Specification data - Annealed glass sheets
Product Reference

LamiGlass® Colour

Thickness

6.4 mm

6.8 mm

8.4 mm

8.8 mm

10.4 mm

10.8 mm

12.4 mm

12.8 mm

Interlayer

2165 White (Opal/diffuse)

Core colour.

6544 Grey

Core colour.

3628 Bronze

Core colour.

5558 Light Bronze

Core colour.

3773 Green

Core colour.

0828 Blue Grey

Colour available subject to minimum order.

3609 Dark Brown

Colour available subject to minimum order.

3628 Neutral Brown

Colour available subject to minimum order.

3773 Blue Green

Colour available subject to minimum order.

5538 Light Bronze

Colour available subject to minimum order.

6376 Cool Blue

Colour available subject to minimum order.

6428 Mid Bronze

Colour available subject to minimum order.

7558 Sky Blue

Colour available subject to minimum order.

Standard product features

Glass type:

ExtraClear float.

Size:

- Manufacturer's standard (other sizes available):

  • Jumbo: 3210 x 6000 mm.
  • Split: 3210 x 2250–2550 mm.

Product Options

Thickness/ Interlayer:

LamiGlass® Colour may be available to satisfy other performance requirements, made up of a variety of additional thicknesses or number of PVB interlayers – consult manufacturer for suitability.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 4 2.0
IFC
IFC2X3 3 1.3
