KVA265/110DS
Application

Suitable for use primarily in food, beverage and pharmaceutical factories. Used in both light duty and very heavy duty trafficked areas (depending on the grating chosen).

When used with heelproof gratings it is suitable also for civil projects.

Description

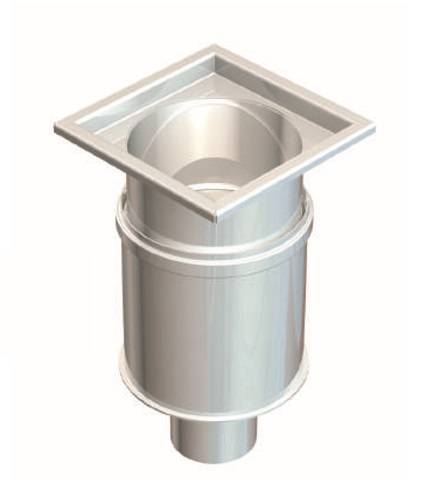

A stainless steel industrial gully. The KVA265/110DS is a round body, square top, bottom outlet gully for heavy duty areas with high flow rates.

Foul air traps:

The bottom outlet gullies use a Bell Trap (also referred to a Dome or Mushroom). A 65 mm water seal is created (complies with EN 1253). This grips firmly to an upstand which is an integral part of the gully body. It is easily removable giving clear access for rodding and cleaning. Chains can be attached to traps to ensure they are not lost.

The side outlet gullies use a Weir Trap system. A 50 mm water seal is created (complies with EN 1253). This is a fully integral part of the gully body and contains a removable bung for easy rodding. In special circumstances a hinged self-sealing stainless bung can be provided.

Features and benefits:

  • Manufactured from grade 1.4301 (304) or 1.4401 (316) stainless steel to BS EN 10088.
  • Strong.
  • Meets the requirements of BS EN 1253 Loading Class L15/ R50/ M125/ N250/ P400. This gully can be subjected to very heavy loads but must have the correct heavy duty grating to achieve these loads.
  • Usable in both heavy and light duty areas.
  • Suitable for internal factory drainage and external civil drainage projects.
  • It is an adjustable height version of the KV220 Gully and allows 65 mm adjustment in height, full 360° rotation of top and tilt of up to 5°. This is most important when the contractor may be uncertain of invert levels particularly in refurbishment projects.
  • It has a deep swage as standard and will accept all 25 mm deep gratings (Perforated, Mesh, Heelproof Mesh, Factory Ladder and Heelproof Ladder).
  • In most cases a 110 mm or 160 mm outlet is required but can be substituted for a 4” or 6” SCH10 outlet pipe. It is trapped as standard with the Kent Bell Trap.

Applications:

Suitable for use primarily in food, beverage and pharmaceutical factories. Used in both light duty and very heavy duty trafficked areas (depending on the grating chosen).

When used with heelproof gratings it is suitable also for civil projects.

General information

Material

1.4301 (304) stainless steel

1.4401 (316) stainless steel

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

Industrial Gully

Type

KVA265/110

KVA315/110

KVA415/160

Height

Manufacturer's standard

Bespoke

Insert requirements.

Material

1.4301 (304) stainless steel

1.4401 (316) stainless steel

Loading class to BS EN 1253

L15

R50

M125

N250

P400

Flange type

4” 150lb R/F S/O ANSI Flange

4” PN10 R/F S/O Flange

Damp proof membrane flange

Holding flange

Puddle flange

Side inlets

-

Type

1½” BSP nipple

1½” BSP socket

50 mm push fit

Above ground funnel

Angle

45°

90°

Bespoke

See 'Options'. Consult manufacturer and insert requirements.

Grating

Extensive range of options available, see 'Options' and insert requirements.

Filter basket

Not required

Required

Required, with chain

Required, with separate filter basket

Accessories

None

Hinged self-sealing stainless bung

For foul air trap on a side out gulley.

Standard product features

Size (h x w x d):

  • KVA265/110 DS: 280–345 x 265 x 220 mm.
  • KVA315/110 DS: 280–345 x 315 x 270 mm.
  • KVA415/160 DS: 280–345 x 415 x 370 mm.

Increased height body is used where a higher flow rate is needed. The gullies can be increased to customized heights. Consult manufacturer for details.

Outlet:

- 110 mm:

  • KVA265/110 DS.
  • KVA315/110 DS.

- 160 mm:

KVA415/160 DS.

Swage:

25.

Flow rate:

  • KVA265/110 DS: 7.94 L/s.
  • KVA315/110 DS: 7.94 L/s.
  • KVA415/160 DS: 19.06 L/s.

Product Options

Flanges:

Base flanges are available with flange connections i.e. 4” / 6” / 8” ANSI B 16.5 or BS 4504 or to suit polypropylene flanges. Consult manufacturer for details.

Side inlets:

- Angle:

  • Side inlets can be 90° to gully body, however, they can be welded at 45° or a specific angle to suit a specific project.
  • Round body gullies are most suitable for a higher number of side inlets at different angles.

Grating:

An extensive range of gratings are available, consult technical literature for details.

Filter basket:

Filter baskets can be incorporated into bell traps or separated for deeper gullies. For a higher flow rate a deeper gully with separate traps and filter baskets are used. The filter basket can also be chained to avoid loss.
