KS1000 FC Insulated Wall Panel System – PIR
Compare variants

KS1000 FC Insulated Wall Panel System – PIR

Kingspan Insulated Panels Variant:

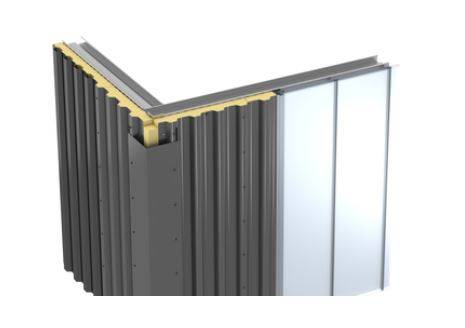

Five Crown / Box Profile is a through-fix recurring box profile insulated wall panel, that integrates seamlessly with KS1000 EP, the intelligent solar air heating insulated panel system.

Jump to:
+44 (0)1352 716100 www.kingspanpanels.co.uk

Application

Suitable for vertical and horizontal applications.

Description

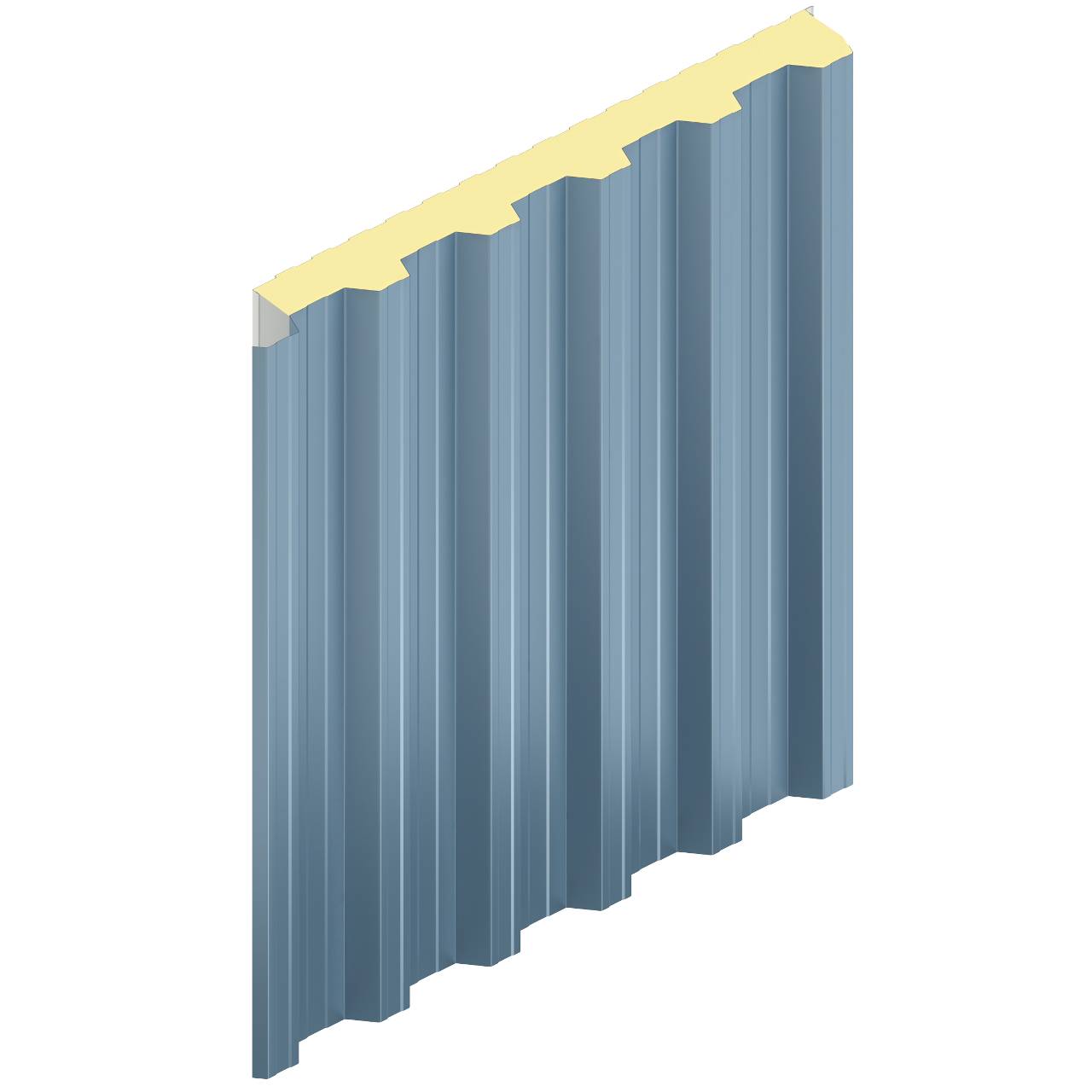

Five Crown/ Box Profile through-fix steel-faced, polyisocyanurate (PIR) insulated wall panel system in a recurring box profile.


Features and benefits:

  • Panels are immune to attack from mould, fungi, mildew and vermin.
  • No urea-formaldehyde is used in the construction.
  • Panels are not deleterious.
  • An air leakage rate of 3 m³/hr/m² at 50 Pa or less can be achieved when the full building envelope is constructed using Kingspan panels.
  • Can be integrated with the KS1000 EP Sol-Air intelligent solar air heating insulated panel system (specified separately).


Approvals:


  • CE marked to BS EN 14509: 2013.

- Fire:


  • LPS 1181: 2014: Part 1: Issue 1.2, series of fire growth tests for LPCB approval and is certified to LPS 1181 Grade EXT-B, and can achieve periods of fire resistance (EXT-A), for further information contact manufacturer's technical services department.
  • Reaction to fire classification according to BS EN 13501–1:2007+A1:2009: B-s2,d0.


Side rails and platforms supports

Framed structure to be specified separately to include the following as required:


  • Multibeam eaves beams.
  • Multibeam side rails.
  • Multichannel side rails.
  • Multichannel trimmers.
  • Multichannel structural partitions.


Warranties:

Kingspan Panel Protection Warranty covering the structural and thermal performance for a period of up to 25 years and Kingspan Coating Warranty for a period of up to 40 years (subject to project specific information).

General information

Material

Steel

PIR

Shape

Rectangular

Size

1000 x 138 mm

WarrantyDescription

25/ 40 years; Kingspan Panel Protection Warranty covering the structural and thermal performance for a period of up to 25 years and Kingspan Coating Warranty for a period of up to 40 years (subject to project specific information).

Uniclass 2015

Ss_25_20_14_54 Metal insulating sandwich panel cladding systemsPrimary

CAWS

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

Specification data - Metal insulating sandwich panel cladding systems Enhanced data

Cladding panels

-

Panel type

External facing:

  • Material: Metallic protected steel to BS EN 10346: 2009.
  • Thickness: 0.5 mm, nominal.


Internal facing:

  • Material: Metallic protected steel to BS EN 10346: 2009.
  • Thickness: 0.4 mm.


Single figure weighted sound reduction index (Rw): 25 dB.

ECOsafe and FIREsafe steel/PIR insulated sandwich panels, 0.19 W/m²K.

Core thickness: 100 mm; overall thickness: 138 mm.

Weight: 12.9 kg/m².

Panel fasteners

Consult manufacturer for installation details and insert requirements (type and number/ location).

-

Side laps sealing

Site-applied sealant.

End laps sealing

Site-applied sealant.

Side lap stitching fasteners

Consult manufacturer for installation details and insert requirements (type and number/ location).

-

End lap stitching fasteners

Consult manufacturer for installation details and insert requirements (type and number/ location).

-

Continuity thermal insulation

Kingspan LPCB or FM Approved PIR board insulation to be installed in certain details to ensure thermal continuity.

Fill any gaps with fire-rated canister insulation. Consult with manufacturer for further details.

System accessories

Consult manufacturer and insert requirements.

-

Product Reference

KS1000 FC Insulated Wall Panel System – PIR

Design

Insert drawing reference or similar.


Length:

  • Standard lengths: 1.8–14.5 m, or insert drawing reference.
  • Non-standard lengths of 14.5–15.0 m or <1.8 m are available on request; consult manufacturer for details.

Digital objects

Platform Compatible Version Certified to
Revit
-

2

2.1
IFC
-

2

2.1
Download now from NBS National BIM Library
