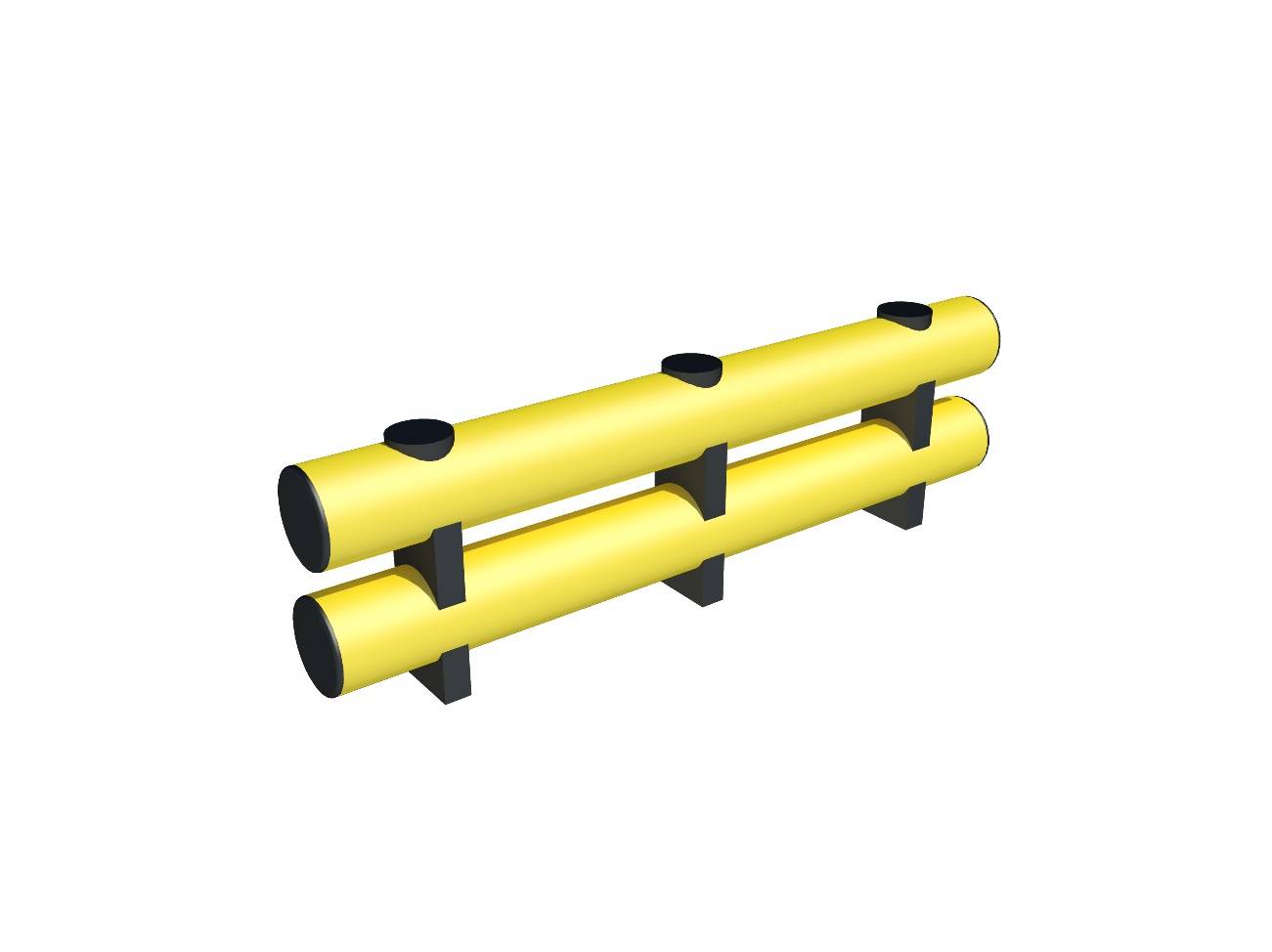

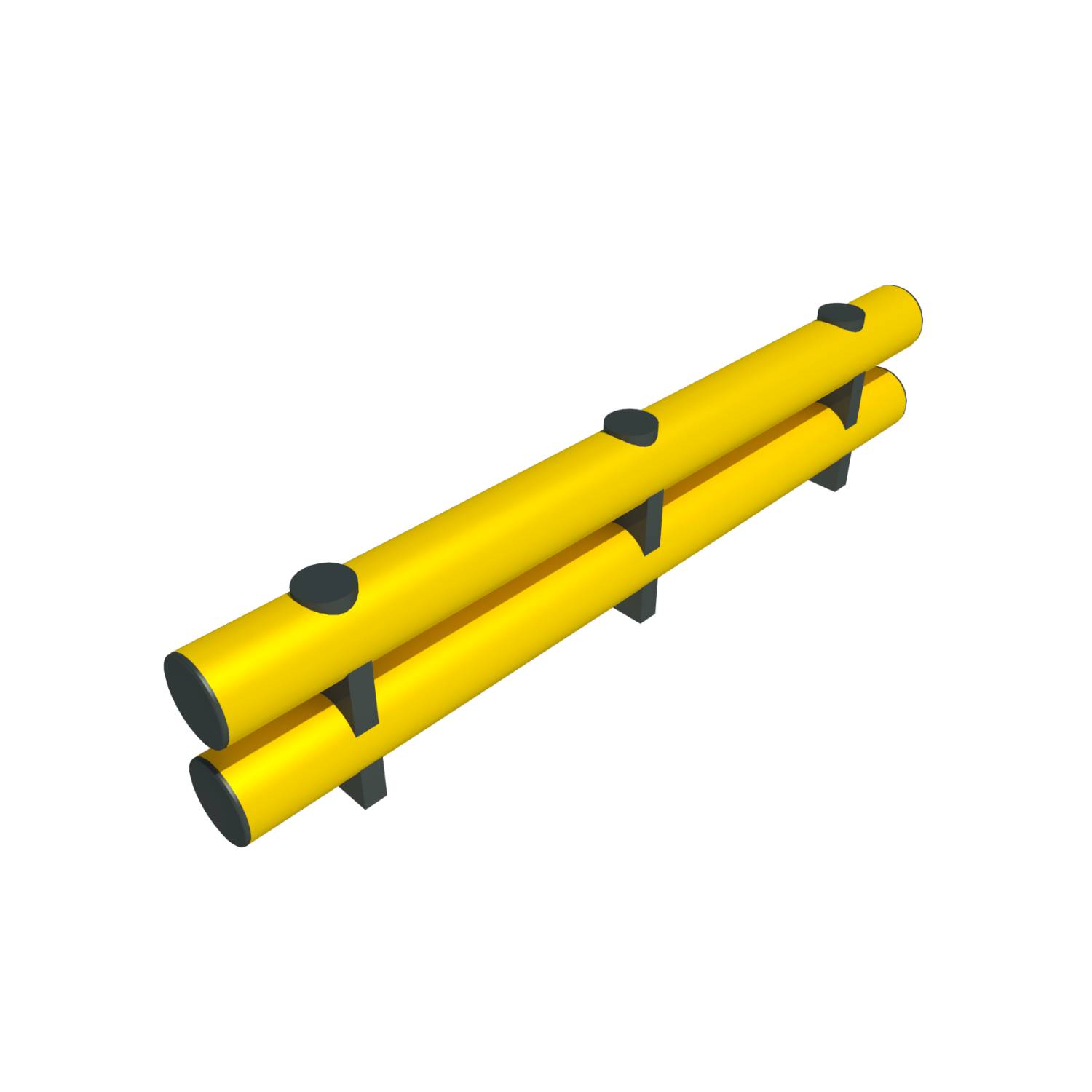

KPSDoubleBarrier-H
Compare variants

Application

Designed for the protection of people, equipment, and assets.

Description

FLEXsafeTM High-Performance flexible protection technology designed to deflect, and safely absorb impacts.


Features and benefits:

  • Available in various lengths, diameters, and heights.
  • Unique “hidden” steel threaded rod anchoring system.
  • Hygienic and easy to clean and maintain.
  • Tested to BS EN 1186-2:2002 and BS EN 1186-3:2002 for food contact.
  • Suitable for temperatures between -100°C to +80°C
  • Zero exposed steel or risk of exposed corrosion.
  • High resistance against acids, alkali, and solvents.
  • 40% recycled polymer content.
  • 100% recyclable at end-of-life.
  • Tested to BS EN ISO 4892-2:2014 for UV Resistance – Zero Discoloration
  • Unique Kingspan IQ Warranty – up to 25 years.
  • Bespoke branding capability.
  • Contact Kingspan for mechanical and impact resistance performance.

General information

Material

High-density polyethylene (PE-HD).

Color

Yellow

Black

Other

Size

∅110/110 x 500 x 330 mm

∅110/110 x 1000 x 330 mm

∅110/110 x 1500 330 mm

∅110/110 x 2000 x 330 mm

∅110/110 x 2500 x 330 mm

Show more

WarrantyDescription

25 years

Unique Kingspan IQ Warranty – up to 25 years

Uniclass 2015

Ss_25_16_94_65 Protective rail systemsPrimary

CAWS

null Proprietary protective barriers

Q41/135 Proprietary protective barriers

Specification data - Protective rail systems Enhanced data

Rails

Protective frames.

Product Reference

KPSDoubleBarrier-H

Steel reinforcement

Steel threaded rod anchoring system, ∅16 mm.

Length below ground

150 mm.

Drill ∅38 mm.

Colour

Yellow.

RAL1021 - standard.

Black.

RAL 9004.

Bespoke.

Other non-standard colours available – Contact Kingspan for further information.

Width

500 mm.

Material

High-density polyethylene (PE-HD).

Height

330 mm.

Environmental information

Recyclability

100%

Recycled content

40
