Knauf AMF Thermatex Sonic
QA Certificate
Certificate type
Ceiling rafts.
For ceilings. Thermatex Sonic Topiq element is suitable for use in foyers and reception areas, restaurants and modern office environments. Thermatex Sonic sky is ideal for use in large ceiling areas.
A range of ceiling rafts that includes:
Thermatex Sonic arc:
Offers a wide variety of design possibilities through varying layouts of concave and convex elements. The rafts are delivered in one piece, guaranteeing simple and quick installation. Flexible stainless steel cables are adjustable to achieve the desired individual height. Available in a variety of colours.

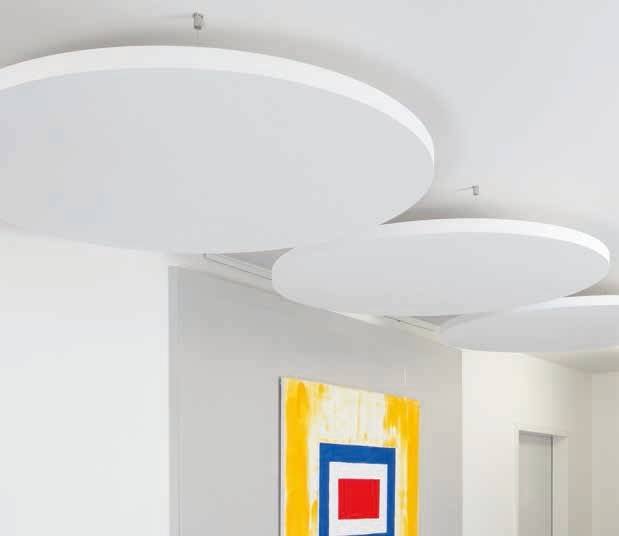

Thermatex Sonic Topiq element:
Frameless and jointless ceiling raft featuring strong edge technology and benefitting from full colour coated face and reverse laminate fleece. The monolithic ceiling raft design has sound absorption properties and, when installed, gives the appearance of a free-floating simple form.
Thermatex Sonic modern:
Mineral ceiling raft with flexible suspension, and installed within an aluminium frame. The rafts are delivered in one piece, ready to install using the hangers provided. Available as standard with a white, fleece-coated surface; however, it can be customized with other colours and printed motifs upon request. The tile's special composition provides sound absorption performance.
Thermatex Sonic sky:
Ideal for use in large ceiling areas and available in a wide variety of colours, forms and surfaces that allows integrated lights and services if desired. The rafts consist of a self-supporting frame fixed to the ceiling with an adjustable suspension system combined with Thermatex Alpha or Alpha HD ceiling tiles. Includes discreet, near-invisible stainless steel cable hangers (a variable suspension system, e.g. included under sloping roof).
Features and benefits:
- Large range of choice.
- Sound absorbing properties.
- Available in a variety of colours.
Application:
For ceilings. Thermatex Sonic Topiq element is suitable for use in foyers and reception areas, restaurants and modern office environments. Thermatex Sonic sky is ideal for use in large ceiling areas.
Features | A range of ceiling rafts that includes: Thermatex Sonic arc, Thermatex Sonic Topiq element, Thermatex Sonic modern and Thermatex Sonic sky |
Finish | Finish is dependent on the range selected (not applicable for the Thermatex Sonic element, natural aluminium anodized E6-EV1 for the Thermatex Sonic modern and sky and or white, similar to RAL 9016) |
Material | A range of ceiling rafts that includes: flexible stainless steel cables (Thermatex Sonic arc), aluminium frame and mineral tile (Thermatex Sonic modern) and almost invisible stainless steel cable hangers (Thermatex Sonic sky) |
Shape | Varying layouts of concave and convex elements |
Size | Dependent on type specified |
WarrantyDescription | Material: 15-year warranty, System: 30-year warranty |
Uniclass 2015 | |
CAWS | K40/135 Board-suspended ceiling system |
Product Reference | Knauf AMF Thermatex Sonic arcKnauf AMF Thermatex Topiq Sonic element, circleKnauf AMF Thermatex Topiq Sonic element, squareKnauf AMF Thermatex Sonic modernKnauf AMF Thermatex Topiq Sonic square/ rectangularKnauf AMF Thermatex Topiq Sonic trapezoidSpecial form. Knauf AMF Thermatex Topiq Sonic triangleSpecial form. Knauf AMF Thermatex Topiq Sonic prismSpecial form. |
Suspension grid | Flexible suspensionThermatex Sonic element. Flexible suspensionThermatex Sonic element. Variable suspension system, e.g. included under sloping roofThermatex Sonic sky. Fully adjustable to enable the desired individual heightThermatex Sonic arc. |
Surface | - |
Type | Fleece coated, crèmeThermatex Sonic arc. Fleece coated, silverThermatex Sonic arc. Fleece coated, whiteThermatex Sonic arc, element and modern. PrintedThermatex Sonic modern. Thermatex Alpha, blackThermatex Sonic sky. Thermatex Alpha HD, blackThermatex Sonic sky. Thermatex Alpha, crèmeThermatex Sonic sky. Thermatex Alpha HD, crèmeThermatex Sonic sky. Thermatex Alpha, silverThermatex Sonic sky. Thermatex Alpha HD, silverThermatex Sonic sky. Thermatex Alpha, whiteThermatex Sonic sky. Thermatex Alpha HD, whiteThermatex Sonic sky. |
Tile size | Not applicableDelete sub-property if specifying Thermatex Sonic arc, element or modern. Topiq. 300 x 1500 mm - For Thermatex Sonic sky only300 x 1800 mm - For Thermatex Sonic sky only600 x 600 mm - For Thermatex Sonic sky only |
Weight | 14.0 kg (approximately, including tiles and cables)Thermatex Sonic arc. 11.0 kgThermatex Topiq Sonic element. 7- 23 kg, depending on sizeThermatex Sonic modern. 8 kg (approximately, depending on raft size and tile type)Thermatex Sonic sky. |
RelativeHumidity | 90% relative humidity (maximum) - Thermatex Sonic arc;95% relative humidity (maximum) - Thermatex Topiq Sonic element and modern |
Fire safety (to EN 13501-1) | A2-s1,d0 - Thermatex Sonic modern and sky;C-s1,d0 when printed - Thermatex Sonic modern only |
Overall size | 600 x 1200 mmThermatex Sonic modern. 1200 x 1200 mmThermatex Sonic modern and sky. 1200 x 1800 mmThermatex Sonic modern. 1200 x 2400 mmThermatex Sonic modern and sky. 1200 mm diameterThermatex Topiq Sonic element. 1180 x 1180 mmThermatex Topiq Sonic element. 1200 x 2400 mmThermatex Sonic modern and sky. 1910 x 1180 mmThermatex Sonic arc concave and convex. 2000 x 1500 mmThermatex Sonic sky. 2400 x 1200 mmThermatex Sonic sky. 2400 x 1800 mmThermatex Sonic sky. |
Colour/ Finish | - |
Frame | Not applicableThermatex Sonic element. Natural aluminium anodized E6-EV1Thermatex Sonic modern and sky. WhiteSimilar to RAL 9016. |
Edge | Optionally available with Thermatex Sonic element, insert requirements or delete if not required. |
Sound absorption | To EN ISO 354, consult manufacturer's literature for details |
Standard product features | Colour: Thermatex Sonic arc: Anodized white similar to RAL 9016. Thermatex Sonic element: White similar to RAL 9010. Thermatex Sonic modern and sky: Natural aluminium anodized E6-EV1 or white similar to RAL 9016. Other colours for arc, modern and sky are available on request. Features: A range of ceiling rafts that includes: Thermatex Sonic arc, Thermatex Sonic Topiq element, Thermatex Sonic modern and Thermatex Sonic sky. Finish: Finish is dependent on the range selected (not applicable for the Thermatex Sonic element, natural aluminium anodized E6-EV1 for the Thermatex Sonic modern and sky and or white, similar to RAL 9016). Material: A range of ceiling rafts that includes: flexible stainless steel cables (Thermatex Sonic arc), aluminium frame and mineral tile (Thermatex Sonic modern) and almost invisible stainless steel cable hangers (Thermatex Sonic sky). Shape: Varying layouts of concave and convex elements. Size: Dependent on type specified. Warranty description: Material: 15-year warranty, System: 30-year warranty. Red listed materials: No. Country of origin: Germany. |
- Der Blaue Engel: Certified
- Regulation (EC) No 1272/2008: RAL-GZ certified
