Kingspan Kooltherm Pipe

Third party certifications:
  • QA Certificate

    Certificate type

Kingspan Insulation

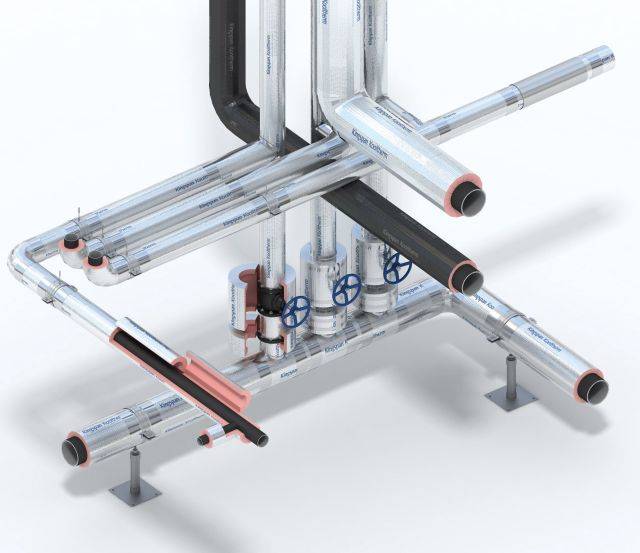

Pipe insulation system suitable for new builds and refurbishments in the residential, commercial, institutional and industrial sectors.

Jump to:
+44 (0)1544 388601 www.kingspaninsulation.co.uk
Application

Pipe insulation system suitable for new build and refurbishment projects in the residential, commercial, institutional and industrial sectors.

Description

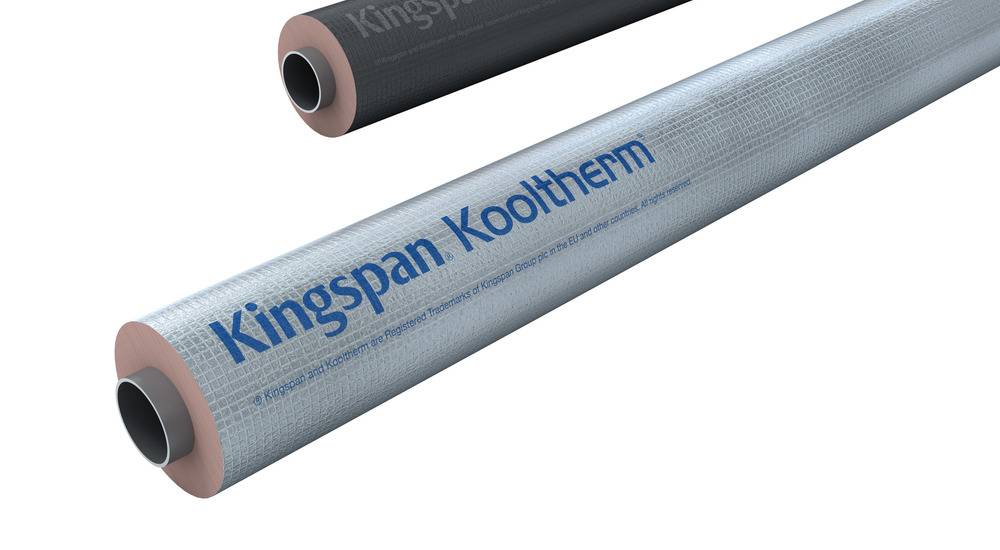

System comprising insulation manufactured from Kooltherm rigid phenolic insulation and insulated pipe support inserts fabricated from Kooltherm high density rigid phenolic insulation and Kooltherm FireSleeves.

Insulation is suitable for mild steel, stainless steel, copper and plastic pipework for cold, chilled, refrigeration, heating and hot water services. The pipe support inserts are used in pipe hanger brackets for load bearing applications and will support the compressive loads imposed by horizontal pipework carrying water or other liquids.

Standards:

Kingspan Kooltherm pipe insulation / Pipe support inserts / FireSleeves are manufactured to the highest standards under a quality control system certified to:

  • BS EN ISO 9001: 2015 (Quality Management Systems. Requirements).
  • BS EN ISO 14001: 2015 (Environmental Management Systems. Requirements).
  • BS OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements).

Sustainability:

CFC-free and HCFC-free with zero ozone depleting potential (zero ODP) and a global warming potential (GWP) of ≤5.

Green Guide rating:

BRE Global Green Guide Rating of A+.

Ecoprofile:

The score obtained by Kingspan Kooltherm Pipe Insulation from the BRE Global Environmental Profiles Methodology life cycle assessment is available online at Green Book Live, Certificate no. 523. The lower the ecopoints, the lower the environmental impact.

Approvals:

  • KIWA Agrément certificate BAP 15-036/01/C.
  • LABC Registered detail RD certificate number EWW382.
  • FM approval to FM approval class 4924.
  • Eurofins Indoor Air Comfort Gold.
  • LEED v4.

Application:

Pipe insulation system suitable for new build and refurbishment projects in the residential, commercial, institutional and industrial sectors.

General information
Finish

Varies

Color

Pink/Grey

Material

Phenolic Foam

Shape

Varies

Uniclass 2015 Phenolic foam insulation (Pr_80_77_76_62)
Specification data
Product Reference

Kooltherm Pipe Kooltherm-Aluminium

Kooltherm Pipe Kooltherm-BlackAluminium

Kooltherm Pipe Kooltherm-Triplex

Kooltherm Pipe Kooltherm60-Aluminium

Kooltherm Pipe Kooltherm60-Aluminium

Kooltherm Pipe Kooltherm60-Black Aluminium

Kooltherm Pipe Kooltherm60-Triplex

Kooltherm Pipe Kooltherm80-Aluminium

Kooltherm Pipe Kooltherm80-Black Aluminium

Kooltherm Pipe Kooltherm80-Triplex

Kooltherm Pipe Kooltherm120-Aluminium

Kooltherm Pipe Kooltherm120-Black Aluminium

Kooltherm Pipe Kooltherm120-Triplex

Standard

BS EN ISO 9001: 2015 (Quality management systems. Requirements), BS EN ISO 14001: 2015 (Environmental Management Systems. Requirements), BS OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements), BS EN 14314:2009+A1:2013

ThermalConductivity

0.025 W/m·K

Insulation thickness (minimum)

15 mm

Vapour barrier material

Factory-applied aluminium foil

Vapour barrier vapour permeability

Low

Protection

For external application the insulation must be covered with a waterproof finish

Density

Depending on Type, 37–120 kg/m³

Reaction to fire classification

Euroclass RtF BL-s1, d0

FM approved

FM approved to Factory Mutual (FM) Research Standard 4924 when manufactured and installed in accordance with the conditions defined by the approval. It is a low fire hazard product acceptable in itself, without requiring automatic sprinkler protection

Global warming potential

≤5

Green guide rating

A+/A depending on temperature application and pipe dimension

Ozone depletion potential

Zero

Closed cell content

≥90%

Third party product certification

Eurofins Gold

Standard product features

Colour:

Pink and grey.

Material:

Phenolic foam.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 2.1
Download now from NBS National BIM Library
Third party certifications
  • FM: FM approved to Factory Mutual (FM) Research Standard 4924
