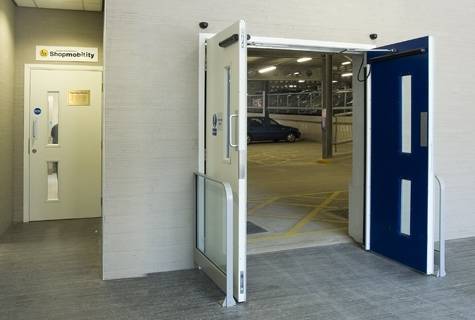

Integra Steel Doorset
Certifire Certificate
Certificate type
Zintec steel doorset.
- Education.
- Workplace.
- Healthcare.
- Hospitality.
- Leisure/ sport.
Doorset manufactured from corrosion resistant zintec steel sheets, fire-rated up to FD120.
Features:
- Factory assembled doorset.
- Fully factory prepared for mortice ironmongery, including lock cases, flush bolts and floor springs. Door leaf face prepared for lever handles and cylinders.
- Rebated frame.
- Single, leaf and a half, and double configurations are available either single or double swing.
- A wide variety of sizes and shapes of vision panel are available.
- Matching framed glazed screens available.
Certification:
- Certifire approved.
- NFR, FD30, FD60 and FD120 options available.
- Acoustic rating up to 50 dB Rw sound reduction.
Applications:
- Education.
- Workplace.
- Healthcare.
- Hospitality.
- Leisure/ sport.
| Size | As drawing Insert reference. As schedule Insert reference. |
| Features | Factory assembled doorset Fully factory prepared for mortice ironmongery, including lock cases, flush bolts and floor springs. Door leaf face prepared for lever handles and cylinders Rebated frame Single, leaf and a half, and double configurations are available either single or double swing A wide variety of sizes and shapes of vision panel are available Matching framed glazed screens available |
| Uniclass 2015 | |
| CAWS | L20/480 Doorsets L20/55 Doorsets |
| Product Reference | Integra Steel Doorset |
| Size | As drawingInsert reference. As scheduleInsert reference. |
| Configuration | EP-DAEqual pair, double action. EPOT-DAEqual pair, double action with transom and overpanel or fanlight. EPOT-SAEqual pair, single action with transom and overpanel or fanlight. EP-SAEqual pair, single action. S-DASingle leaf, double action. S-SASingle leaf, single action. SOT-DASingle leaf, double action with transom and overpanel or fanlight. SOT-SASingle leaf, single action with transom and overpanel or fanlight. UEP-DAUnequal pair, double action. UEP-SAUnequal pair, single action. UEPOT-DAUnequal pair, double action with transom and overpanel or fanlight. UEPOT-SAUnequal pair, single action with transom and overpanel or fanlight. |
| FireRating | NFRFD30FD60FD120 |
| AcousticRating | None30 dB Rw35 dB Rw45 dB Rw50 dB Rw |
| Door leaf | - |
| Thickness | 48 mm52 mmFor 45 dB Rw only. 56 mmFor 35 dB Rw only. 100 mmFor 50 dB Rw only. |
| Finish | RALInsert RAL colour requirements. SSSSatin stainless steel. |
| Frame | - |
| FrameType | F-SAF-DASafehinge double action. F-SAF-SASafehinge lining with separate stop, single action. F-Type TwoRebated lining with integral stop. |
| FrameMaterial | HL-ABWHardwood (American black walnut), matt clear lacquer. HL-AWAHardwood (American white ash), matt clear lacquer. HL-AWOHardwood (American white oak), matt clear lacquer. HL-CHardwood (cherry), matt clear lacquer. HL-EOHardwood (European oak), matt clear lacquer. HL-MHardwood (maple), matt clear lacquer. HL-SBHardwood (steamed beech), matt clear lacquer. MDF-PMoisture resistant MDF, primed for site painting. SSteel. S-PSustainable softwood, primed for site painting. Special orderInsert hardwood and finish requirements. |
| Vision panel | - |
| Type | VIST-400Vistamatic privacy, 400 x 400 mm. VIST-2580Vistamatic privacy, 250 x 800 mm. VP-AVP-BVP-CVP-DVP-EVP-FVP-GVP-HSpecial orderInsert requirement. |
| Glazing | ICClear insulated glass to suit fire and acoustic performance requirements. PCClear security glass to suit fire, acoustic, security performance requirements. SCClear glass to suit fire and acoustic performance requirements. Special orderInsert requirement. |
| Hinges and hanging hardware | DAFSDouble action floor spring set. DAPSDouble action pivot set (non-self-closing for non-fire-rated doors). DATCDouble action transom closer set. FPHVisible fixed pin butt hinges to BS EN 1935, grade 13. LOHVisible lift-off butt hinges to BS EN 1935, grade 11. |
| Ironmongery | Insert requirement, contact manufacturer for information. |
| Standard product features | Vision panel beading: GB-Type One, Glazing bead – bolection. |
- Approved
