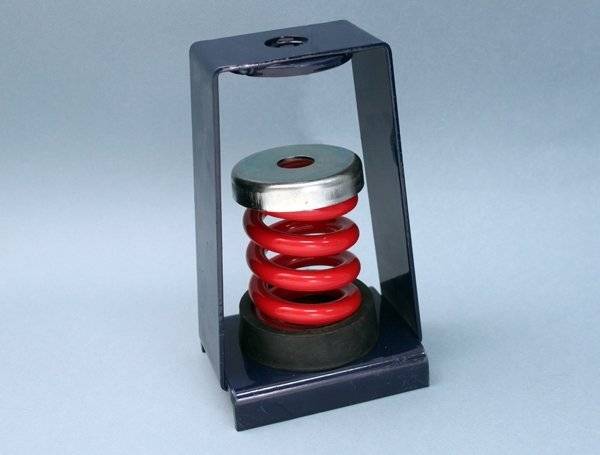

HS – Spring Hanger
Description

The HS series of spring hanger allows for a wide range of springs to be used to suit both acoustic and load requirements. Springs can react quickly enough to absorb impact and can also absorb low frequency noise. Spring hangers are used when isolation is required against low frequency noise/vibration. Typical sources would be footfalls from above or vibration in pipes from pumped fluids. They feature a neoprene cup, required to absorb high frequency noise. This extends through the hanger box which ensures that the hanger rod does not contact the hanger box. The load capacity ranges from 5kg up to 5336kg for multiple spring variants.

General information

Color

Brown

Features

All springs have additional travel to solid equal to 50% of rated deflection

Material

Steel

Size

64 x 108 x 73 mm

Uniclass 2015

Pr_80_77_94_42 Isolation hangersPrimary
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
