Heritage 2800 Decorative Residential Door - R7 Open In Verified by manufacturer 15 days ago
Verified by manufacturer 15 days ago
BSI Kitemark
Certificate type

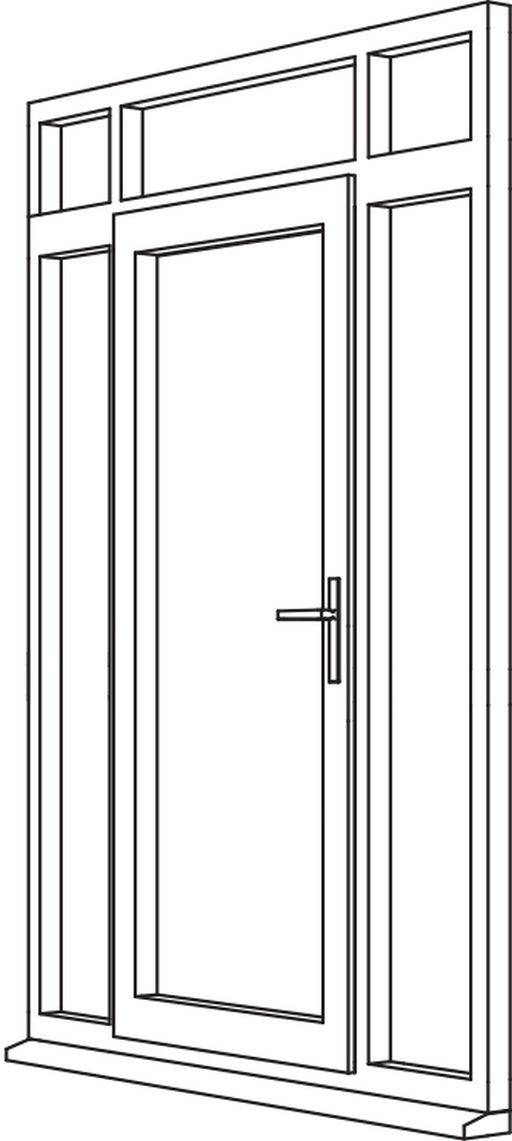

Single opening style door with a combined fan light, double side light and decorative design frame.
Application
For residential use.
Description
PVC-U single residential doors, available in range of styles in three standard finishes.
Years of research and development has resulted in a technically advanced system ideal for commercial projects.
With one sash size (110 mm), two frame sizes (55 mm & 70 mm), a slim (70 mm) intermediate (85 mm) or large (110 mm) transom/mullion and a low threshold option.
Features and benefits:
- The Heritage 2800 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
- The system is available in 26 laminate colourways from stock providing the ultimate convenience regarding supply.
- BSI Kitemark.
General information
Shape | Rectangle |
Color | White Other Laminated foil, Decoroc colour (RAL). |
Material | PVC-U |
WarrantyDescription | Manufacturer warranty. |
Size | As drawing. Maximum tested size: 900 x 2150 mm. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets
Third party accreditation | BSI Kitemark. |
Standard | To BS 7412. |
Configuration | Single leaf, single action. |
Doorset size | As drawing.Maximum tested sizes; single leaf (W x H): 900 x 2150 mm. Coupled side panels: 1100 x 2150 mm. |
Performance | - |
Acoustic performance | 32—43 dB. |
Strength and durability | To BS 6375-3. |
Thermal |
|
Intruder resistance | - |
Minimum requirement | In accordance with BS 6375-3 and to PAS 24. |
Accessibility | Doc M Compliant.Low threshold to suit inward and outward opening doors to improve access for the disabled and wheelchair users. |
Frame | - |
Materials | Steel core with PVC-U sleeve.Galvanized steel. |
Threshold | Not required.2976 AM3-70 open-in low threshold.2977 AM5EX-70 open-out low threshold.14647 Low threshold. |
Perimeter seals or inserts | Impregnated foam seal/tape.Flexible membrane. |
Finish and colour | White - RAL 9016.As standard. Laminated foil.Insert requirement. Decoroc colour (RAL).Insert requirement. |
Installation fasteners | Through frame fasteners.Fixing lug. |
Frame accessories | Trickle ventilator. |
Door leaf | - |
Thickness | 70 mm. |
Core | Galvanized steel. |
Material | High-performance integral multifunctional seal/ gasket. |
Finish | White - RAL 9016.As standard. Laminated foil.Insert requirement. Decoroc colour (RAL).Insert requirement. |
Architraves | - |
Material | PVC-UE. |
Finish | White - RAL 9016.As standard. Laminated foil.Insert requirement. Decoroc colour (RAL).Insert requirement. |
Glazing | - |
Type | Single glazed.Double glazed.Triple glazed. |
Beading | Internal. |
Hardware |
|
Perimeter seals | High-performance integral multifunctional seal/ gasket. |
Installation fasteners | Through frame fasteners, Fixing lug. |
Accessories | Not required.Head drip.Weather bar.Architrave finishing trims.Georgian barsLeaded lights. |
Opening | Inward. |
TypeDoor frame type. | Standard frame. Fanlight frame. Sidelight frame. |
CouplingsDoor frame couplings. | Not required. 3310 Slimline coupler. 3312 Slimline coupler. 3197 Slimline coupler. 3705 Reinforced coupler. |
ExtensionsDoor frame extensions. | Not required. 2455 Head section. Accommodates proprietary trickle ventilators. 3300 Add-on. Allows additional clearance for hinges. 3301 Add-on. Accommodates proprietary trickle ventilators. 3302 Add-on. Frame build-up for conservatories. |
Outer frame size | 55 mm. 70 mm. 85 mm. |
Transom/ mullion size | 70 mm. 85 mm. 110 mm. |
Architraves | Not required. 1044 D-mould. 30 mm wide. 1087 Architrave. 40 mm wide. 1178 Quadrant. 19 mm. 3341 Add-on. Architrave adaptor. |
Bay window corner posts | Not required. 3313/3327 Slimline bay pole and adaptor. Angles from 138°-222°. 6916/ 3311 Bay pole and adaptor. Angles from 90°-270°. 6920 90° Square corner post. 3196 Bay post. Fixed 135° angle. |
Weather bars | Not required. 3303 Head drip. 3306 Weather bar. |
Projecting sill | Not required. 3338 Projecting sill. 150 mm. 3339 Projecting sill. 180 mm. 3258 End cap. For 3338 Projecting sill. 3259 End cap. For 3339 Projecting sill. |
Stub-sill | Not required. 3337 Stub-sill. 95 mm. 3257 End cap. For 3337 Stub-sill. |
OptionsGlazing options. | Not required. Georgian bar. Leaded lights. |
Ironmongery | As section P21. |
Ventilation | Not required. Proprietary ventilation device. |
ProfileFrame profile. | Decorative. |
TypeBeading type. | Decorative 28 mm. As standard. Other. Other styles available for other glazing thicknesses. |
ThicknessGlazing thickness. | 3—40 mm. |
Air permeability | To BS 6375-1, Class 4 (600 Pa). |
UK exposure category | To BS 6375-1, Class A3 (1200 Pa). |
Watertightness | To BS 6375-1, Class E1050 (1050 Pa). |
ThermalTransmittance | 0.98. |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | IFC2X3 | 1 | 1.3 |
 Revit | Revit 2016 | 2 | 2.0 |
Literature
10. Specification Guide - Heritage 2800 decorative series windows & doors
Third party certifications
BSI Kitemark
PAS24 certificate - Doors
