Hawa Frontslide 60 Matic Telescopic

Application

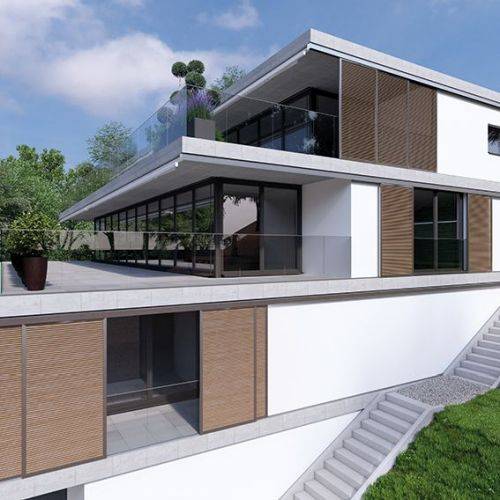

Suitable for facades with a high proportion of glass, and areas where screening and shade form part of the facade design, such as:

  • Schools.
  • Hotels.
  • Public buildings.
  • Office and administration premises
  • Apartment buildings.
  • Low-energy houses.

Description

Hardware for the simultaneous, automatic sliding of up to four wood, metal or aluminium shutters weighing up to 60 kg. Panel width: 650–1200 mm. Maximum height: 3200 mm. Suitable for shutter thickness of 28–40 mm.

Features and benefits:

  • Automatic operation.
  • The shutters slide simultaneously into the open and closed position.
  • The brushless electric motor, high-quality transmission system and drive belt help to guarantee a stable, maintenance free system with a long life. No connection cables or control box are required as the controls are integrated in the drive unit.
  • An angled profile support is available for mounting two-panelled Hawa Telescopic systems to the wall. In this case, the top track is fastened to the angled profile support using mounting screws.
  • Aluminium covering screens in either natural anodized or plain finishes ready for custom painting provide aesthetic appeal and are easily clipped on to the inside or outside of the top track.
  • Fibreglass-reinforced toothed belts guarantee high tensile strength and a low level of expansion.
  • Shutters can be removed without loosening the toothed belt.
  • Can be moved telescopically into any position.
  • Fast and efficient assembly from below and from the facade side.
  • Clip-on covers for inside or outside attachment.
  • High level of wind resistance (Class 6).
  • CE marked drive unit.

Components:

Quantities vary depending on variant specified - consult manufacturer for details.

  • Two-wheeled trolley, M8, with plastic wheels.
  • Top fixing plate, stainless steel, with hanger bolt M8
  • Toothed belt clamp for manual and automatic systems.
  • Guide pulley wheel, with fixing plate, long.
  • Guide pulley wheel, with fixing plate, short.
  • Driver, wide.
  • Driver, narrow.
  • Driver counter-plate, wide.
  • Toothed belt, black, 2.7 m, fibreglass reinforced (standard, other lengths available
  • Drive unit.

Applications:

Suitable for facades with a high proportion of glass, and areas where screening and shade form part of the facade design, such as:

  • Schools.
  • Hotels.
  • Public buildings.
  • Office and administration premises
  • Apartment buildings.
  • Low-energy houses.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

Hawa Frontslide 60/matic Telescopic 2 (25135)

Set for two sliding shutters, maximum weight 60 kg each.

Hawa Frontslide 60/matic Telescopic 3 (25136)

Set for three sliding shutters, maximum weight 50 kg each.

Hawa Frontslide 60/matic Telescopic 4 (25137)

Set for four sliding shutters, maximum weight 40 kg each.

Drive unit

Hawa Motronic 60 (25146)

Includes control unit, toothed belt lock and pulley wheel.

Top track

3500 mm

6000 mm

Cut to size

Insert requirements.

Bottom guide channel

6000 mm

Cut to size

Insert requirements.

Covering screen

-

Type/ Material

Not required

Aluminium, plain anodized

Aluminium, unanodized

Length

Not required

3500 mm

Plain anodized only.

6000 mm

Cut to size

Insert requirements.

Toothed belt

2.7 m

Standard.

5 m

8 m

10 m

15 m

50 m

Accessories/ Other requirements

Not required

Angled profile support, 6000 mm

Available aluminium plain anodized or aluminium unanodized, insert requirements.

Angled profile support, cut to size

Available aluminium plain anodized or aluminium unanodized, insert requirements.

Cover fixings

Required for attaching the covering screens.

Connecting bolts

Fixing screws for securing top track to angled profile support

Floor guide unit, long

For use with bottom guide channel.

Floor guide unit, short

For use with bottom guide channel.

Front cover plates

For wall fitting, for two sliding levels. Available aluminium plain anodized or aluminium unanodized, insert requirements.

Parts for fitting top track cover

Screw-on guide slider

Standard product features

Configuration:

Sliding, automatic.

Product Options

Drive unit:

Drive unit with integrated control for automatic sliding hardware with a speed of 100 mm/s, and a maximum drive force of 100 N. Drive commands are triggered by applying a current to the control wires. The Hawa Motronic 60 drive automatically detects the end position of the sliding shutter during the teach-in process. The drive stops and reverses two times when it encounters an obstacle. Consult manufacturer for further details.

Top track/ bottom guide channel:

Aluminium, plain anodized, predrilled. The top track can be installed either with or without covering screens.

Accessories/ Other requirements

Other accessories and spares are also available, consult manufacturer for details.
