HAWA Frontslide 60 A Symmetric

HAWA Frontslide 60 A Symmetric

Hawa Sliding Solutions AG

Hardware for the symmetrical, manual sliding of two or four wood, metal or aluminium shutters weighing up to 60 kg (two) or 40 kg (four) per panel.

Jump to:
+41 44 787 17 17 www.hawa.com
Application

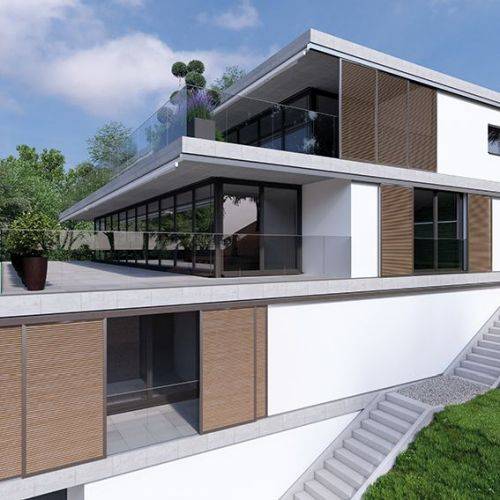

Suitable for facades and areas where screening and shade form part of the facade design, such as:

  • Schools.
  • Hotels.
  • Public buildings.
  • Office and administration premises.
  • Apartment buildings.
  • Low-energy houses.

Description

Hardware for the symmetrical, manual sliding of two or four wood, metal or aluminium shutters weighing up to 60 kg (two) or 40 kg (four) per panel. Minimum panel width: 500 mm (Frontslide 60 A Symmetric 2); 550–1000 (Frontslide 60 A Symmetric 2+2). Maximum height: 3200 mm. Maximum installation width: 6000 mm. Suitable for shutter thickness of 28–45 mm (Frontslide 60 A Symmetric 2); 28–40 mm (Frontslide 60 A Symmetric 2+2).

Features and benefits:

  • Manually operated.
  • Shutters can slide simultaneously to the left and right.
  • For attachment to the ceiling or window lintel - the top track screws directly to the loadbearing surface.
  • An angled profile support is available for mounting to the wall. In this case, the top track is fastened to the angled profile support using mounting screws.
  • Aluminium covering screens in either natural anodized or plain finishes ready for custom painting provide aesthetic appeal and are easily clipped on to the inside or outside of the top track.
  • In buildings with an air gap behind the facade, open window shutters can slide out of sight into the space between the building wall and the facade.
  • Manufactured from corrosion resistant materials.
  • Fibreglass-reinforced toothed belts guarantee high tensile strength and a low level of expansion.
  • Shutters can be removed without loosening the toothed belt.
  • Can be moved symmetrically into any position.
  • Fast and efficient assembly from below and from the facade side.
  • Clip-on covers for inside or outside attachment.
  • High level of wind resistance (Class 6).

Components:

Quantities vary depending on variant specified - consult manufacturer for details.

  • Two-wheeled trolley, M8, with plastic wheels.
  • Top fixing plate, stainless steel, with hanger bolt M8.
  • Track stop with adjustable retainer.
  • Guide pulley wheel matching with top track.
  • Guide pulley wheel, with fixing plate, long (25119 only).
  • Guide pulley wheel, with fixing plate, short (25119 only).
  • Driver counter-plate, wide (25119 only).
  • Driver, wide (25119 only).
  • Driver, laterally adjustable, for manual systems.
  • Toothed belt lock for manual systems.
  • Toothed belt clamp for manual and automatic systems (25119 only).
  • Toothed belt, black, 2.7 m, fibreglass reinforced (25119 only).

Applications:

Suitable for facades and areas where screening and shade form part of the facade design, such as:

  • Schools.
  • Hotels.
  • Public buildings.
  • Office and administration premises.
  • Apartment buildings.
  • Low-energy houses.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

HAWA Frontslide 60 A Symmetric 2 (25118)

Partial set for two sliding shutters of maximum 60 kg each.

HAWA Frontslide 60 A Symmetric 2+2 (25119)

Partial set for four sliding shutters of maximum 40 kg each.

Top track

3500 mm

6000 mm

Cut to size

Insert requirements.

Bottom guide channel

6000 mm

Cut to size

Insert requirements.

Covering screen

-

Type/ Material

Not required

Aluminium, plain anodized

Aluminium, unanodized

Length

Not required

3500 mm

Plain anodized only.

6000 mm

Cut to size

Insert requirements.

Toothed belt

2.7 m

Standard.

5 m

8 m

10 m

15 m

50 m

Accessories/ Other requirements

Not required

Angled profile support, 6000 mm

Available aluminium plain anodized or aluminium unanodized, insert requirements.

Angled profile support, cut to size

Available aluminium plain anodized or aluminium unanodized, insert requirements

Catch for sliding shutter

Stainless steel, with fixing screws.

Cover fixings

Required for attaching the covering screens.

Connecting bolts

Fixing screws for securing top track to angled profile support

Floor guide unit, long

For use with bottom guide channel.

Floor guide unit, short

For use with bottom guide channel

Front cover plates

For wall or ceiling fitting. Available aluminium plain anodized or aluminium unanodized, insert requirements.

Parts for fitting top track cover

Screw-on guide slider

Sliding shutter lock

Automatically engages as the shutters close and can be released from the room interior side only using a pull-cord.

Spacer profile for angled support

Available 6000 mm or cut to size, insert requirements

Sliding shutter locking device

Designed to lock sliding shutters in any position on the track. Available 800 or 1200 mm, insert requirements.

Standard product features

Configuration:

Sliding, manual.

Product Options

Top track/ bottom guide channel:

Aluminium, plain anodized, predrilled. The top track can be installed either with or without covering screens.

Accessories/ Other requirements:

- Sliding shutter lock:

This system prevents shutters from opening by themselves, even under the most adverse wind conditions.

Other accessories and spares are also available, consult manufacturer for details
