HAWA Frontslide 100 Matic Symmetric
Hardware for the symmetrical, automatic sliding of two or four wood, metal or aluminium shutters weighing up to 80 kg (two) or 70 kg (four) per panel.

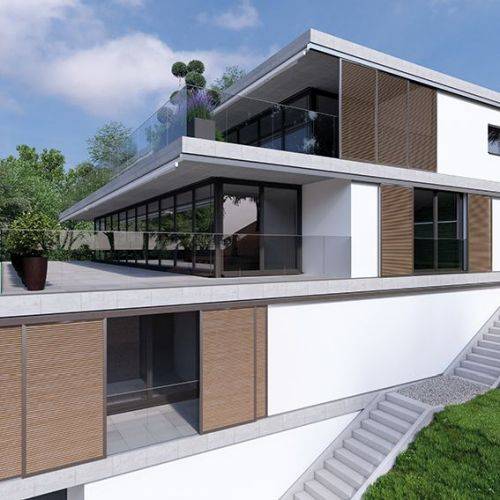

Suitable for facades with a high proportion of glass, and areas where screening and shade form part of the facade design, such as:
- Schools.
- Hotels.
- Public buildings.
- Office and administration premises.
- Apartment buildings.
- Low-energy houses.
Hardware for the symmetrical, automatic sliding of two or four wood, metal or aluminium shutters weighing up to 80 kg (two) or 70 kg (four) per panel. Minimum panel width: 600 mm (Frontslide 100/matic Symmetric 2); 650–1200 mm (Frontslide 60/matic Symmetric 2+2). Maximum height: 3200 mm. Maximum installation width: 7500 mm. Suitable for shutter thickness of 28–50 mm (Frontslide 100/matic Symmetric 2); 28–40 mm (Frontslide 100/matic Symmetric 2+2).
Features and benefits:
- Automatic operation.
- Shutters can slide simultaneously to the left and right.
- The brushless electric motor, high-quality transmission system and drive belt help to guarantee a stable, maintenance free system with a long life. No connection cables or control box are required as the controls are integrated in the drive unit.
- Aluminium covering screens in either natural anodized or plain finishes ready for custom painting provide aesthetic appeal and are easily clipped on to the inside or outside of the top track.
- Fibreglass-reinforced toothed belts guarantee high tensile strength and a low level of expansion.
- High operating safety of the drive unit in outdoor areas due to splash water resistance.
- Shutters can be removed without loosening the toothed belt.
- Can be moved symmetrically into any position.
- Straightforward wall or ceiling installation.
- Clip-on covers for inside or outside attachment.
- High level of wind resistance (Class 6).
- CE marked drive unit.
Components:
Quantities vary depending on variant specified - consult manufacturer for details.
- Two-wheeled trolley, M10, with plastic wheels.
- Top fixing plate, stainless steel, with hanger bolt M10.
- Guide pulley wheel, with fixing plate, long (25140 only).
- Guide pulley wheel, with fixing plate, extra-long (25140 only).
- Guide pulley wheel, with fixing plate, short (25140 only).
- Driver counter-plate, wide (25140 only).
- Driver for symmetric installations.
- Driver, wide (25140 only).
- Toothed belt clamp for manual and automatic systems (25140 only).
- Toothed belt, black, 2.7 m, fibreglass reinforced (25140 only).
- Toothed belt, black, 5 m, fibreglass reinforced (25140 only).
Applications:
Suitable for facades with a high proportion of glass, and areas where screening and shade form part of the facade design, such as:
- Schools.
- Hotels.
- Public buildings.
- Office and administration premises.
- Apartment buildings.
- Low-energy houses.
Uniclass 2015 | |
CAWS | P21/10 Quantities and locations P21/350 Door track and running gear |
Product Reference | HAWA Frontslide 100/matic Symmetric 2 (25139)Partial set for two sliding shutters of maximum 80 kg each. HAWA Frontslide 100/matic Symmetric 2+2 (25140)Partial set for four sliding shutters of maximum 70 kg each. |
Drive unit | HAWA Motronic 100 (25147)Includes control unit, toothed belt lock and pulley wheel. |
Top track | 3500 mm6000 mmCut to sizeInsert requirements. |
Bottom guide channel | 6000 mmCut to sizeInsert requirements. |
Covering screen | - |
Type/ Material | Not requiredAluminium, plain anodizedAluminium, unanodized |
Length | Not required3500 mmPlain anodized only. 6000 mmCut to sizeInsert requirements. |
Toothed belt | 2.7 mStandard. 5 m8 m10 m15 m50 m |
Accessories/ Other requirements | Not requiredCover fixingsRequired for attaching the covering screens. Connecting boltsFloor guide unit, longFor use with bottom guide channel. Floor guide unit, shortFor use with bottom guide channel. Front cover platesFor wall fitting or ceiling fitting. Available aluminium plain anodized or aluminium unanodized, insert requirements. Parts for fitting top track coverScrew-on guide slider |
Standard product features | Configuration: Sliding, automatic. |
Product Options | Drive unit: Drive unit with integrated control for automatic sliding hardware with a speed of 70 mm/s, and a maximum drive force of 100 N. Drive commands are triggered by applying a current to the control wires. The HAWA Motronic 60 drive automatically detects the end position of the sliding shutter during the teach-in process. The drive stops and reverses two times when it encounters an obstacle. Consult manufacturer for further details. Top track/ bottom guide channel: Aluminium, plain anodized, predrilled. The top track can be installed either with or without covering screens. Accessories/ Other requirements: Other accessories and spares are also available, consult manufacturer for details. |
