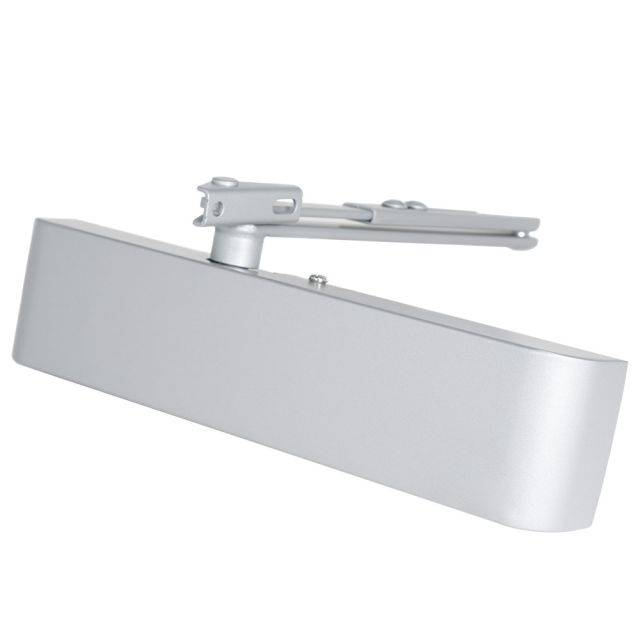

HALSPAN® R6000 Eco‐closer

Verified by manufacturer over a year ago

Halspan Ltd

Eco-closer R30/R60/R90

Jump to:
BIM object icon
+44 (0)330 0563836 Website

Application

Suitable for universal application to both left and right-handed doors.

Description

Multipurpose, variable power overhead door closer from the R6000 range.

Features and benefits:

  • Heavy duty.
  • Includes a range of adjustable features including closing speed, latch action, delayed action and back check.
  • Available in a range of finishes.
  • Includes parallel arm bracket.
  • 25-year guarantee.
  • CE marked, and tested to BS EN 1154: 1996, EN 1634-1: 2008 and BS 476-22: 1987.
  • Meets the requirement of Approved Document M and BS 8300.

Applications:

Suitable for universal application to both left and right-handed doors.

General information

Shape

Rectangle

Color

Gold, silver

Finish

SSS, PSS, PVD brass, RAL colours

Material

Aluminium, steel, stainless steel

Warranty description

25 years

Size

59 x 231 x 42 mm

59 x 248 x 24 mm

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Overhead door closers

P21/410 Overhead door closers

Product range

HALSPAN® Door Closers

Specification data - Controlled door closers

Product Reference

HALSPAN® R6000 Eco‐Closer

Type

R30 (CLR-AGN-100)

Guidance for specification option:

30 minutes fire rated.

R60 (CLR-AGN-101)

Guidance for specification option:

60 minutes fire rated.

R90 (CLR-AGN-102)

Guidance for specification option:

90 minutes fire rated.

Colour/ Finish

-

Cover

Guidance for specification option:

Consult manufacturer and insert requirements.

Arms

Guidance for specification option:

Consult manufacturer and insert requirements.

Standard product features

Size:

248 x 59 x 42 mm.

Mechanism:

Rack and pinion.

Maximum door width:

1100 mm.

Maximum door weight:

80 kg.

Opening angle:

180°.

Product Options

Type:

Consult manufacturer for details.

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1
