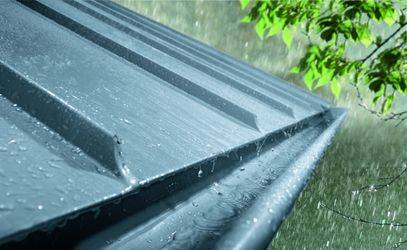

Half Round Gutters
Description

Rheinzink gutters are manufactured from zinc alloy. Special shapes and components can be manufactured to order. Half round gutters have a beaded front edge.

General information
Uniclass 2015
Pr_65_50_35_98 Zinc eaves guttersPrimary
CAWS

R10/355 Zinc gutters

Specification data - Zinc eaves gutters
Product Reference

Half Round Gutters

Type

Bright

Pre-Patina Blue Grey

Pre-Patina Graphite Grey

Half Round Zinc Gutters

Fittings -
Outlets (plug-in)

Straight

60 mm diameter spigot.

Corners

Not required

90° external angle

90° internal angle

Contractor's choice

As drawing

Stop ends

Left hand

Right hand

Contractor's choice

As drawing

Brackets

Fascia bracket

Rafter bracket, length 280 mm

Rafter bracket, length 410 mm

Contractor's choice

As drawing

Standard product features

Fittings:

Outlets (plug-in): Straight, 60 mm diameter spigot.

Product Options

Type:

- 1111002:

  • Finish: CLASSIC® bright-rolled.
  • Width: 250 mm.
  • Girth: 500 mm.
  • Thickness: 0.8 mm.

- 1111017:

  • Finish: CLASSIC® bright-rolled.
  • Width: 192 mm.
  • Girth: 400 mm.
  • Thickness: 0.8 mm.

- 1111021:

  • Finish: CLASSIC® bright-rolled.
  • Width: 153 mm.
  • Girth: 333 mm.
  • Thickness: 0.8 mm.

- 1111061:

  • Finish: CLASSIC® bright-rolled.
  • Width: 153 mm.
  • Girth: 333 mm.
  • Thickness: 0.7 mm.

- 1111074:

  • Finish: CLASSIC® bright-rolled.
  • Width: 127 mm.
  • Girth: 280 mm.
  • Thickness: 0.7 mm.

- 1111089:

  • Finish: CLASSIC® bright-rolled.
  • Width: 105 mm.
  • Girth: 250 mm.
  • Thickness: 0.7 mm.

- 1111108:

  • Finish: CLASSIC® bright-rolled.
  • Width: 105 mm.
  • Girth: 250 mm.
  • Thickness: 0.65 mm.

- 1111112:

  • Finish: CLASSIC® bright-rolled.
  • Width: 80 mm.
  • Girth: 200 mm.
  • Thickness: 0.65 mm.

- 4111017:

  • Finish: prePATINA blue - grey.
  • Width: 192 mm.
  • Girth: 400 mm.
  • Thickness: 0.8 mm.

- 4111061:

  • Finish: prePATINA blue - grey.
  • Width: 153 mm.
  • Girth: 333 mm.
  • Thickness: 0.7 mm.

- 4111074:

  • Finish: prePATINA blue - grey.
  • Width: 127 mm.
  • Girth: 280 mm.
  • Thickness: 0.7 mm.

- 4111093:

  • Finish: prePATINA blue - grey.
  • Width: 80 mm.
  • Girth: 200 mm.
  • Thickness: 0.7 mm.

- 36111017:

  • Finish: prePATINA graphite - grey.
  • Width: 192 mm.
  • Girth: 400 mm.
  • Thickness: 0.8 mm.

- 36111061:

  • Finish: prePATINA graphite - grey.
  • Width: 153 mm.
  • Girth: 333 mm.
  • Thickness: 0.7 mm.

- 36111074:

  • Finish: prePATINA graphite - grey.
  • Width: 127 mm.
  • Girth: 280 mm.
  • Thickness: 0.7 mm.

- 36111089:

  • Finish: prePATINA graphite - grey.
  • Width: 105 mm.
  • Girth: 250 mm.
  • Thickness: 0.7 mm.
