This product is no longer available —
GypWall™ SECURE
A robust, non-loadbearing security wall that offers high resistance to determined attack.
A robust, but lightweight, non-loadbearing security wall that offers high resistance to determined attack. It is used in commercial and industrial applications, such as partition walls in banks and building societies, custodial and defence establishments, and industrial, retail and data storage buildings.

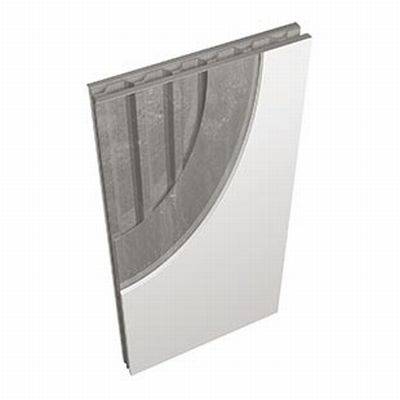

The wall comprises Security Sheet – a trapezoidal galvanized sheet steel section – which is secured to Gypframe GA4 Steel Angle at the head and base. It is lined on both sides with two layers of 10 mm Glasroc F MultiBoard. For extra security additional steel sheet can be installed to the 'risk' side.
Not suitable for use in areas subjected to continuous damp or humid conditions. Specify MR (moisture resistant) boards in intermittent wet areas.
Performance:
- Strength and robustness: Satisfies BS 5234 requirements up to Severe Duty.
- Fire resistance: Up to 150 minutes.
- Sound insulation: Up to Rw 40 dB.
| Uniclass 2015 | |
| CAWS | K10/125 Metal stud partition system K10/30 Metal stud |
| Product Reference | GypWall SECURE |
| Studs | - |
| Type | Gypframe security sheet |
| Centres | Not applicable |
| Head condition | - |
| Type | 50 mm x 25 mm Gypframe GA4 steel angle, fixed to ___Insert e.g. 'underside of ceiling joists'. |
| Linings | 2 x 10 mm Glasroc F MultiBoard to each side of security sheetSquare edged. |
| Finishing | - |
| Type | Taped seamless finishSkim coat plaster finishNot suitable for use with Gyproc Board Moisture Resistant Grade. To receive ceramic tiles |
| Primer/ Sealer | One coat of Gyproc Drywall PrimeTwo coats of Gyproc Drywall SealerFor use where vapour control is a consideration. |
| Accessories | NoneRigid beads/ stops |
| Other requirements | NoneFlat, 0.7 mm thick galvanized steel sheet internal lining (not by British Gypsum) to risk side of security sheet prior to lining |
| Product Options | Deflection allowance: Consult British Gypsum technical literature for recommendations. |
