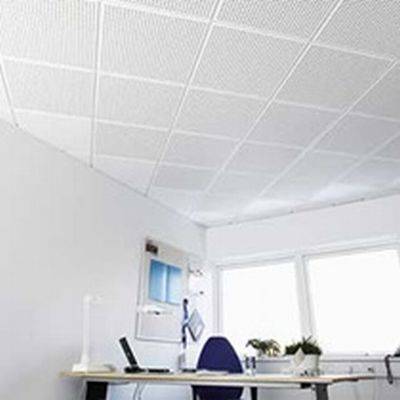

Gyptone tiles and planks

British Gypsum

A versatile range of perforated and pre-finished gypsum suspended tiles and planks. Gyptone’s attractive geometric patterns can be used in conjunction with base tiles to provide limitless design options for the interiors of a wide variety of buildings. Removable for easy access.

Jump to:
+44 (0)844 800 1991 www.british-gypsum.com
Description

A versatile range of perforated and pre-finished gypsum suspended tiles and planks. Gyptone’s attractive geometric patterns can be used in conjunction with base tiles to provide limitless design options for the interiors of a wide variety of buildings.

Removable for easy access.

General information
Size

600 x 600 x 12.5 mm

1300 x 300 x 12.5 mm

1800 x 300 x 12.5 mm

2100 x 300 x 12.5 mm

2400 x 300 x 12.5 mm

Uniclass 2015
Fibre-reinforced gypsum infill units (Pr_35_93_13_30)Primary
Specification data - Fibre-reinforced gypsum infill units
Product Reference

Gyptone tiles and planks

Type

Gyptone Base 31

Gyptone Base 33 Plank

Gyptone Sixto 60

Gyptone Line 4

Gyptone Line 8 Plank

Gyptone Point 11

Gyptone Point 12

Gyptone Point 15 Plank

Gyptone Quattro 20

Gyptone Quattro 22

Gyptone Quattro 55 Plank

Size

600 x 600 x 12.5 mm

1300 x 300 x 12.5 mm

1800 x 300 x 12.5 mm

2100 x 300 x 12.5 mm

2400 x 300 x 12.5 mm

Edge detail

A

D1

E15

E15/A

Standard product features

Acoustic performance:

  • αw up to 0.85.
  • NRC up to 0.80.
  • Dncw up to 39 dB.
  • Class B, C and D absorber.
  • Class 0 / Euroclass A2.
  • RH70.
  • Ideal solution to Part E regulations.

Product Options

Base 31:

  • Pre-finished white un-perforated tile.
  • Used in conjunction with the Line, Quattro and Point tiles to create distinctive ceiling designs.
  • Size: 600 x 600 x 12.5 mm.
  • Edge details: A, D1 and E15.

Base 33 Plank:

  • Pre-finished white un-perforated plank.
  • Used in conjunction with Line, Quattro and Point planks to create distinctive ceiling designs, planks are ideal for use in corridor areas.
  • Size: 1800 x 300 x 12.5 mm and 2100 x 300 x 12.5 mm.
  • Edge detail: E15/A.

Sixto 60:

  • Pre-finished white tile with hexagonal perforations, backed by special sound absorbent tissue.
  • Achieve high levels of sound absorption from an 17% perforated area.
  • Size: 600 x 600 x 12.5 mm.
  • Edge detail: D1 and E15.

Line 4:

  • Pre-finished white tile with line perforations, backed by special sound absorbent tissue.
  • Achieve high levels of sound absorption from an 18% perforated area.
  • Size: 600 x 600 x 12.5 mm.
  • Edge detail: E15.

Line 8 Plank:

  • Pre-finished white plank with line perforations, backed by special sound absorbent tissue.
  • Achieve high levels of sound absorption from a 15% perforated area.
  • Planks are ideal for use in corridor areas.
  • Size: 1800 x 300 x 12.5mm and 2100 x 300 x 12.5 mm.
  • Edge detail: E15/A.

Point 11:

  • Pre-finished white tile with round perforations, backed by special sound absorbent tissue.
  • Achieve high levels of sound absorption from a 12% perforated area.
  • Size: 600 x 600 x 12.5 mm.
  • Edge detail: E15.

Point 12:

  • Pre-finished white tile with round perforations, backed by special sound absorbent tissue.
  • Used in conjunction with Point 11 tiles, the unperforated area allows the installation of services, such as lights, into the ceiling. Perforated area 5%.
  • Size: 600 x 600 x 12.5 mm.
  • Edge detail: E15.

Point 15 Plank:

  • Pre-finished white tile with round perforations, backed by special sound absorbent tissue.
  • Suitable for use in corridors to provide sound absorption from the 11% perforated area.
  • Size: 1800 x 300 x 12.5mm and 2100 x 300 x 12.5 mm.
  • Edge detail: E15/A.

Quattro 20:

  • Pre-finished white tile with square perforations, backed by special sound absorbent tissue.
  • A perforated area of 18% provides high levels of sound absorption.
  • Size: 600 x 600 x 12.5 mm.
  • Edge detail: D1 and E15.

Quattro 22:

  • Pre-finished white tile with square perforations, backed by special sound absorbent tissue.
  • Used in conjunction with Quattro 20 tiles, the unperforated area allows the installation of services, such as lights, into the ceiling.
  • Perforated area 9%.
  • Size: 600 x 600 x 12.5 mm.
  • Edge detail: D1 and E15.

Quattro 55 Plank:

  • Pre-finished white plank with square perforations, backed by special sound absorbent tissue.
  • Suitable for use in corridors to provide sound absorption from a 15% perforated area.
  • Size: 1300 x 300 x 12.5 mm, 1800 x 300 x 12.5 mm, 2100 x 300 x 12.5 mm and 2400 x 300 x 12.5 mm.
  • Edge detail: E15/A.
