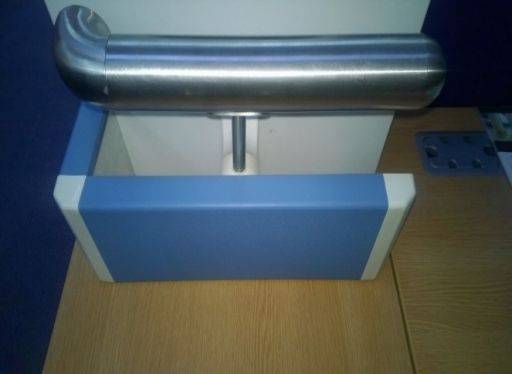

Guardian Twin Handrail Stainless Steel: 125PR

Description

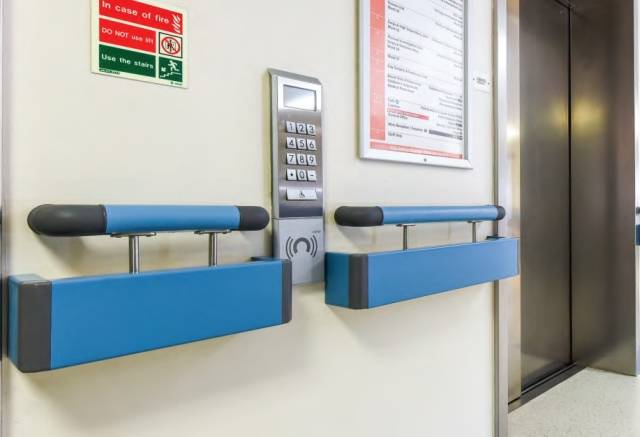

A two part system comprising of the Guardian 48.3 mm Diameter Handrail uppermost, underslung with either a 125 or 200 mm deep protection rail (on a solid MDF or aluminium core) incorporating a two part fixing spacer complete with stainless steel posts. The product is ideal for areas where a solid protection rail is required to protect walls from wheeled and motorized trolleys and carts whilst a handrail support is also required for use by pedestrians. With the protection rail standing slightly forward of the handrail, dual capability of this product helps to reduce maintenance and repainting costs by eliminating the damage that can be caused to the lower level of walls as well as the upper handrail. The rigid PVC-U rails do not harbour the growth of bacteria if cleaned regularly and are available in an array of colours with matching or contrasting accessories.


Approvals:

DDA compliance:

Though all the above colour ways are available, Yeoman Shield would recommend the use of contrasting accessories to highlight corners, stop/ start points, doorways and changes in direction as recommended under DDA guidelines, the Building Regulations, British Standards and Construction Guidelines for Handrails. If matching accessories are preferred then these are only available in the above colours in Cream, Black, White, Opal Green, Buff, Steel Blue and Light Green PVC-U sleeve.

General information

Finish

Polished

Material

Handrail: Stainless steel grade 1.4301 (304); Protection rail: Extruded Vinylac

Uniclass 2015

Ss_25_60_05_35 Handrail systemsPrimary

CAWS

L30/580 Proprietary handrails

L30/65 Purpose-made handrails

Specification data - Handrail systems

Product Reference

GTR50P/ 125PR

PVC-U, 48.3 mm diameter Handrail/ 125 mm protection rail.

GTR50P/ 200PR

PVC-U, 48.3 mm diameter Handrail/ 200 mm protection rail.

GTR50S/ 125PR

Stainless steel, 48.3 mm diameter Handrail/ 125 mm protection rail.

GTR50S/ 200PR

Stainless steel, 48.3 mm diameter Handrail/ 200 mm protection rail.

GTR50T/ 125PR

Timber, 48.3 mm diameter Handrail/ 125 mm protection rail.

GTR50T/ 200PR

Timber, 48.3 mm diameter Handrail/ 200 mm protection rail.

Standard product features

Composition:

  • Handrail: 48.3 mm diameter extruded PVC-U sleeve mounted on an aluminium core, solid hardwood timber or 1.4301 (304) stainless steel tube.
  • Protection rail: 125 or 200 mm extruded Vinylac.

Product Options

Protection rail colour:

  • Stainless Steel Finish. Available for Guardian 50 mm dia. handrail only.
  • Timber Beech Finish. Available for Guardian 50 mm dia. handrail only.
  • Royal Blue.
  • Opal Green.
  • Light Green.
  • Pastel Blue.
  • Steel Blue.
  • Dusty Grey.
  • Buff.
  • Cream.
  • White.
  • Black.
  • Mid Grey.


Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

3

2.0
Download now from NBS National BIM Library

Literature

2017 Yeoman Shield Product Brochure

2017 Yeoman Shield Product Brochure
