Description

Aluminium and stainless steel glass railing system.

Features:

  • Comprises aluminium base rail and stainless steel railing, with glass fittings.
  • A range of attachment methods to the substrate has been developed – contact manufacturer for details.
  • Custom cutting and mitring service available.
  • Designed for use with toughened glass.

Specification data
Product Reference

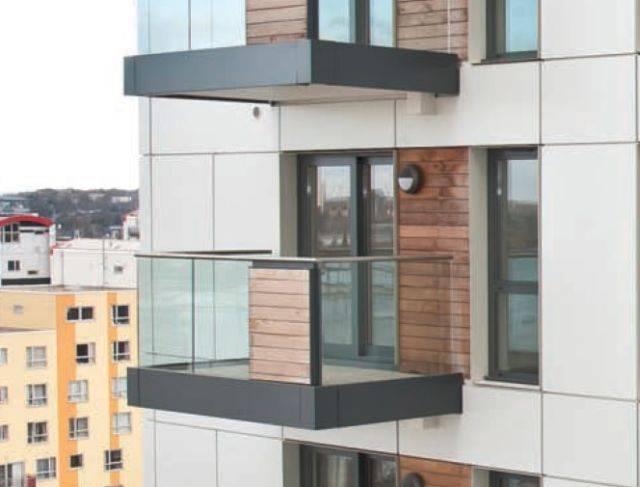

GRS Glass Railing System - Taper-Loc Base Shoe for Frameless Glass Balustrade System for Monolithic Glass

Base shoe -
Type

8B10D

Surface-mounted, 63.5 mm width, for 12 mm-thick glazing.

8B10F

Side-mounted, 63.5 mm width, for 12 mm-thick glazing.

8B34D

Surface-mounted, 69.9 mm width, for 19 mm-thick glazing.

8B34F

Side-mounted, 69.9 mm width, for 19 mm-thick glazing.

8B58D

Surface-mounted, 65.9 mm width, for 15 mm-thick glazing.

8B58F

Side-mounted, 65.9 mm width, for 15 mm-thick glazing.

Finish

Brushed nickel

Mill

Satin anodized

Standard product features

Base shoe:

  • Standard square aluminium base shoe channel for glass railing systems.
  • Height: 104.8 mm.
  • Length: 3050 mm.

TL5X10 Taper-Loc™ Taper Set:

  • Construction: Made up of two reinforced nylon tapers and one L-pressure block.
  • Glass thickness suitability: 12–19 mm.

TLK12 Installation/ Removal Tool:

Designed for tightening the Taper-Loc™ Taper Set in the channel of the base shoe.

EUGR20BS Premium Cap Railing:

  • Diameter: 48.3 mm.
  • Standard length: 3000 mm.
  • Finish: Brushed stainless steel grade 1.4401 (316).

Glass suitability:

Monolithic toughened.
