Motorized entrance gate 1200 mm high leaf, various door leaf widths available.
Entrance gates are designed to combine smooth function and sophisticated appearance with security in settings where design is important. Entrance gates are completely silent and provide easy passage and high through-put. Designed to reduce the barrier effect and create a welcome atmosphere, visitors can immediately see how and where they should enter.

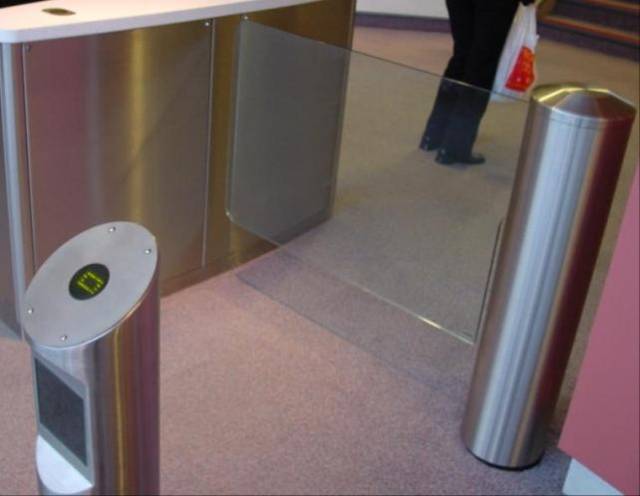

A standard GlasStile S consists of a grained or polished stainless steel column with one glass leaf.
A wide selection of glass dimensions and styles is available to create a two-leaf passage or match with the design of the SpeedStile product range.
On receiving a signal from the access control system or push button, the unit will unlock and drive through 90° away from signal direction. Should the glass leaf meet any resistance it will stop and nudge forward. If obstruction continues the unit will alarm and free wheel; an auto reset will re-establish control.
Rotor Column with Glass Leaf and Width Selection, Card Reader Integration, Push Button Control. remote console, Hand Held Programmer, Push Bar, Remote control system
Full Stainless Steel 304 Grade / 10 mm 3 ply laminate safety glass
Stainless Steel / Glass Finish
1200 x 800 mm
1200 x 750 mm
1200 x 650 mm
1200 x 850 mm
1200 x 450 mm
1200 x 700 mm
1200 x 900 mm
1200 x 500 mm
1200 x 600 mm
1200 x 400 mm
1200 x 550 mm
L20/495 Automatic revolving doors
|Cladding and casework|
Grained stainless steel
Polished stainless steel
Stainless Steel ‘P’ leaf open design
Stainless Steel ‘P’ leaf with infill bars
|Glass leaf height|
|Glass leaf width (see below for guidance)|
Pedestal complete with provision for card reader
Pedestal complete with push button/ pad
Remote double push button console (normally open contacts)
Remote control unit for multiple lane control.
Hand held programmer
|Standard product features|
Options shown are for 950 mm high rotor column only.
230 Volts AC 50/ 60 Hz.
In the event of an emergency or isolation of power supply, unit will failsafe i.e. rotor would freely turn in both directions.
