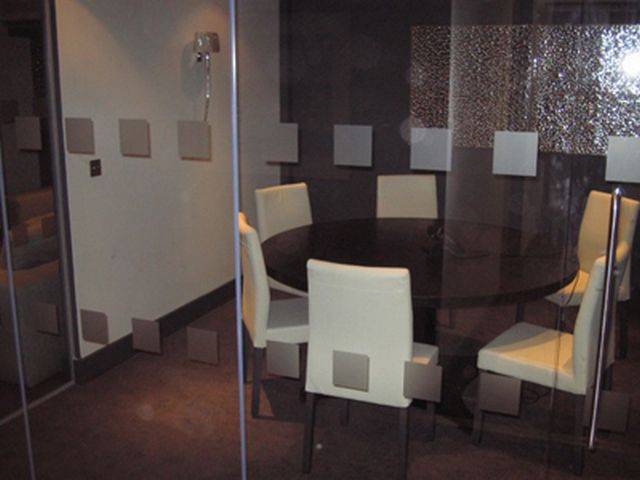

A collection of glass manifestations designed to obscure glass so as to comply with Building Regulations (E&W), Approved Document M.
Frosted Window Films are one of the most cost effective and easiest ways to ensure you are up to date with the latest manifestation legislation and comply with current Building Regulations. Any full height glass in windows, partitions or doors, must be marked correctly with glass manifestation to make sure that it is made apparent. Glass manifestation is designed to help make glass obvious, and prevent injury should somebody walk into the glass.
Standards:
Building Regulations (E&W) Approved Document M states that glass entrance doors and glass screens will satisfy requirement M1 or M2 if:
This window film complies with BS 476 -6 and -7, Class 0 – Surface Spread of Flame and Ignitability.
Size | 50 mm 75 mm 100 mm |
Uniclass 2015 | |
CAWS | L40/610 Window film L40/630 Manifestation L40/95 Window film |
Product Reference | 3M Frosted Crystal Window FilmFrosted film with extra sparkle. Coloured Window FilmCrystal Etch Window FilmWhiter frosted with light sparkle. Frostbrite® Window FilmClassic frosted effect film. Silver Etch Window FilmSlightly darker frosted; greater definition for logos, patters and text. |
Type | MF1Frosted Squares. MF2Frosted Dots. MF3Frosted Squares with rounded corners. MF4Frosted Stars. MF5Frosted Square outlines. MF6Frosted Dot outlines. MF7Frosted square outline with rounded corners. MF8Frosted Star outlines. MF9Frosted Square with a dot cut from centre. MF10Frosted Bullseyes. MF11Thin Frosted Sticks. MF12Thick Frosted Lolly Sticks. MF13Thin Frosted Lolly Sticks. MF15Frosted Grids of Dots. MF16Frosted Grid of Rectangles (horizontal). MF17Frosted Grid of Rectangles (vertical). |
Size | 50 mm75 mm100 mm |
Product Options | Type: Other types of manifestation are possible on special request – contact manufacturer. Colour: Manifestation can be computer cut in the following solid colours: 4210 Black, 4224 Dark Grey, 4221 Grey, 4220 Light Grey, 4200 White, 4272 Almond, 4270 Cream, 4232 Yellow, 4223 Orange, 4243 Red, 4282 Magenta, 4283 Purple, 4255 Marine, 4254 Mid Blue, 4252 Ocean, 4250 Pale Blue, 4261 Grass, 4269 Green, 4263 Mid Green, 4264 Forest, 4291 Gold or 4290 Silver. The following transparent colours are also available: Rainbow 501 – Yellow, Rainbow 502 – Mid Yellow, Rainbow 503 – Orange, Rainbow 504 – Mid Orange, Rainbow 505 –, Traffic Red, Rainbow 506 – Ruby Red, Rainbow 507 – Deep Red, Rainbow 508 – Pink, Rainbow 509 – Fuchsia, Rainbow 510 – Purple, Rainbow 511 – Bright Green, Rainbow 512 – Green, Rainbow 513 – Grass Green, Rainbow 514 – Turquoise, Rainbow 515 – Light Blue, Rainbow 516 – Mid Blue, Rainbow 517 - Blue, Rainbow 518 – Sapphire Blue, Rainbow 519 – Dark Brown or Rainbow 520 – Dark Grey. |
