Frameless Glass Top and Side Mount Model 6020_6021

OnLevel Ltd

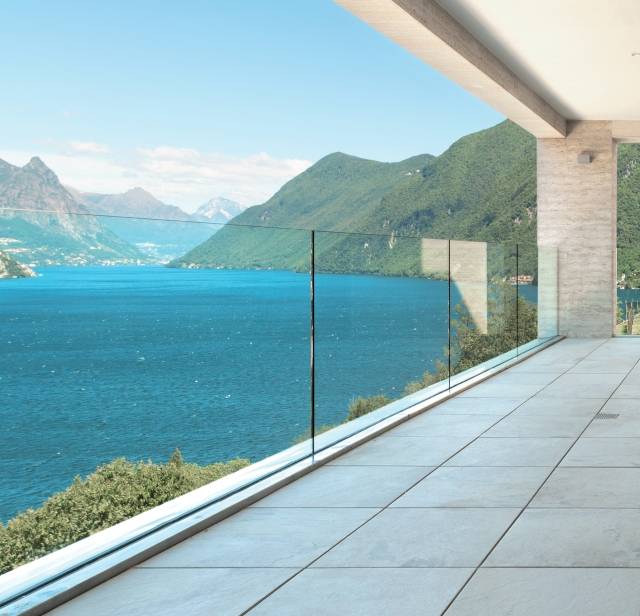

Frameless glass top and side mount system for line loading in accordance with BS 6180:2011 up to 1.5 kN.

Jump to:
+44 (0)161 8049500 www.onlevel.com
Application

Used in private, commercial and public areas, and can be used in exterior applications. Also suitable for:

  • Applications of 0.74 kN line loading in accordance with BS 6180:2011 (where the mounting distance will be either 200 mm for TL-6020 or 400 mm for TL-6021).
  • Can be used on anchor bolts without countersunk heads.

Can be anchored universally dependent on application – consult manufacturer for information.

Description

Frameless glass top and side mount system for line loading in accordance with BS 6180:2011 up to of 1.5 kN. Includes integrated multifunctional sophisticated chamber for enabling larger drilling distances.

Features and benefits:

  • Quick and simple mounting, with increased mounting distances.
  • A variety of finishes are available.
  • Suitable for glass thicknesses between 12 and 21.52 mm.
  • Includes drainage holes.
  • Increased stability.
  • Slimline design.
  • Low maintenance.
  • Improved statics.
  • OnLevel Flex-Fit glass adjustment tool included.
  • Can be used with top covers – consult manufacturer for information.

Applications:

Used in private, commercial and public areas, and can be used in exterior applications. Also suitable for:

  • Applications of 0.74 kN line loading in accordance with BS 6180:2011 (where the mounting distance will be either 200 mm for TL-6020 or 400 mm for TL-6021).
  • Can be used on anchor bolts without countersunk heads.

Can be anchored universally dependent on application – consult manufacturer for information.

General information
Size

1200 mm (maximum height, TL-6020), 1150 mm (maximum height, TL-6021). Consult manufacturer and insert requirements.

Uniclass 2015 Balustrade and guarding systems (Ss_25_60_05_05)
Specification data
Product Reference

Frameless Glass Top Mount Model, TL-6020

Frameless Glass Side Mount Model, TL-6021

Type

Cover strip

For TL-6021 only.

End cap for staircase with cover strip, left

For TL-6021 only.

End cap for staircase with cover strip, right

For TL-6021 only.

End cap, left

For TL-6021 only.

End cap, left, with cover cap

For TL-6020 only.

End cap, left/ right

For TL-6020 only.

End cap, right

For TL-6021 only.

End cap, right, with cover cap

For TL-6021 only.

Glass profile

Inside corner, 90°

For TL-6021 only.

Inside/ outside corner 90°

For TL-6020 only.

Outside corner, 90°

For TL-6021 only.

Size

1200 mm (maximum height, TL-6020), 1150 mm (maximum height, TL-6021). Consult manufacturer and insert requirements.

Cover

Required

For TL-6021 only.

Not required

Glass adjustment

Flex-Fit 1.0 kN

Insert size requirements.

Accessories/ Other requirements

Not required

Fischer fixing anchor FH II 12/10

For TL-6021. 13 required per 2500 mm.

Fischer fixing anchor FIS AM M10x150

For TL-6020. 17 required per 2500 mm.

Spacer

For TL-6020. To be mounted beneath the profile for drainage. Inner drill hole of 14 mm.

Standard product features

Line loading in accordance with BS 6180:2011:

1.5 kN.

Product Options

Type:

Consult manufacturer for appropriate sizes and insert product reference above.

All items are one-piece units.

- Cover strip:

With mounting strips. For use with a cover cap, end caps must be ordered separately.

Frameless Glass Side Mount Model, TL-6021:

  • 2500 mm (l): Available in plain aluminium (10.6021.202.11).
  • 5000 mm (l): Available in mill finish (10.6021.205.10), plain aluminium (10.6021.205.11), stainless steel effect (10.6021.205.12) and coloured (10.6021.205.13).

- End cap for staircase with cover strip, left:

Frameless Glass Side Mount Model, TL-6021:

Available in mill finish (10.6021.411.10), plain aluminium (10.6021.411.11), stainless steel effect (10.6021.411.12) and coloured (10.6021.411.13).

- End cap for staircase with cover strip, right:

Frameless Glass Side Mount Model, TL-6021:

Available in mill finish (10.6021.461.10), plain aluminium (10.6021.461.11), stainless steel effect (10.6021.461.12) and coloured (10.6021.461.13).

- End cap, left:

Frameless Glass Side Mount Model, TL-6021:

Available in mill finish (10.6021.400.10), plain aluminium (10.6021.400.11), stainless steel effect (10.6021.400.12) and coloured (10.6021.400.13).

- End cap, left, with cover cap:

Frameless Glass Side Mount Model, TL-6021:

Available in mill finish (10.6021.410.10), plain aluminium (10.6021.410.11), stainless steel effect (10.6021.410.12) and coloured (10.6021.410.13).

- End cap, left/ right:

Frameless Glass Top Mount Model, TL-6020:

Available in mill finish (10.6020.490.10), plain aluminium (10.6020.490.11), stainless steel effect (10.6020.490.12) and coloured (10.6020.490.13).

- End cap, right:

Frameless Glass Side Mount Model, TL-6021:

Available in mill finish (10.6021.450.10), plain aluminium (10.6021.450.11), stainless steel effect (10.6021.450.12) and coloured (10.6021.450.13).

- End cap, right, with cover cap:

Frameless Glass Side Mount Model, TL-6021:

Available in mill finish (10.6021.460.10), plain aluminium (10.6021.460.11), stainless steel effect (10.6021.460.12) and coloured (10.6021.460.13).

- Glass profile:

Frameless Glass Top Mount Model, TL-6020:

  • 140 x 60 mm (h x w).
  • 2500 mm (l): Available in plain aluminium (10.6020.002.11).
  • 5000 mm (l): Available in mill finish (10.6020.005.10), plain aluminium (10.6020.005.11), stainless steel effect (10.6020.005.12) and coloured (10.6020.005.13).

Frameless Glass Side Mount Model, TL-6021:

  • 140 x 60 mm (h x w).
  • 2500 mm (l): Available in plain aluminium (10.6021.002.11).
  • 5000 mm (l): Available in mill finish (10.6021.005.10), plain aluminium (10.6021.005.11), stainless steel effect (10.6021.005.12) and coloured (10.6021.005.13).

- Inside corner, 90°:

Frameless Glass Side Mount Model, TL-6021:

  • Side length is 140 mm (inside), and 200 mm (outside).
  • Available in mill finish (10.6021.300.10), plain aluminium (10.6021.300.11), stainless steel effect (10.6021.300.12) and coloured (10.6021.300.13).

- Inside/ outside corner, 90°:

Frameless Glass Top Mount Model, TL-6020:

  • Side length is 140 mm (inside), and 200 mm (outside).
  • Available in mill finish (10.6020.390.10), plain aluminium (10.6020.390.11), stainless steel effect (10.6020.390.12), and coloured (10.6020.390.13).

- Outside corner, 90°:

Frameless Glass Side Mount Model, TL-6021:

  • Side length is 140 mm (inside), and 200 mm (outside).
  • Available in mill finish (10.6021.350.10), plain aluminium (10.6021.350.11), stainless steel effect (10.6021.350.12) and coloured (10.6021.350.13).

- Glass adjustment:

Adjustment of up to 34 mm in relation to the vertical axis. Available in 2500, 5000 or 25 000 mm.

Accessories/ Other requirements:

- Fischer fixing anchor FH II 12/10:

  • Interior application: Zinc-plated steel (91.3521.210.81).
  • Exterior application: V4A (91.3521.210.30).

- Fischer fixing anchor FIS AM M10x150:

  • Interior application: Zinc-plated steel (91.3511.015.81).
  • Exterior application: V4A (91.3511.250.30).

- Spacer:

Mill finish (10.6020.500.10), plain aluminium (10.6020.500.11), stainless steel effect (10.6020.500.12) and coloured (10.6020.500.13).
