FIREPRO® Fire Duct Systems - Fire Duct Slab

FIREPRO® Fire Duct Systems - Fire Duct Slab

ROCKWOOL Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Fire Duct Systems provide fire protection to rectangular steel ductwork (in vertical and horizontal applications).

Jump to:
+44 (0)1656 862621 https://www.rockwool.com/uk/

Application

Fire protection for circular and rectangular steel ductwork (in vertical and horizontal applications). Up to two hours' fire protection for stability, integrity and insulation.

Description

Fire protection of steel ductwork is important to stop the spread of fire through building services, which if breached can allow fire to spread rapidly throughout the building. Fire Duct Systems provide fire protection to rectangular steel ductwork (in vertical and horizontal applications).

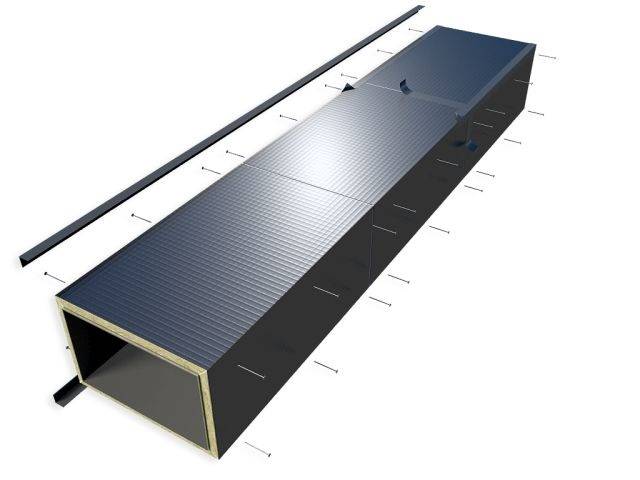

There are three products within the ROCKWOOL Fire Duct System; Fire Duct Slab, Fire Duct Section and Fire Duct PSM, each specially designed for different applications. Fire Duct Slab is composed of high-density insulation slab which is faced with reinforced aluminium foil. Fire Duct Slab is best suited to rectangular duct applications. Fire Duct Section and Fire Duct PSM are designed for circular ductwork (specified separately). The systems provide comprehensive performance for stability, integrity and insulation, for all ducts passing through fire-rated walls or floors.


Features and benefits:

  • Quick and easy to install.
  • Fully certified to BS 476–24 (duct types A and B).
  • Up to two hours' fire protection for stability, integrity and insulation.
  • Choice of fixing options.
  • Single layer, enabling verification of system installation.

General information

Material

Stone wool

Reinforced aluminium foil.

Size

  • Insulation thickness (minimum): 40 mm, 50 mm, 90 mm.
  • Width: 1200 mm.
  • Length: 2000 mm.


2000 x 1200 x 40 mm

2000 x 1200 x 50 mm

2000 x 1200 x 90 mm

Uniclass 2015

Pr_80_77_76_53 Mineral wool duct slab insulationPrimary

CAWS

U90/490 Site-applied insulation to ductwork

Specification data - Mineral wool duct slab insulation Enhanced data

Form

Flexible slabs.

Thermal conductivity

0.035 W/m·K at 10°C.

Finish

Aluminium foil faced.

Reaction to fire classification

To BS EN 13501-1, Class A1; to BS 476-24, Type ‘A’ and ‘B’ and to BS 476-7, Class 1.

Up to 2 hour fire protection for stability, integrity and insulation.

Insulation thickness (minimum)

40 mm.

50 mm.

90 mm.

Protection

Not required.

Optional edge protection.

Accessories

Not required.

Firepro glue.

Pigtail screws.

Welded steel pins.

Execution

Installing foil faced mineral wool insulation on ductwork.

Size:

1200 x 2000 mm.

Third party certifications

  • LPCB Red Book approved product: Cert. No. 022f
  • ASFP Blue Book listed
