Fassanet 160

Fassanet 160

Fassa UK Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

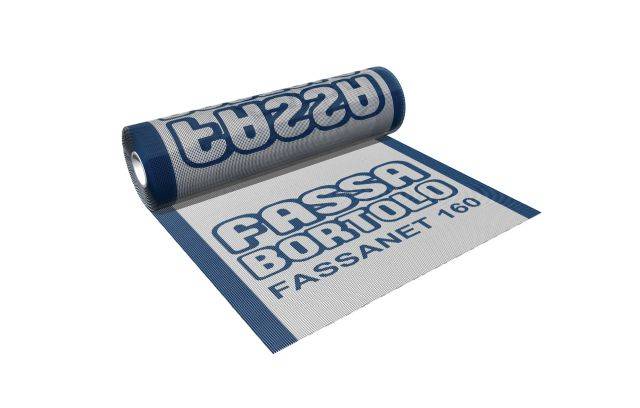

Alkali-resistant, fibreglass reinforcing mesh.

Jump to:
+44 (0)1684 218305 www.fassabortolo.com

Application

Should be applied to the base coat, ensuring that adjacent strips overlap by at least 100 mm. Used for the following:

  • To reinforce the smoothing coat applied on plasters or the base coat applied on thermal insulation panels before applying the finish.
  • Waterproofing mortars, such as AQUAZIP.

The formation of bubbles and folds should be avoided. Consult manufacturer's literature for further details of application and installation.

Description

Reinforcing mesh, made from weaving high quality fibreglass yarn which undergoes treatment with impregnation.

Features and benefits:

  • Alkali resistant.
  • Ensures systems are resistant to knocks.
  • Resists stress due to temperature changes and shrinkage.
  • Reduces the risk of formation of hairline cracks or fissures on the facade that could impair the tightness of the membrane.
  • Can be embedded at a 45° angle on the corners of door and window openings as reinforcement in the points where there is maximum concentration of stress.
  • Can be used in conjunction with various Fassa systems.

Applications:

Should be applied to the base coat, ensuring that adjacent strips overlap by at least 100 mm. Used for the following:

  • To reinforce the smoothing coat applied on plasters or the base coat applied on thermal insulation panels before applying the finish.
  • Waterproofing mortars, such as AQUAZIP.

The formation of bubbles and folds should be avoided. Consult manufacturer's literature for further details of application and installation.

General information

Uniclass 2015

Pr_20_96_71_34 Glass fibre mesh reinforcementPrimary

CAWS

M21/20 External wall insulation system . . . . . .

M21/210 External wall insulation system

M40/27 Intermediate substrate

M40/470 Intermediate substrate

Product range

Reinforcing mesh

Specification data - Glass fibre mesh reinforcement

Product Reference

Fassanet 160

Standard product features

Size (l x w):

50 x 1 m.

Weight:

  • Based on the ash content: 125 g/m² (±5%).
  • Mass per unit area: 155 g/m² (±5%).

Technical characteristics:

  • Components: Fibreglass: 81%; alkali-resistant treatment: 19%.
  • Tensile strength (warp and weft): >35 N/mm.
  • Elongation (warp and weft): 5%.
  • Tensile strength (after ageing of three alkali ions): >20 N/mm.
  • Application temperature: 5–35°C.

Literature

Fassatherm

Fassatherm

Gypsotech

Gypsotech

Adhesives, Grouts, Waterproofing, Screeds

Adhesives, Grouts, Waterproofing, Screeds

Third party certifications

  • ETA: Certificate: 07/0280; 09/0282
  • Certificate: 14/5091
