FarBo® Flat Roof Rainwater Drainage Outlets
Verified by manufacturer 5 months ago
FO-FLO-40-SBS
FO-FLO-40-SBS

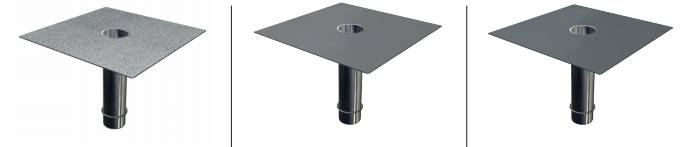

Rainwater outlets for flat roof drainage
Application
Rainwater outlets for flat roof refurbishment and new build projects.
Description
FarBo® rainwater outlets for roof drainage systems.
Features and benefits:
- Manufactured from high-quality stainless steel
- Vertical and horizontal options in various sizes
- Factory bonded flange to match specific membrane material being used (material must be specified at time of order)
- Membrane attached to the outlet allows for easy installation
- Flush finish - minimal risk of ponding
- O-ring seal supplied for refurbishment application Provides excellent seal whilst still allowing for movement
- Manufactured in accordance with ISO 9001, ISO 14001 and ISO 18001 Quality and Management Systems
- Project-specific drainage calculations can be requested
General information
Color | Grey Guidance for specification option: Light grey PVC or dark grey PVC. Black Guidance for specification option: Bituminous. |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Other |
Length | 400 mm 600 mm |
Width | 40 mm 50 mm 62 mm 70 mm 75 mm |
Uniclass | |
CAWS | R10/365 Proprietary rainwater outlets R10/26 Proprietary rainwater outlets |
SKU Code | FarBo® |
Product range |
Specification data - Gravity rainwater outlets
Material | Stainless steel. |
Integral accessories | Not required. Leafguard. Guidance for specification option: Variety of leaf guard options shown on separate FARBO LEAFGUARDS datasheet (must be ordered separately). |
Diameter | 5 mm. Manufacturer guidanceO-ring seal diameter (mm). |
Flowrate | 0.92 L/s. Manufacturer guidanceFlow rate including FarBo Leafguard type L/s. Universal. |
MeasuredFlowRate | No Guard. Manufacturer guidanceFlow rate including FarBo Leafguard type L/s. Cascade. |
Outlet | 40 mm. Manufacturer guidanceOutlet drain (mm). |
Pipe sizes | 45—50 mm. Manufacturer guidanceTo suit pipe size (mm) where outlet is inserted into existing pipe in refurbishment situations. |
Size | 500 x 500 mm. Manufacturer guidanceMembrane attachment size (mm). |
Type | Bituminous. Manufacturer guidanceMembrane type. For TPO, EPDM or other non-standard membranes, please contact the manufacturer. |
Spigot length | 400 mm. |
Sustainability data
Material | Stainless steel |
Literature
FarBo Product Focus
Flat Roof and Drainage Overview
Case studies
Bermondsey Square Hotel
Royal Garden Hotel
The Lanesborough Hotel - London

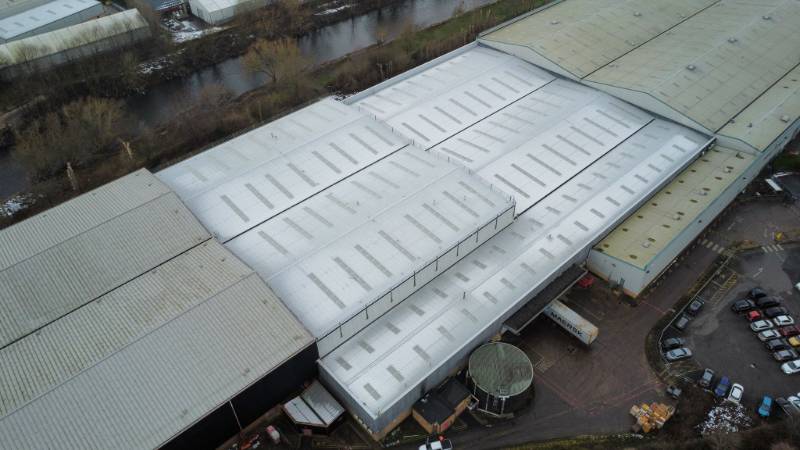

UK Greetings, Dewsbury, West Yorkshire
