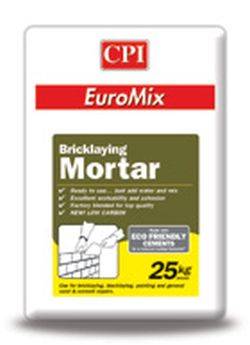

EuroMix Dry Mortar System – Masonry Mortar
Description

EuroMix Masonry Mortar is a factory produced dry silo mortar consisting of dried sands, cement and additives transported to site in bulk silos, which after connection to a water and power supply can automatically produce mortar of the required workability. Alternatively, a remote mixing station can be supplied. This enables dry material to be conveyed by compressed air directly to where it is needed before it is mixed with water. EuroMix Masonry Mortar is also available delivered in mini silos, pre-packed 25 kg bags or 1 tonne sacks. Coloured mortar is available.

Advantages:

  • Mortar is mixed only as it is needed.
  • Constant supply of mortar on site.
  • No retarders necessary.
  • Consistent mix proportions.

Use:

EuroMix Masonry Mortar should be used in accordance with BS 5628-3.

General information
CAWS

F10/10 Reclaimed brick facing brickwork

F10/110 Clay facing brickwork

F10/18 Concrete facing blockwork

F10/20 Manufactured stone blockwork

F10/215 Concrete facing brickwork

F10/230 Reclaimed brick facing brickwork

F10/25 Manufactured stone blockwork

F10/255 Concrete facing blockwork

F10/290 Manufactured stone blockwork

F10/295 Manufactured stone blockwork

F10/345 Concrete common brickwork

F10/355 Concrete common blockwork

F10/36 Concrete common blockwork

F10/5 Facing brickwork

F20/10 Rubble walling

F20/110 Rubble walling

F21/110 Ashlar

F30/720 Sills

F30/725 Cast stone sills laid in cement gauged mortar

F30/760 Coping units

F30/765 Cast stone coping units laid in cement gauged mortar

F30/770 Cast stone dressings laid in cement gauged mortar

F31/5 Designated concrete precast

Specification data
Product Reference

EuroMix Masonry Mortar

Mix

M1

Characteristic strength 1.0 N/mm².

M2.5

Characteristic strength 2.5 N/mm².

M5

Characteristic strength 5.0 N/mm².

M10

Characteristic strength 10 N/mm².

M15

Characteristic strength 15 N/mm².

M20

Characteristic strength 20 N/mm².

Colour

Natural

No added pigments.

Black-brown

Buff

Charcoal

Chocolate-brown

Copper-brown

Golden-brown

Heather

Khaki

Lilac

Mahogany

Marigold

Maroon-brown

Purple

Red

Red-brown

Straw-brown

Terracotta

White

Variations available on request.

Yellow

Shade

Not applicable

For Natural.

E___

Standard product features

Materials:

Cement to BS EN 197-1, IS EN 197-1 (Ireland); sand to BS EN 13139; lime to BS EN 459-1, IS 8 (Ireland); admixtures to BS EN 934; pigments to BS EN 12878.

Product Options

Colour/ Shade:

Each colour is available in three shades; light, medium and dark (54 shades + white), each represented by a number prefaced by E. Bespoke colours can be created and trial mixes supplied. Refer to CPI EuroMix for details.
