Fire Rated Horizontal Wall Cladding System
All Euroclad products are manufactured under a Quality Management System accredited to ISO 9001 and an Environmental Management System accredited to ISO 14001. Elite systems are completely non-combustible and recyclable, with the option of a 12 or 25 year Guarantee; the system must be installed by a Euroclad Elite Systems recommended installer.
Elite System 55fr is fast and economical vertical clad walling for light industry, retail, dry sports and leisure buildings giving maximum 4 hours fire resistance.
Elite System 55 non-fire rated version is also available.

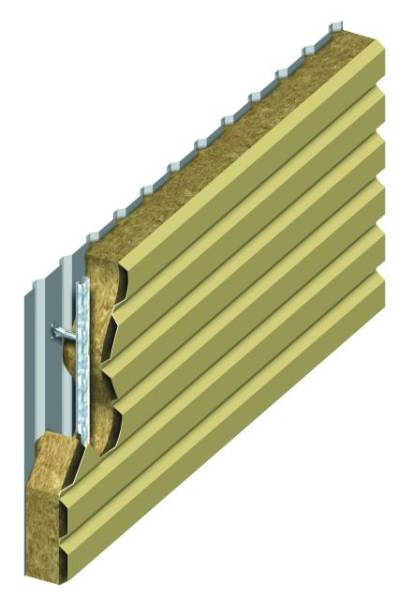

Elite System 55fr
32/ 1000 Reverse profile.
Corus Colorcoat HPS200®
Corus Colorcoat Prisma®
Vapour control membrane
Flashings, finish and colour matching external sheet
Standard product features
External Sheet Colours:
From Corus Standard Range, Repertoir and through consultation with Euroclad.
Euroclad 19/1000 0.4 mm steel, standard factory finish.
Spacers (0.30 U-value):
Eurobar Mast 135 mm high.
Euroclad does not recommend a breather membrane in Elite systems.
Vapour control membrane:
Euroclad recommend the use of A Proctor Procheck 500 or Monarflex VB with a minimum vapour resistance of 500 MNs/g together with Probond RG Tape or Monobond sealant with vapour resistivity equal to the vapour control layer.
Fire rating (maximum):
4 hours fire resistance
Acoustic performance (140 mm Euroclad Elite Flexislab/ 0.7 mm steel):
SRi = 41dB - contact Euroclad for details
Flashings, rainwater goods, fabricated details and trims can also be provided by Euroclad who can also recommend suppliers of compatible rooflights and fall arrest systems.
