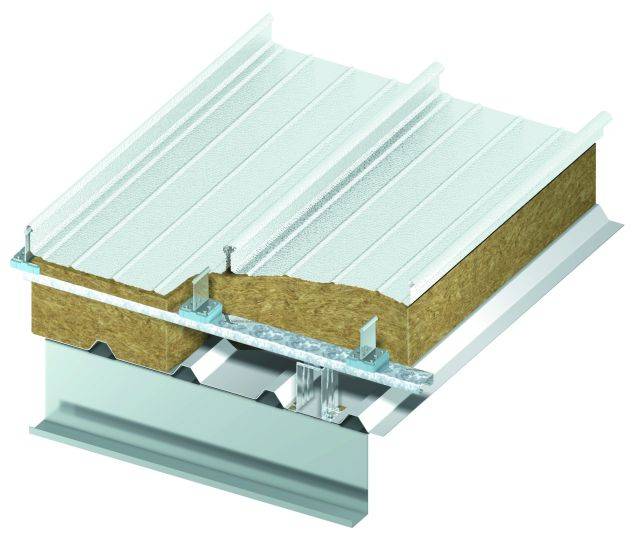

Elite System 4

Third party certifications:

BBA Agrément Certificate
Certificate type

High performance standing seam roofing system for pitches greater than 2.5°.

Jump to:

Description

All Euroclad products are manufactured under a Quality Management System accredited to ISO 9001 and an Environmental Management System accredited to ISO 14001. Elite systems are completely non-combustible and recyclable, with the option of a 12 or 25 year Guarantee; the system must be installed by a Euroclad Elite Systems recommended installer.

Elite System 4 is suitable for light industry, retail, dry sports and leisure buildings. Available in long lengths for factory or site rolling, suitable for finished roof pitches down to 1°.

General information

Uniclass 2015

Ss_30_40_65_50 Metal profiled sheet self-supporting roof covering systemsPrimary

CAWS

H31/10 Metal

H31/120 Metal

Specification data - Metal profiled sheet self-supporting roof covering systems

Product Reference	Elite System 4
External sheet	-
Type	Euroseam ESA400.
Finish	Matt lacquer coated PVDF coated Stucco embossed
Colour	___
Liner panel	Euroclad MW5L 0.7 mm steel, solid, plain Euroclad MW5L 0.7 mm steel, solid, rolled with swages
U-value	0.16 W/m²°C 0.20 W/m²°C 0.25 W/m²°C
Vapour control membrane	Monarflex VB Procheck 500 Not required
Accessories	Curved eaves, finish and colour matching external sheet Curved ridge, finish and colour matching external sheet Flashings, finish and colour matching external sheet Not required

Standard product features

External sheet:

Euroclad Euroseam 0.9 mm aluminium.

Cover width 400 mm.

External Sheet Colours:

From Corus Standard Range, Repertoir and through Consultation with Euroclad.

Spacer system:

0.16 U-value: Eurobar Extra spacer system 200 mm high with ECZIP-HXP140_15 halters.

0.29 U-value: Eurobar Extra spacer system 200 mm high with ECZIP-HXP91_15 halters.

0.25 U-value: Eurobar Extra spacer system 135 mm high with ECZIP-HXP95_15 halters.

Breather membrane:

Euroclad does not recommend a breather membrane in Elite systems.

Vapour control membrane:

Euroclad recommend the use of A Proctor Procheck 500 or Monarflex VB with a minimum vapour resistance of 500 MNs/g together with Probond RG Tape or Monobond sealant with vapour resistivity equal to the vapour control layer.

Acoustic performance (contact Euroclad for details):

200 mm Knauf: SRi = 41dB.

Product Options

Liner panel:

Euroclad MW5L 0.7 mm steel; standard factory finish.

Solid, plain or rolled with swages.

System U-value:

0.16 W/m²°C: 320 mm Knauf Factory Clad (0.040 W/m²K).

0.20 W/m²°C: 240 mm Knauf Factory Clad (0.040 W/m²K).

0.25 W/m²°C: 200 mm Knauf Factory Clad (0.040 W/m²K).

Alternative spacer/ insulation combinations are available to achieve greater U-values.

Accessories:

Flashings, rainwater goods, fabricated details and trims can also be provided by Euroclad who can also recommend suppliers of compatible rooflights and fall arrest systems.
