Ecomin 300 - Insulated façade system

Third party certifications:
  • BBA Agrément Certificate

    Certificate type

alsecco (UK) Ltd

Rendered insulated façade system.

Jump to:
+44 (0)1785 818998 www.alsecco.co.uk
Description

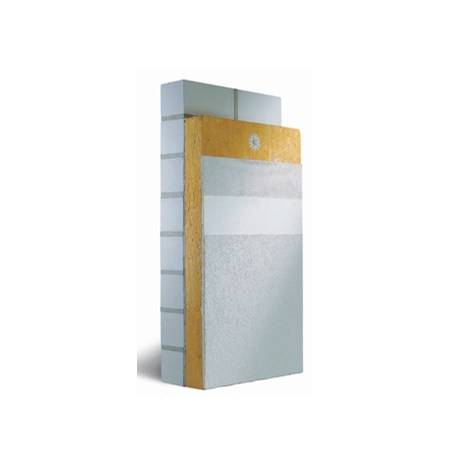

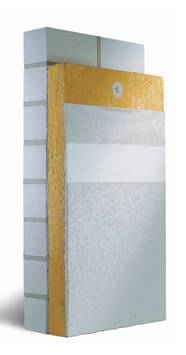

External wall insulation system incorporating mineral wool. It is a rendered façade system offering a high level of reinforcement, together with a greater degree impact resistance.

Features/ Benefits:

  • Increased fire resistance.
  • High impact resistance.
  • Weather resistant.
  • Excellent weathering and durability.
  • Consistent finish.
  • Wide range of textures, colours and finishes.

General information
Specification data
Product Reference

Alsecco Ecomin 300

Sub primer

Sub Primer HT

Solvent-free synthetic-resin dispersion primer.

Sub Primer P

Synthetic-resin dispersion primer.

Insulation -
Type

Mineral Wool Dual Density

Mineral Wool High Density

Mineral Wool Lamella

Mineral Wool Slab

Mineral Wool Slab Plus

Thickness

Insert requirement, available 30–300 mm.

Adhesive

Armatop MP

Bonding and reinforcing compound.

Thermastick FW

Adhesive for attaching external wall insulation boards to slab materials.

Mechanical fixings

Insert requirements, many options available dependent on individual application.

Reinforcement -
Type

Mesh 32

Mesh Universal

Basecoat

Armatop A

Reinforcing compound.

Armatop MP

Reinforcing compound.

Finish -
Primer

Top Primer P

Pigmented synthetic-resin bonded primer.

Top Primer SC

Pigmented filled primer.

Top Primer SI

Pigmented silicate bonded primer.

FinishType

Alsilite F

Silicate-based lightweight mineral plaster with a smooth finish.

Alsilite R

Silicate-based lightweight mineral plaster with a grooved finish.

Alsilite T

Silicate-based lightweight mineral plaster with a scraped finish.

Alsitect R

Decorative silicate plaster with a grooved finish.

Alsitect T

Decorative silicate plaster with a scraped finish.

Alsitop

Lightweight external wall render with a grooved finish.

Alsitop F

Lightweight external wall render with a smooth finish.

Alsitop T

Lightweight external wall render with a scraped finish.

Duratop A

Mineral-based plaster with a scraped finish.

Miratect R

Mineral-based decorative plaster with a grooved finish.

Miratect S

Mineral-based decorative plaster with a smooth finish.

Miratect T

Mineral-based decorative plaster with a scraped finish.

Orgatect F

Decorative synthetic-resin plaster with a smooth finish.

Orgatect R

Decorative synthetic-resin plaster with a grooved finish.

Orgatect T

Decorative synthetic-resin plaster with a scraped finish.

Silitect R

Decorative silicone-resin plaster with a grooved finish.

Silitect T

Decorative silicone-resin plaster with a scraped finish.

Silitect T Ice

Fast-setting silicone-resin decorative render with scraped finish.

Colour

Insert requirement, many options available, contact manufacturer for information.

Protective coating -
Paint

Not required

Alsicolor Carbon

Carbon-fibre reinforced silicone resin paint.

Alsicolor Finish

Acrylic-resin paint.

Alsicolor SC

Silicone-resin paint.

Colour

Insert requirement, many options available, contact manufacturer for information.

Accessories

None

Alsecco acrylic-based joint sealant

Alsecco aluminium profiles

Alsecco profile connectors and fixings

Alsecco PU foam

Alsecco PVC-U profiles

Alsecco sealing tape

Alsecco stainless steel profiles

Standard product features

Armatop A:

  • Material: Portland cement with redispersible synthetic-resin powder.
  • Colour: Grey.
  • Density: 1.4 g/cm³.
  • Adhesive pull strength: ≥0.08 N/mm² (on polystyrene).
  • Capillary water absorption: w = <0.15 kg/(m²h^½).
  • Diffusion-equivalent air-layer thickness: sd = <0.1 m (at 4 mm).
  • Drying time: 3–5 days (approximate).

Fire rating:

A2-s1, d0.

Thermal conductivity:

0.036–0.042 W/mK.

Product Options

Sub primer:

- Sub Primer HT:

  • Material: Acrylic-resin dispersion.
  • Colour: Opaque blue (transparent when dry).
  • Density: 1.00 g/cm³.
  • Drying time: 2–4 hours.

- Sub Primer P:

  • Material: Styrene acrylate dissolved in solvent.
  • Colour: Transparent.
  • Density: 0.82 g/cm³.

Insulation adhesive:

- Armatop MP:

  • Material: Cement-based, comprising limestone sand and additives.
  • Colour: Grey.
  • Density: 1.4 g/cm³.
  • Adhesive pull strength: ≥0.08 N/mm² (on polystyrene).
  • Capillary water absorption: w = <0.2 kg/(m²h^½).
  • Diffusion-equivalent air-layer thickness: sd = <0.1 m (at 2 mm).
  • Drying time: 1–3 days (approximate).

- Thermastick FW:

  • Material: Acrylate copolymer dispersion.
  • Colour: White.
  • Density: 1.65 g/cm³.
  • Drying time: 72 hours (approximate).

Reinforcement:

- Mesh 32:

  • Material: Multi-stranded alkali-resistant glass-fibres with a polymer coating.
  • Size: 4 x 4 mm.
  • Width: 1100 mm.
  • Weight: 160 g/m².
  • Colour: White.
  • Tensile strength: Longitudinal: 2000 N/50mm; Transverse: 2000 N/50mm

- Mesh Universal:

  • Size: 6 x 6 mm.
  • Width: 1100 mm.
  • Weight: 160 g/m².
  • Colour: White.
  • Tensile strength: Longitudinal: 2000 N/50mm; Transverse: 2000 N/50mm.

Finish primer:

- Top Primer P:

  • Material: Synthetic-resin dispersion.
  • Colour: Natural white.
  • Drying time: 2–6 hours (approximate).

- Top Primer SC:

  • Material: Acrylic-resin dispersion.
  • Colour: Natural white.
  • Drying time: 2–6 hours (approximate).

- Top Primer SI:

  • Material: Silicate bonded primer for silicate based render finishes.
  • Colour: Natural white or pigmented.
  • Drying time: 2–6 hours (approximate).

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 3 2.0
Download now from NBS National BIM Library
