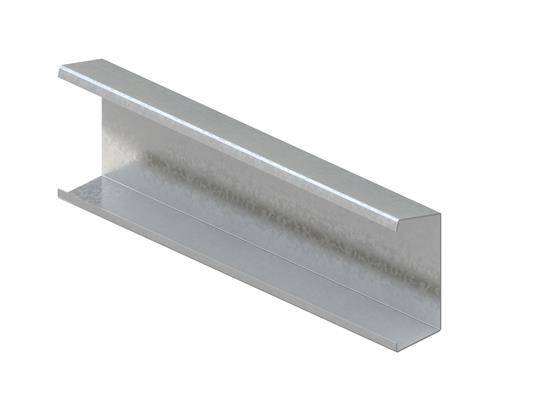

E Sections
Description

Galvanised steel eaves beam section to be used in conjunction with Zed and/or Cee section to support eaves junction cladding. Can be used as part of firewall cladding support when appropriately designed and fire protected. Available with counterformed holes to enable flush fitting of finishes where required. Available with top flange pitch from +22 degrees to -3 degrees as standard, angles outside this range are available on request.

Available Depths: 195, 235, 300, 360 mm

General information

Finish

Galvanised

Material

Steel

Uniclass 2015

Pr_20_76_51_21 Cold-formed galvanized steel sectionsPrimary
Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 2 2.0
IFC
IFC2X3 1 1.3
IFC
IFC2X3 1 1.3
Download now from NBS National BIM Library
