Description

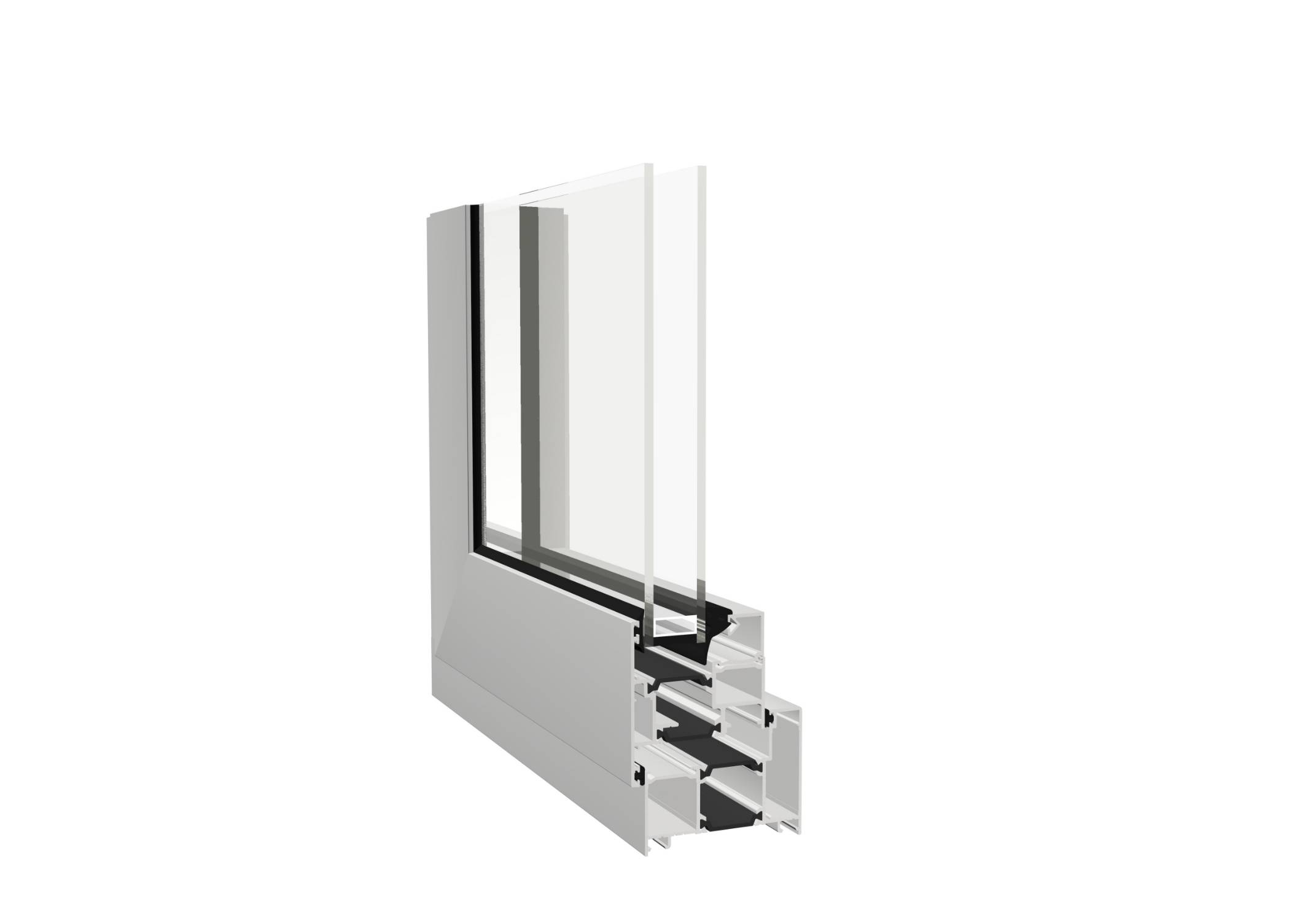

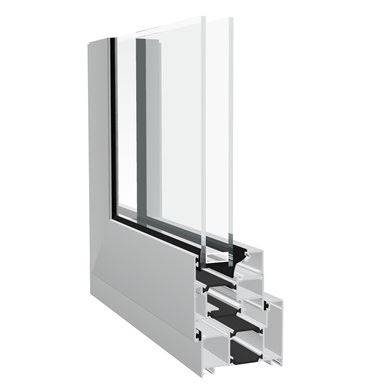

Aluminium windows in pivot, tilt and casement configurations, which can be constructed to form fixed and opening lights, as combination frames or as separate coupled lights.

Features:

  • Dual colour available; differing finishes internally and externally possible.
  • Drained and ventilated glazing; synthetic rubber gaskets.
  • Weather stripped profiles with polyamide thermal breaks.
  • Chamfered and 'Softline' profiles to casement window.
  • Size (maximum) as manufacturer's table.
  • Trickle ventilators available.

Performance -

- Casement and Pivot:

Tested to BS 6375-1: Watertightness 600 Pa (Class 9A); Air Permeability 600 Pa (Class 4); Wind Resistance 2400 Pa (Class E).

- Reversible:

Tested to BS 6375-1: Watertightness 600 Pa (Class 9A); Air permeability 600 Pa (Class 4); Wind Resistance 2000 Pa (Class A5).

Standards:

- Casement:

Manufactured to BS 4873 (KM74159) and BS 7950 (KM74141).

- Reversible:

BM Trada Qmark to BS 4873 Cert 001 and BS 7950 Cert 034.

General information
Size

Insert requirements.

Finish

Anodized

To BS 3987.

Powder coated gloss, colour

To EN 12206-1: 2004, insert colour.

Powder coated matt, colour

To EN 12206-1: 2004, insert colour.

Powder coated satin, colour

To EN 12206-1: 2004, insert colour.

Powder coated metallic, colour

To EN 12206-1: 2004, insert colour.

Features

Dual colour available; differing finishes internally and externally possible

Drained and ventilated glazing; synthetic rubber gaskets

Weather stripped profiles with polyamide thermal breaks

Chamfered and 'Softline' profiles to casement window

Size (maximum) as manufacturer's table

Trickle ventilators available

Uniclass 2015 Aluminium window units (Pr_30_59_98_02)
Specification data
Product Reference

Dualframe 55 mm Pivot Windows

Dualframe 75 mm Reversible Windows

Dualframe 75 mm Standard Casement Windows, Side Hung

Dualframe 75 mm Standard Casement Windows, Top Hung

Dualframe 75 mm Heavy Duty Casement Windows, Side Hung

Dualframe 75 mm Heavy Duty Casement Windows, Top Hung

Profile

Not applicable

Pivot and Reversible options.

Chamfered

Softline

Size

Insert requirements.

Finish

Anodized

To BS 3987.

Powder coated gloss, colour

To EN 12206-1: 2004, insert colour.

Powder coated matt, colour

To EN 12206-1: 2004, insert colour.

Powder coated satin, colour

To EN 12206-1: 2004, insert colour.

Powder coated metallic, colour

To EN 12206-1: 2004, insert colour.

Glazing

24 mm

28 mm

32 mm

Handles colour

Manufacturer's standard

Silver anodized.

Ebony

White

Hinges

Austenitic stainless steel friction casement stays

Austenitic stainless steel restrictor friction casement stays

Austenitic stainless steel fire escape friction casement stays

Butt hinges

Casement windows only.

Enhanced security hardware pack

Reversible window only, to BS 7950.

Stainless steel fire egress friction casement stays

Stainless steel restrictor friction casement stays

Friction stay hinge protector

Casement windows only, to BS 7950.

Accessories

None

Opening restrictor

Locking

Remote operation

Non locking

Remote operation

Non locking

Trickle ventilator

Standard product features

Hinges:

  • Casement: Stainless steel friction casement stays.
  • Reversible: Reversible stays with hold open and reverse lock feature and integral restrictor.
  • Pivot: Pair of cast alloy friction pivots with non locking restrictor.

Locking:

Multi point shootbolt and mushroom cam locking system.

Product Options

Glazing:

24, 28 or 32 mm as standard. Insert details of glass and spacer dimensions, emissivity, safety and solar control.
