DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 4.0–12.0 mm Steel

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 4.0–12.0 mm Steel

Fixfast Ltd

Stainless steel composite panel self-drilling fasteners for roofing and cladding (4–12 mm).

Jump to:
+44 (0)1732 882387 www.fixfast.com

Application

Suitable for the mechanical fixing of composite panel systems to heavy metal purlins and sections. For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2, Class 3 or Class 4 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.
  • Coastal locations.

To be fixed with Fixfast GreenDrive (8 mm hexagon integral socket with retaining clip).

Fixfast products must be used as a complete system with tools and accessories as recommended – consult manufacturer for details.

Description

Stainless steel composite panel self-drilling fasteners for roofing and cladding (4–12 mm).

Features and benefits:

  • Grade 1.4301 (304), A2 stainless steel is used for optimum resistance to corrosion.
  • Bi-metal, manufactured for superior drilling performance.
  • Good pull-out and shear performance.
  • High thread provides optimal clamping force to the top sheet.
  • Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.

Applications:

Suitable for the mechanical fixing of composite panel systems to heavy metal purlins and sections. For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2, Class 3 or Class 4 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.
  • Coastal locations.

To be fixed with Fixfast GreenDrive (8 mm hexagon integral socket with retaining clip).

Fixfast products must be used as a complete system with tools and accessories as recommended – consult manufacturer for details.

General information

Material

Grade 1.4301 (304) stainless steel, with carbon steel case and hardened, welded point

Uniclass 2015

Pr_20_29_76_76 Self-drilling screwsPrimary

CAWS

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

Product range

Fastener Systems

Specification data - Self-drilling screws

Product Reference

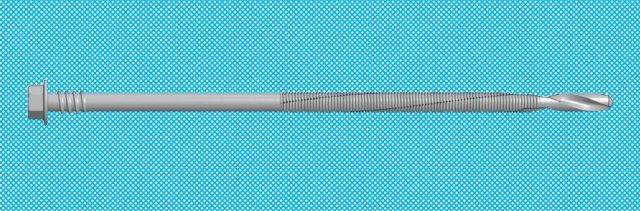

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 4.0–12.0 mm Steel, DF12-SS-HT-5.5 x 95

95 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 4.0–12.0 mm Steel, DF12-SS-HT-5.5 x 115

115 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 4.0–12.0 mm Steel, DF12-SS-HT-5.5 x 150

150 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 4.0–12.0 mm Steel, DF12-SS-HT-5.5 x 200

200 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 4.0–12.0 mm Steel, DF12-SS-HT-5.5 x 250

250 x 5.5 mm (l x diameter).

DrillFast® A2/304 Stainless Steel Composite Panel Fasteners for 4.0–12.0 mm Steel, DF12-SS-HT-5.5 x 300

300 x 5.5 mm (l x diameter).

Washers

Required

Consult manufacturer for information.

Not required

Standard product features

Material:

Grade 1.4301 (304) stainless steel, with carbon steel case and hardened, welded point.

Coating:

Organic.

Head type:

Hexagon, 8 mm.

Drilling capacity:

4–12 mm (steel).

Minimum penetration (heavy steel purlins):

30 mm (through underside).

Build up:

22–258 mm (dependent on washer used).

Durability class:

  • Interior environments: C1 (30).
  • Semi-interior: 25.
  • Urban: C2 (25).
  • Rural: C3 (25).
  • Industrial/ coastal: C4 (15).
  • Marine: C5.

Technical characteristics:

– Characteristic values:

  • Pull out values (axial load resistance, to BS 5427): 4 mm steel: 2.80 kN; 6 mm steel: 3.09 kN; 8 mm steel: 6.89 kN; 12 mm steel: 6.89 kN.
  • Pull through values (axial load resistance): Composite panel with A15 washer: 1 kN.
  • Shear values (lateral load resistance, with no washer): 4 mm steel: 1.04 kN.

– Design values:

  • Pull out values (axial load resistance, to BS 5427): 4 mm steel: 2.10 kN; 6 mm steel: 2.32 kN; 8 mm steel: 5.18 kN; 12 mm steel: 5.18 kN.
  • Pull through values (axial load resistance): Composite panel with A15 washer: 0.75 kN.
  • Shear values (lateral load resistance, with no washer): 4 mm steel: 0.78 kN.

Other figures and specific testing are available on request – consult manufacturer for information.
