Description

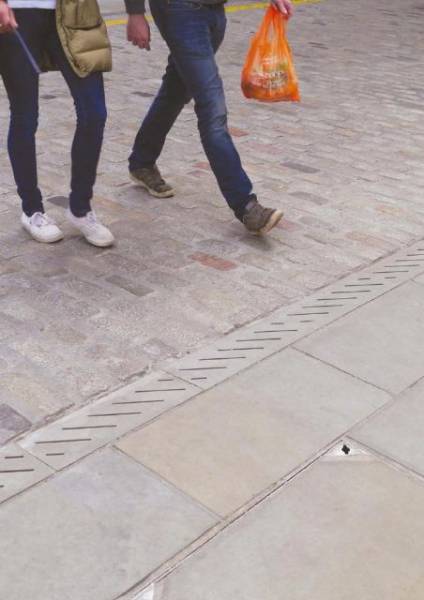

Drexus Pave Drain offers a unique aesthetic for linear drainage. Marshalls have developed this drainage solution to complement their paving products including premium concrete and natural stone.

It is available in a variety of finishes and is suitable for any public development.

General information
Specification data - Drainage channels with gratings
Product Reference

Drexus Pave Drain

Top unit

DR544810

Textured silver grey. Weight: 15 kg.

DR544820

Textured buff. Weight: 15 kg. Special order.

DR544840

Granite silver grey. Weight: 17 kg. Special order.

DR544850

Granite mid grey. Weight: 17 kg. Special order.

DR544860

Yorkstone scoutmoor. Weight: 17 kg. Special order.

Constant depth channel

DR541015

Channel 0/0. Length: 1000 mm. Depth: 170 mm. Invert depth: 90 mm. Weight: 37 kg.

DR541025

Channel 5/0. Length: 1000 mm. Depth: 195 mm. Invert depth: 115 mm. Weight: 45 kg.

DR541035

Channel 10/0. Length: 1000 mm. Depth: 220 mm. Invert depth: 140 mm. Weight: 53 kg.

DR541045

Channel 15/0. Length: 1000 mm. Depth: 245 mm. Invert depth: 165 mm. Weight: 61 kg. Special order.

DR541055

Channel 20/0. Length: 1000 mm. Depth: 270 mm. Invert depth: 190 mm. Weight: 69 kg. Special order.

DR541515

Channel 0/0. Length: 500 mm. Depth: 170 mm. Invert depth: 90 mm. Weight: 18.5 kg. Special order.

DR541525

Channel 5/0. Length: 500 mm. Depth: 195 mm. Invert depth: 115 mm. Weight: 22.5 kg. Special order.

DR541535

Channel 10/0. Length: 500 mm. Depth: 220 mm. Invert depth: 140 mm. Weight: 26.5 kg. Special order.

DR541545

Channel 15/0. Length: 500 mm. Depth: 245 mm. Invert depth: 165 mm. Weight: 30.5 kg. Special order.

DR541555

Channel 20/0. Length: 500 mm. Depth: 270 mm. Invert depth: 190 mm. Weight: 34.5 kg. Special order.

'T' junction channel

DR543750

T- Channel 0/0. Weight: 19 kg. Special order.

DR543760

T-Channel 10/0 Weight: 27 kg. Special order.

DR543770

T-Channel 20/0 Weight: 35 kg. Special order.

Channel transition

DR542110

0/0–5/0. Depth: 179 mm. Invert depth: 104/ 129 mm. Weight: 39 kg.

DR542120

5/0–10/0. Depth: 204 mm. Invert depth: 129/ 154 mm. Weight: 43 kg.

DR542130

10/0–15/0. Depth: 229 mm. Invert depth: 154/ 179 mm. Weight: 46 kg. Special order.

DR542140

15/0–20/0. Depth: 254 mm. Invert depth: 179/ 204 mm. Weight: 50 kg. Special order.

End cap/ Cap outlet

DR543210

End Cap 0/0. Weight: 1 kg.

DR543220

End Cap 5/0. Weight: 1.2 kg. Special order.

DR543230

End Cap 10/0. Weight: 1.4 kg. Special order.

DR543240

End Cap 15/0. Weight: 1.6 kg. Special order.

DR543250

End Cap 20/0. Weight: 1.8 kg. Special order.

DR543505

Cap Outlet 0/0. Weight: 1 kg.

DR543515

Cap Outlet 5/0. Weight: 1.2 kg. Special order.

DR543525

Cap Outlet 10/0. Weight: 1.4 kg. Special order.

DR543535

Cap Outlet 15/0. Weight: 1.6 kg. Special order.

DR543545

Cap Outlet 20/0. Weight: 1.8 kg. Special order.

Outfall and access cover

DR543020

Side outfall. Weight: 137 kg. Special order.

DR543025

End outfall. Weight: 101 kg.

DR544770

Pave drain access cover (low). Weight: 10 kg.

DR5447750

Pave drain access cover (natural stone) Weight: 12 kg.

Standard product features

Loading:

D400.

Product Options

Top unit:

Size (w x l): 160 x 500 mm.

Constant depth channel:

  • Width: 160 mm.
  • Invert width: 100 mm.

Channel transition:

  • Transition channels increase drainage discharge capacity by improving flow rates and thereby increasing the overall discharge capacity of the system.
  • Size (w x l): 160 x 1000 mm.
  • Invert width: 100 mm.
