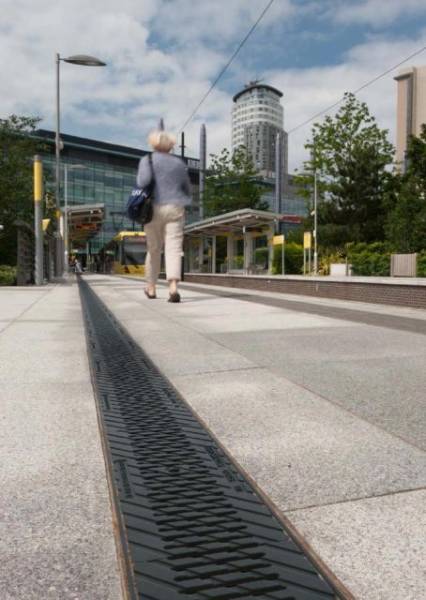

Drexus 100 is a cost effective light weight linear drainage unit, which provides loading of up to D400 when used with the range of Drexus 100 cast iron grates. With wall thicknesses of 30 mm and its scalloped side walls, this unit is the lightest within the Marshalls channel range.

Gratings are attached securely to the channels via a single bolt locking bar which is integrated into the channel construction.

Available for both pedestrian and standard trafficking applications, making it suitable for a variety of projects including civic, commercial and rail.

General information
Specification data - Drainage channels with gratings
Product Reference

Drexus 100

Grating

DR544010

6 mm Heelsure. Loading: B125. Weight: 3.8 kg. Special order.

DR544020

6 mm Heelsure. Loading: C250. Weight: 3.8 kg. Special order.

DR544030

2 mm Slotted. Loading: C250. Weight: 3.9 kg. Special order.

DR544040

6 mm Heelsure. Loading: D400. Weight: 4.5 kg.

DR544050

12 mm Slotted. Loading: D400. Weight: 4.95 kg.

Constant depth channel

DR540015

Channel 0/0. Length: 1000 mm. Depth: 170 mm. Invert depth: 90 mm. Weight: 38 kg.

DR540025

Channel 5/0. Length: 1000 mm. Depth: 195 mm. Invert depth: 115 mm. Weight: 46 kg.

DR540035

Channel 10/0. Length: 1000 mm. Depth: 220 mm. Invert depth: 140 mm. Weight: 54 kg.

DR540045

Channel 15/0. Length: 1000 mm. Depth: 245 mm. Invert depth: 165 mm. Weight: 62 kg. Special order.

DR540055

Channel 20/0. Length: 1000 mm. Depth: 270 mm. Invert depth: 190 mm. Weight: 70 kg. Special order.

DR540515

Channel 0/0. Length: 500 mm. Depth: 170 mm. Invert depth: 90 mm. Weight: 19 kg. Special order.

DR540525

Channel 5/0. Length: 500 mm. Depth: 195 mm. Invert depth: 115 mm. Weight: 23 kg. Special order.

DR540535

Channel 10/0. Length: 500 mm. Depth: 220 mm. Invert depth: 140 mm. Weight: 27 kg. Special order.

DR540545

Channel 15/0. Length: 500 mm. Depth: 245 mm. Invert depth: 165 mm. Weight: 31 kg. Special order.

DR540555

Channel 20/0. Length: 500 mm. Depth: 270 mm. Invert depth: 190 mm. Weight: 35 kg. Special order.

'T' junction channel

DR543700

T- Channel 0/0. Weight: 19 kg. Special order.

DR543710

T-Channel 10/0 Weight: 27 kg. Special order.

DR543720

T-Channel 20/0 Weight: 35 kg. Special order.

Channel transition

DR542010

0/0–5/0. Depth: 195 mm. Invert depth: 120/ 145 mm. Weight: 41 kg.

DR542020

5/0–10/0. Depth: 220 mm. Invert depth: 145/ 170 mm. Weight: 45 kg.

DR542030

10/0–15/0. Depth: 245 mm. Invert depth: 170/ 195 mm. Weight: 48 kg. Special order.

DR542040

15/0–20/0. Depth: 270 mm. Invert depth: 195/ 220 mm. Weight: 52 kg. Special order.

End cap/ Cap outlet

DR537910

End Cap 0/0. Weight: 1 kg.

DR537920

End Cap 5/0. Weight: 1.2 kg. Special order.

DR537930

End Cap 10/0. Weight: 1.4 kg. Special order.

DR537940

End Cap 15/0. Weight: 1.6 kg. Special order.

DR537950

End Cap 20/0. Weight: 1.8 kg. Special order.

DR538410

Cap Outlet 0/0. Weight: 1 kg.

DR538420

Cap Outlet 5/0. Weight: 1.2 kg. Special order.

DR538430

Cap Outlet 10/0. Weight: 1.4 kg. Special order.

DR538440

Cap Outlet 15/0. Weight: 1.6 kg. Special order.

DR538450

Cap Outlet 20/0. Weight: 1.8 kg. Special order.

Outfall

DR538510

Side outfall. Weight: 137 kg.

DR538520

End outfall. Weight: 101 kg. Special order.

Product Options

Grating:

  • Size (w x l): 160 x 500 mm.
  • All gratings are manufactured from cast iron.

Constant depth channel:

  • Width: 160 mm.
  • Invert width: 100 mm.

Channel transition:

  • Transition channels increase drainage discharge capacity by improving flow rates and thereby increasing the overall discharge capacity of the system.
  • Size (w x l): 160 x 1000 mm.
  • Invert width: 100 mm.
