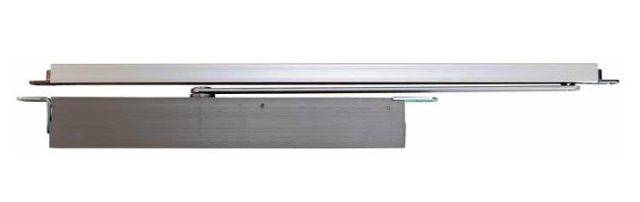

Double Action Concealed Door Closer

Third party certifications:
  • Certifire Certificate

    Certificate type

Hafele UK Ltd

Double action concealed door closer for doors to 1400 mm wide.

Jump to:
+44 (0)800 171 2907 www.hafele.co.uk
Description

Concealed fixing, cam action door closer with concealed guide rail arm. Suitable for doors up to 1400 mm wide.

General information
Features

Closing force adjustable

Adjustable closing speed

Adjustable backcheck

Adjustable latching speed

Opening angle (max): 120 º

Tested and approved to BS EN 1154: 1997

Tested to conform with CE requirements

Finish

Electro-plated silver

Uniclass 2015
Pr_30_36_59_15 Controlled door closersPrimary
Specification data - Controlled door closers
Product Reference

Double Action Concealed Door Closer

Type

931.14.369

Power size 2–4, non hold open.

931.14.379

Power size 3–6, non hold open.

931.14.459

Power size 2–4, hold open.

931.14.479

Power size 3–6, hold open.

931.14.469

Power size 2–4, non hold open, 60 minutes fire resistance.

931.14.489

Power size 3–6, non hold open, 60 minutes fire resistance.

As schedule ___

Power size

2

3

4

5

6

Standard product features

Features:

  • Closing force adjustable.
  • Adjustable closing speed.
  • Adjustable backcheck.
  • Adjustable latching speed.
  • Opening angle (max): 120 º.
  • Tested and approved to BS EN 1154: 1997.
  • Tested to conform with CE requirements.

Materials:

  • Aluminium body and guide rail.
  • Carbon steel arm.

Finish:

Electro-plated silver.

Product Options

Dimensions:

– Power size 2–4:

  • Size (l x d x h): 266 x 32 x 45 mm.
  • Door thickness (minimum): 40 mm.

– Power size 3–6:

  • Size: (l x d x h): 300 x 40 x 54 mm.
  • Door thickness (minimum): 50 mm.

Power size:

  • 2: Door width (maximum): 850 mm; closing moments (minimum): 13 Nm.
  • 3: Door width (maximum): 950 mm; closing moments (minimum): 18 Nm.
  • 4: Door width (maximum): 1100 mm; closing moments (minimum): 26 Nm.
  • 5: Door width (maximum): 1400 mm, closing moments (minimum): 37 Nm.
  • 6: Door width (maximum): 1400 mm, closing moments (minimum): 54 Nm.

Third party certifications
  • CF242 : 60 minutes
