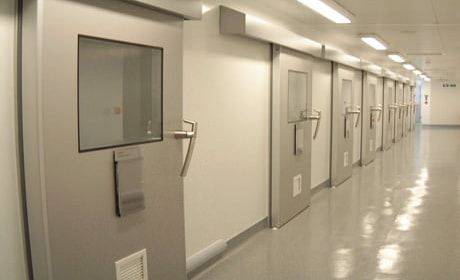

Dortek Hermetic Sealing Sliding Fire Doors
Application

  • Pharmaceutical facilities.
  • Operating theatres.
  • Laboratories.
  • Intensive care units.
  • Hospitals.

Description

Dortek hermetic fire doors are designed to provide fire protection and air control in conditioned areas.

The door has a unique patented track system which enables it to seal perfectly when closed, helping to reduce air handling costs, cross contamination and wound infections. Air leakage has been tested independently and results up to 400 Pa pressure are available.

A flush seamless surface with an attractive finish which is easy to keep clean. Free from ledges and gaps to eliminate breeding grounds for bacteria. These doors make optimal use of room space and cause less accidents when opening and closing.

Features:

  • Controls air leakage.
  • Lower air handling costs.
  • Reduces cross contamination.
  • Smooth hygienic surface.
  • Safe reliable, low maintenance.
  • No floor track required.
  • Good sound reduction creates quiet working environment.
  • Fire resistant up to one hour.

Applications:

  • Pharmaceutical facilities.
  • Operating theatres.
  • Laboratories.
  • Intensive care units.
  • Hospitals.

General information
Features

Controls air leakage

Lower air handling costs

Reduces cross contamination

Smooth hygienic surface

Safe reliable, low maintenance

No floor track required

Good sound reduction creates quiet working environment

Fire resistant up to one hour

Finish

Hard plastic laminate

Material

60 mm thick with a 1 mm thick hard plastic laminate facing on 5 mm thick board and a 48 mm thick core. Framed in anodized aluminium profiles

Uniclass 2015
Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS

L20/60 Doors

L20/520 Sliding doors

L20/490 Automatic doors

Specification data - Sliding door and partition sets
Product Reference

Dortek Hermetic Sealing Sliding Fire Doors

Fire resistance

30 minutes

60 minutes

Operation -
Type

Automated with two infra-red detectors

Automated with two push buttons

Automated with two touchless sensors

Battery back-up

Not required

Required

Colour

Formica colour range

Insert requirement.

Vision panels

300 x 600 mm

400 x 400 mm

600 x 600 mm

Canopy

Aluminium with sloping top

Stainless steel with sloping top

Steel, polyester powder coated white with sloping top

Handles

Stainless steel D handle and flush grip

Stainless steel lever handle both sides

Standard product features

Door leaf:

- Material:

60 mm thick with a 1 mm thick hard plastic laminate facing on 5 mm thick board and a 48 mm thick core. Framed in anodized aluminium profiles.

- Finish:

Hard plastic laminate.

Door frame:

Stainless steel.

Track:

Anodized aluminium rail system with nylon bearings.

Guide:

Internal bottom track with nylon guide.

Product Options

Operation:

Automated doors include a micro-processor controlled safety photo-cell with in-built safety sensor to open the door if obstructed.

Interlocking systems available. Other methods of actuation available - contact manufacturer.
